FEATURES
Product Name Female,Vertical,60PIN Selected by c
|
Product Name |
Female,Vertical,60PIN |
Selected by customer |
JYF-60XXVT-00N
|
|
|
Quantity of Pin hole in the housing is 60,30PIN at A row & B row, Customer could choose the number and the position of contacts, A&B row has 1-30 Pins from left to right, The distance between two rows contact tail is 5.08mm
|
||||
Product Application
Contact Pitch is 2.54mm, contact tail: through hole, mating with 1.60±0.20mm thickness PCB gold finger, used in the PCB connection of communications equipment, precision instrument，computer etc.
Work environment
Operating Temperature ：-55℃~+125℃（Include 40℃ temperature rise）
Relative Humidity ：40℃，90-95%
Air pressure ：40KPa
Shock： Acceleration300m/ s²
Mian Technical Parameters
Rated Current：3A（20℃）
Contact Resistance：≤25mΩ
lnsulation Resistance：≥1000MΩ
Voltage Rating ：300V AC
Withstand Voltage：750V
Mechanical Life：500 times
Insertion Force Per Pin ≤2N withdraw force Per PIN≥1.2N

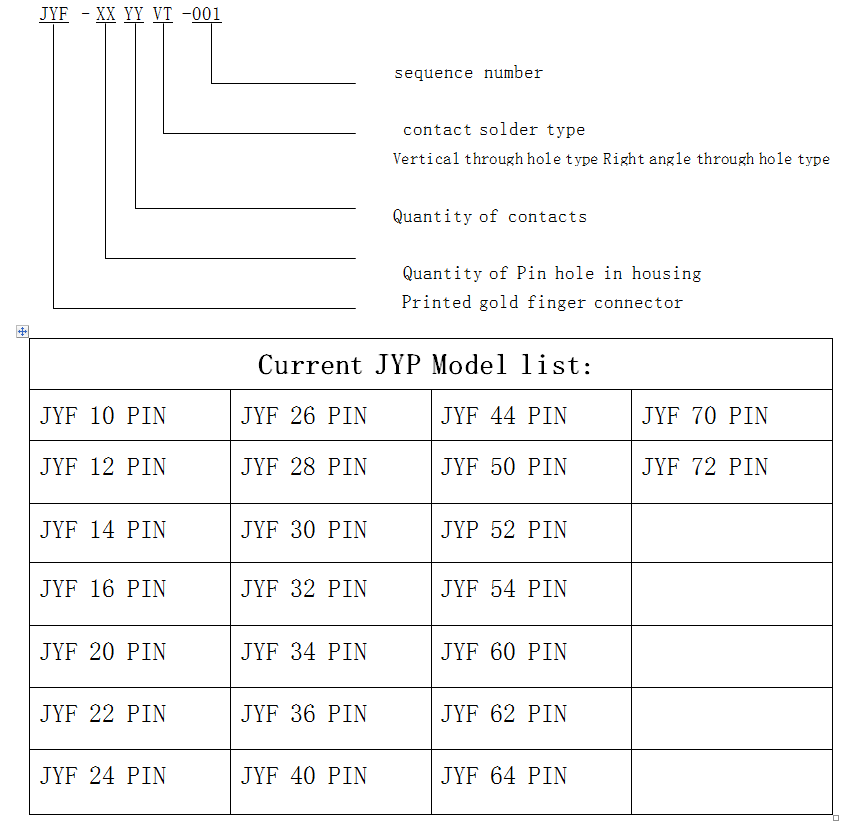

Part Number System
