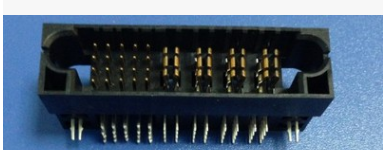

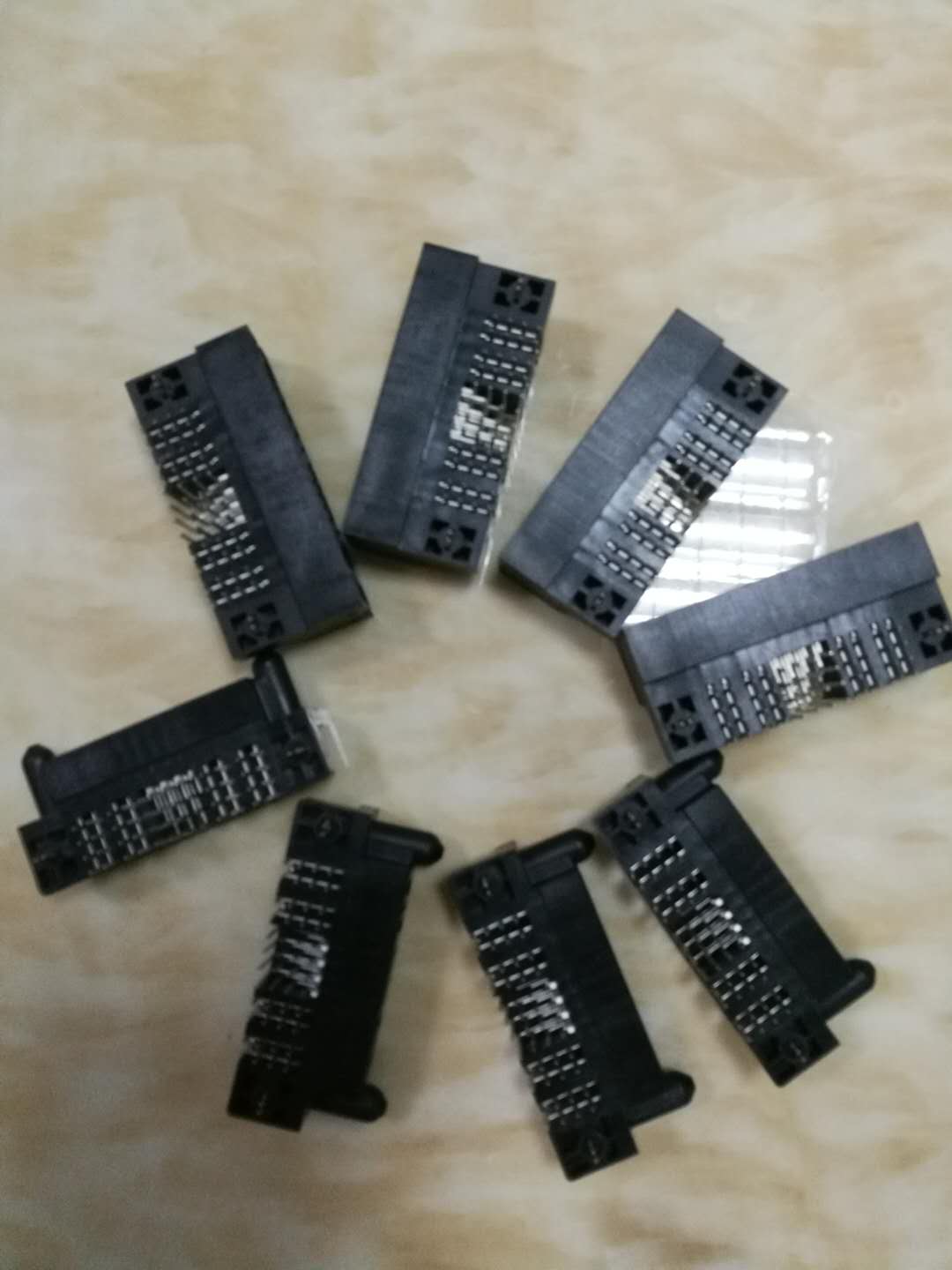

Powerblade connector: 8P +4SFemale: VerticalMale: Right anglePower pin's current: 40A/pinSignal pin's current: 2.5A/pin
Product Application
JYP series connector application area are tele. communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc.
workingh environment
Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising）
Relative Humidity：40℃时，95%
Vibration： 20~500Hz， 490m/s²
Shock： Acceleration 490m/ s²
Electri Performance
|
Contact Specification |
Contact Resistance （mΩ） |
Rated Current （A） |
Voltage Rating （V） |
Withstand Voltage |
lnsulation Resistance |
|
500VDC/1Min |
500VDC/1Min |
||||
|
Signal contacts （2.54mm pitch） Signal contact (2.54mm Pitch) |
≤20mΩ |
Below 25 pcs,2.5A/pin |
50V |
1000V |
≥2000MΩ |
|
25-48 pcs,1.5A/pin |
|||||
|
Over 48pcs,1A/pin |
|||||
|
Power contacts (5.08mm Pitch) |
≤2mΩ |
40A |
250V |
2500V |
≥2000MΩ |
|
Power contact (6.35mm Pitch) |
250V |
2500V |
|||
|
Power contact (7.62mm Pitch) |
300V |
2500V |
|||
|
Power contact (9.525mm Pitch) |
300V |
2500V |
Technical Performance
|
Contact Type |
Contact stability |
Single contact insertion force |
Single contact withdraw force |
|
Signal contact |
≥10N |
≤1N |
≥0.2N |
|
Power contact |
≥30N |
≤5N |
≥2.2N |
Mechanical Life :250 times
Product Application
JYP series connector application area are tele. communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc.
workingh environment
Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising）
Relative Humidity：40℃时，95%
Vibration： 20~500Hz， 490m/s²
Shock： Acceleration 490m/ s²
Electri Performance
|
Contact Specification |
Contact Resistance （mΩ） |
Rated Current （A） |
Voltage Rating （V） |
Withstand Voltage |
lnsulation Resistance |
|
500VDC/1Min |
500VDC/1Min |
||||
|
Signal contacts （2.54mm pitch） Signal contact (2.54mm Pitch) |
≤20mΩ |
Below 25 pcs,2.5A/pin |
50V |
1000V |
≥2000MΩ |
|
25-48 pcs,1.5A/pin |
|||||
|
Over 48pcs,1A/pin |
|||||
|
Power contacts (5.08mm Pitch) |
≤2mΩ |
40A |
250V |
2500V |
≥2000MΩ |
|
Power contact (6.35mm Pitch) |
250V |
2500V |
|||
|
Power contact (7.62mm Pitch) |
300V |
2500V |
|||
|
Power contact (9.525mm Pitch) |
300V |
2500V |
Technical Performance
|
Contact Type |
Contact stability |
Single contact insertion force |
Single contact withdraw force |
|
Signal contact |
≥10N |
≤1N |
≥0.2N |
|
Power contact |
≥30N |
≤5N |
≥2.2N |
Mechanical Life :250 times
Product Application
JYP series connector application area are tele. communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc.
workingh environment
Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising）
Relative Humidity：40℃时，95%
Vibration： 20~500Hz， 490m/s²
Shock： Acceleration 490m/ s²
Electri Performance
|
Contact Specification |
Contact Resistance （mΩ） |
Rated Current （A） |
Voltage Rating （V） |
Withstand Voltage |
lnsulation Resistance |
|
500VDC/1Min |
500VDC/1Min |
||||
|
Signal contacts （2.54mm pitch） Signal contact (2.54mm Pitch) |
≤20mΩ |
Below 25 pcs,2.5A/pin |
50V |
1000V |
≥2000MΩ |
|
25-48 pcs,1.5A/pin |
|||||
|
Over 48pcs,1A/pin |
|||||
|
Power contacts (5.08mm Pitch) |
≤2mΩ |
40A |
250V |
2500V |
≥2000MΩ |
|
Power contact (6.35mm Pitch) |
250V |
2500V |
|||
|
Power contact (7.62mm Pitch) |
300V |
2500V |
|||
|
Power contact (9.525mm Pitch) |
300V |
2500V |
Technical Performance
|
Contact Type |
Contact stability |
Single contact insertion force |
Single contact withdraw force |
|
Signal contact |
≥10N |
≤1N |
≥0.2N |
|
Power contact |
≥30N |
≤5N |
≥2.2N |
Mechanical Life :250 times
