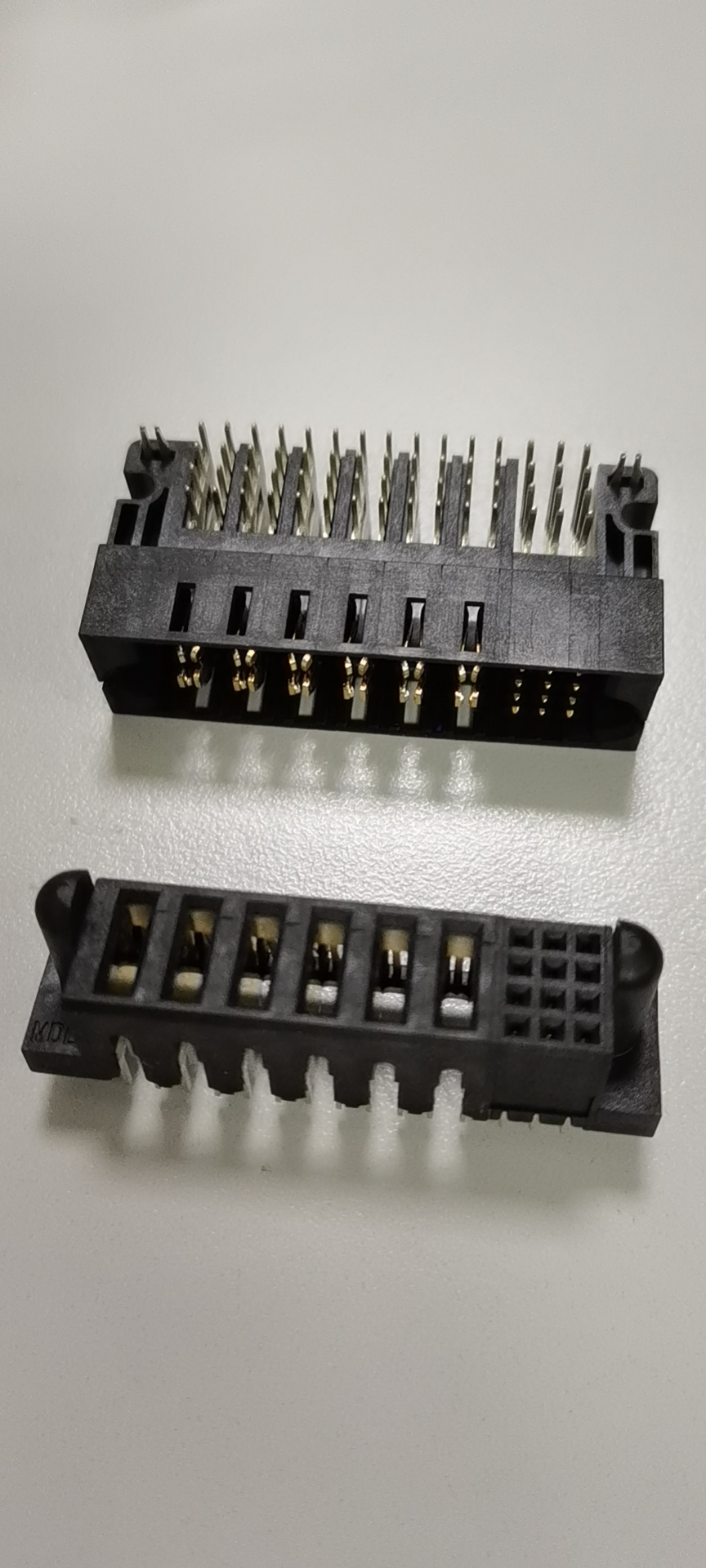

Powerblade Plus (P+) Powerblade connector JYPP-F1206S-VT01R   JYPP-M1206S-RT01R
  • Powerblade Plus (P+) Powerblade connector JYPP-F1206S-VT01R   JYPP-M1206S-RT01R
Powerblade Plus (P+) Powerblade connector JYPP-F1206S-VT01R JYPP-M1206S-RT01R

MDL power blade plus 12S+ 6P
signal pin: 3A/pin
power pin: 50A~75A per pin


MDL JYP Plus Series Power Module Connector

Product Introduction

JYPP Series power connector have spring contact, it is integration, small size, high power current conduction capability, contact smoothly, mate with guide position, high connect stabilization. The contact is high performance copper alloy, gold plated at mating area. Housing is high heat-resisting thermoplastic, glass filled, UL94-V0, Black. The contacts include power contact and signal contact, The distance of power contacts is 5.08mm, 6.35mm, 7.62mm, The quantity and sequence of the power and signal contacts could be ranged by the customer, at the same outer size of the connector. JYPP series power connector could interchange with FCI PowerBlade Plus series, TYCO Multi-Beam XLE series connector.
Hot Tags: board to board connector,power connector,round connector
Tags: About MEDLONmore connector products



Product Application

      JYPP series connector application area is digital communication, internet network etc., It is used in the connection of PCB to PCB of Power module, server, UPS, storage, communication device.



Environment Performance



Working Temperature-40~+125

Relative  Humidity40℃时,95%



Electric Performance



Contact Specification

Contact Resistance

mΩ)

Rated Current

A

Voltage Rating

AC/DC

Withstand Voltage

lnsulation Resistance

2.54mm中心距)

Signal contact

(2.54mm Pitch)

20mΩ

Each PIN 3A

3A Single Contact

88/124V

1000V









1000MΩ

Below 25 pin 3A

Below 25 PINs

25-48 pin 1A

PIN No. between

25-48

5.08mm

Power contact

(5.08mm Pitch)

10-20mΩ

75A Max.

295/417V

2500V

1000MΩ

6.35mm

Power contact

(6.35mm Pitch)

466/659V

7.62mm

Power contact

(7.62mm Pitch)

645/912V





Mechanical  Performance



Mating/Unmating Force The force to mate/unmate a receptacle and compatible plug



Mating/unmating force

Each power Contact

Each Signal contacts

Remarks

Mating force (Max.)

5N

1N

Unmating force (Min.)

2.2N

0.2N



The following detail shall apply:



1, Mating head speed – 12.7mm / minute

2 Lubrication – None

3,Reference EIA-364-13



Durability: 500 times



1,Maximum cycling rate:500 cycles per hour

2, Test reference EIA-364-09
