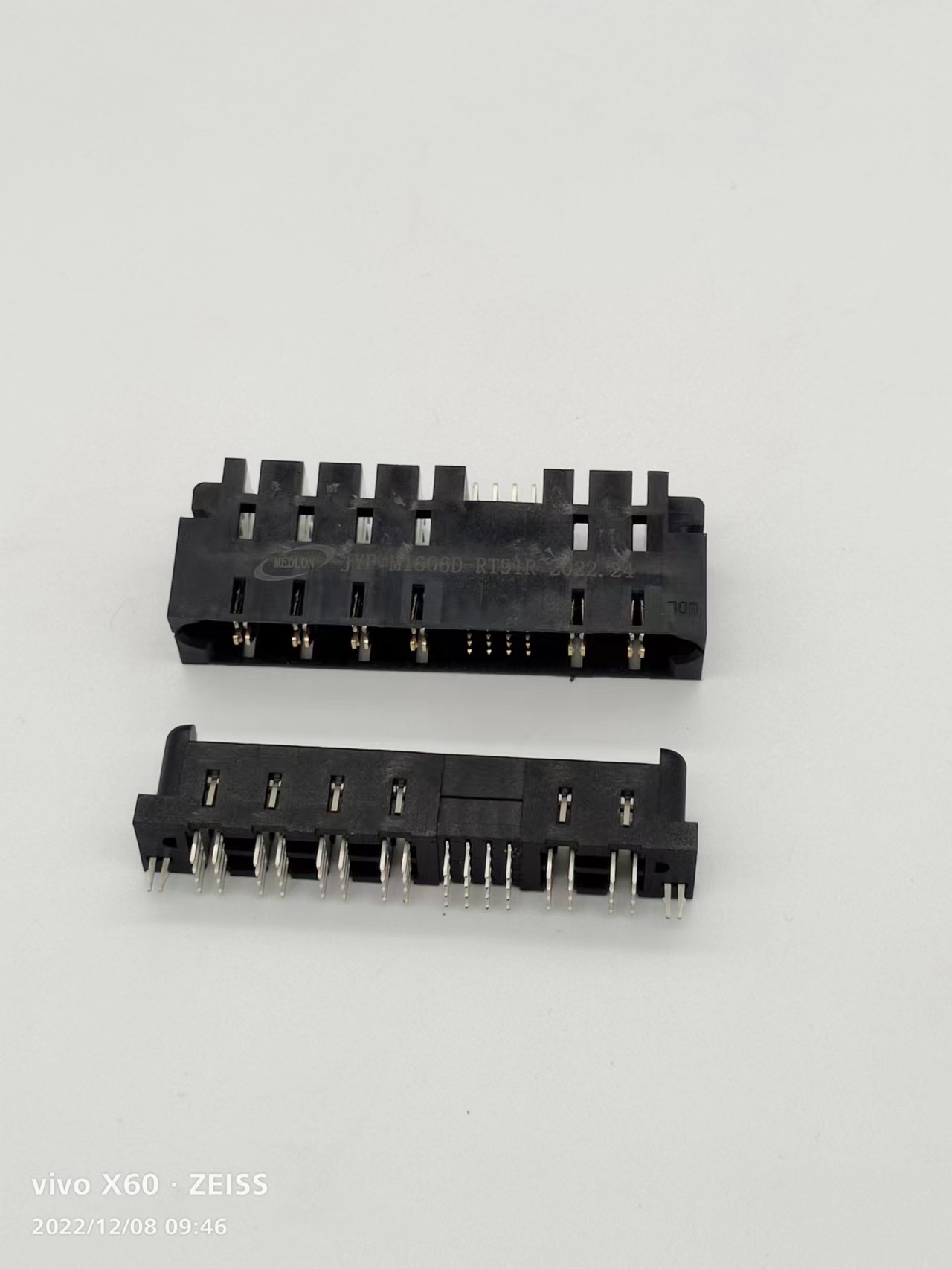

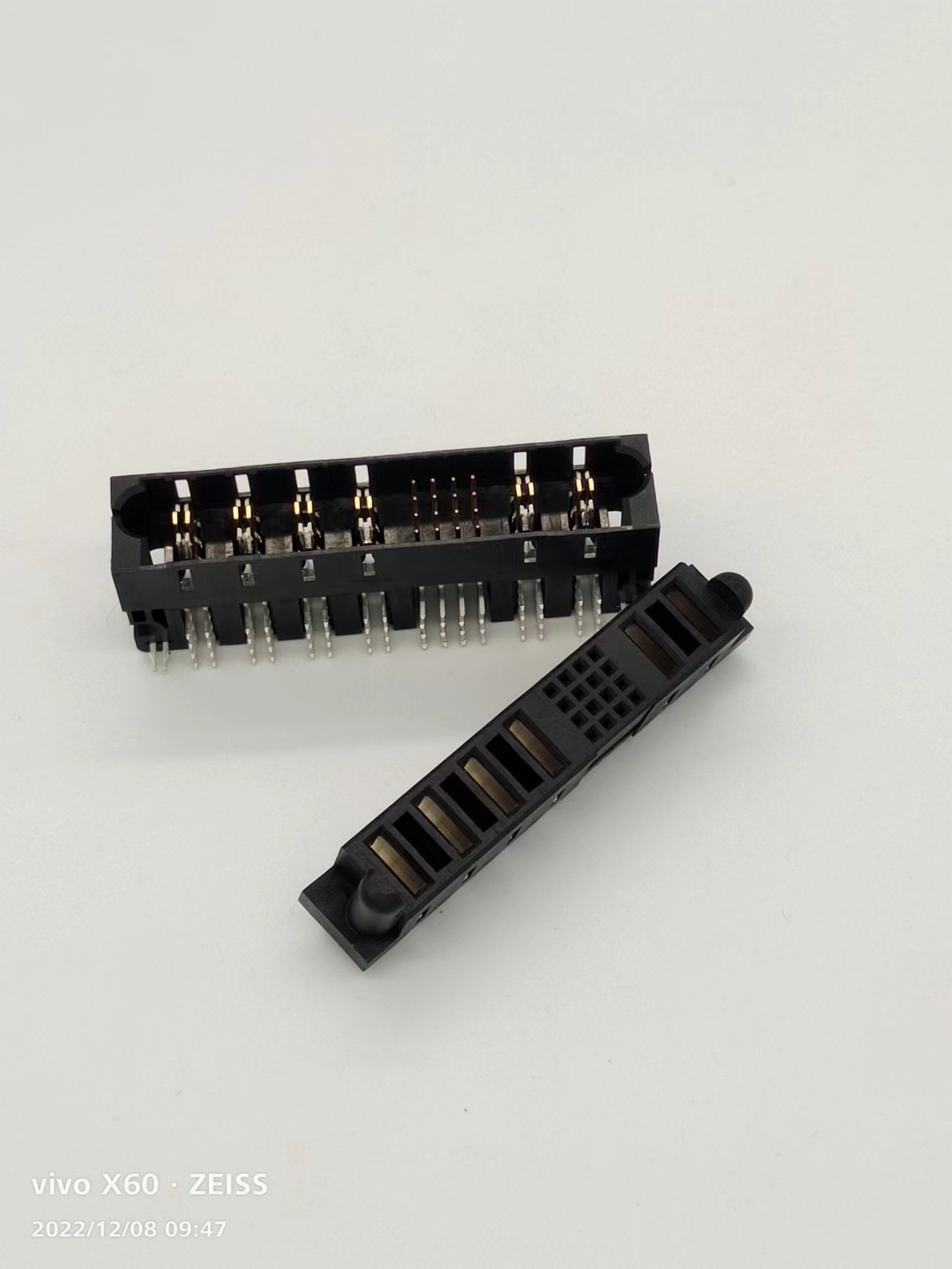

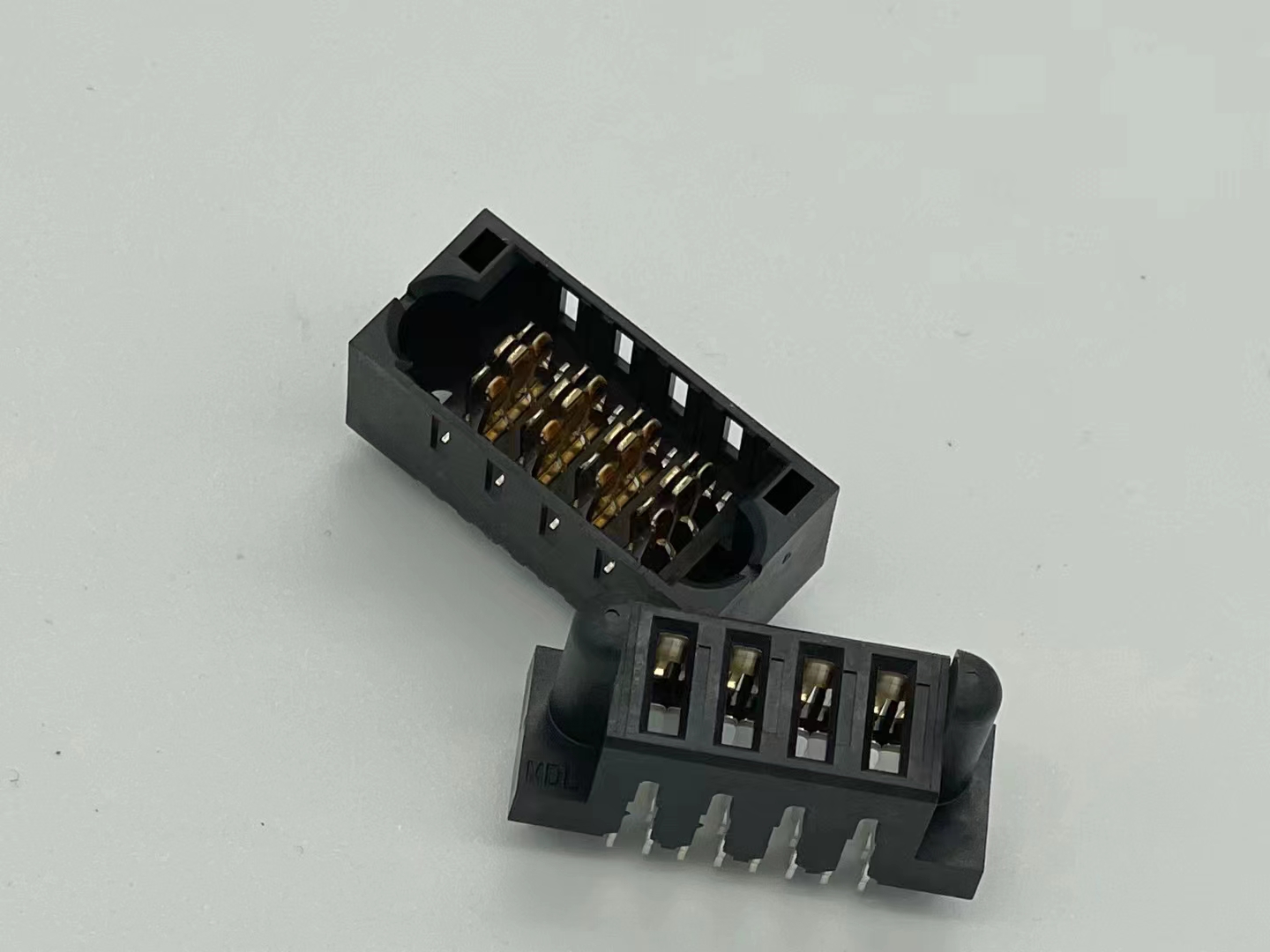

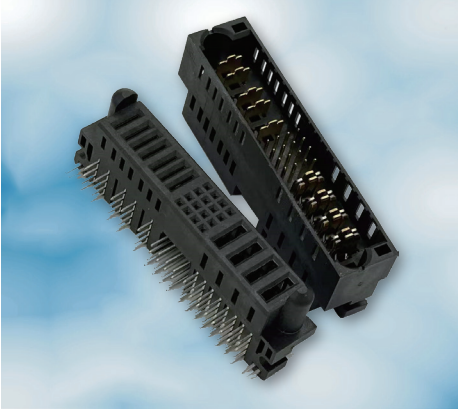

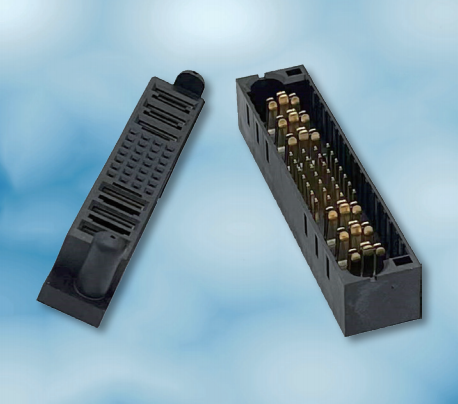

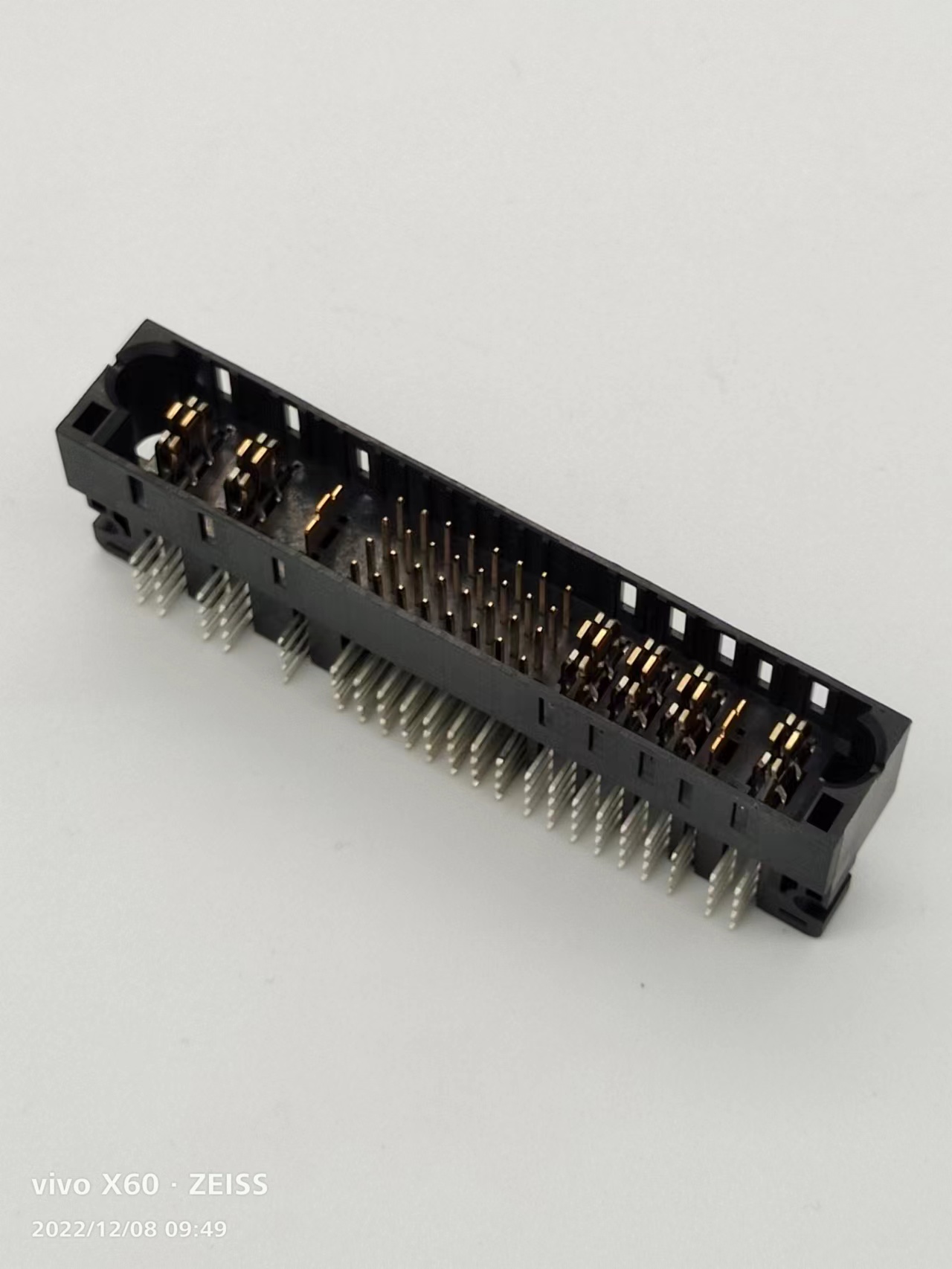

MDL power blade plus Medlon Powerblade Plus (P+) Powerblade connector JYP-F1611S-RT91R(P+,4HP+16S+7LP)JYP-M1611S-RT91R(P+,4HP+16S+7LP)
signal pin: 3A/pin
power pin: 50A~75A per pin per contact, at 30°C temperature rise in still air;
 Cost-effective power delivery in 1U and 2U power supplies or power distribution applications;
 Low power contact option up to 40A per contact, at 30°C temperature rise in still air;
 Supports applications with multiple voltages and lower power requirements;
 Highly vented housing design;
 Maximizes heat dissipation for effective system cooling;
 Half-bullet guides;
 Reduced connector footprint;
 Large operating temperature range from -40°C to +125°C;
 Suitable for extreme environments;
 Right angle and coplanar options available with both power and signal contacts;
 Aids power distribution and power control;
 Number and placement of power and signal contacts;
 Highly configurable for custom power needs;
 Solder or press-fit tails are available;
 Enhanced termination flexibility;
Our medlon will learn from Amphenol.
Amphenol is the leader in high-speed, high-density connection systems, designing and manufacturing the industry's leading connectors and backplane systems. Amphenol solves system design challenges with integrated interconnect solutions for applications in the networking, communications, storage, and computer server markets.
As bandwidth demands increase, the challenge is to balance greater performance requirements with lower overall system costs. Our unique combination of in-depth system expertise and broad spectrum of high-performance interconnect backplane products helps meet this challenge head on with real world solutions. Early in the design cycle, Amphenol helps customers understand important design trade-offs with integrated backplane system solutions that meet increasing bandwidth needs by optimizing the entire signal transmission path and boosting channel performance.
Amphenol's broad range of products enable design engineers to achieve their performance targets. Whether the priority is a proven cost-optimized solution or the best performing backplane connector on the market, Amphenol is your source for reliable high-speed and high-density connectors.
