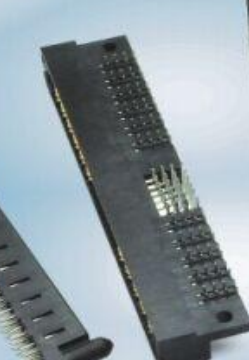

Powerblade connector: 51939-669LF 5ACP +24S+5ACP ,right angle, solder to board 10P +24S Female: Vertical ,Male: Right angle Power pin's current: 40A/pin, Signal pin' current: 2.5A/pin MDL(MEDLON JYP-M2410D-RT45 & JYP-F2410D-VT45R)
Powerblade connector: 51939-669LF 5ACP +24S+5ACP , 24S+10P , right angle, solder to board, Female: Vertical
Male: Right angle
Power pin's current: 40A/pin
Signal pin's current: 2.5A/pin
MDL(MEDLON JYP-M2410D-RT45 & JYP-F2410D-VT45R)
Hot Tags: board to board connector,power connector,round connector
Tags: About MEDLON, more connector products
JYP series products are mainly used in power distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc.
Shenzhen Medlon Hardware Product Co.,Ltd & Dongguan Meixinlong Hardware Products Co.,Ltd was founded in 2006. It is a high-tech private enterprise that focused on desiging,manufacturing and selling connectors, such as EV AC/DC Charger, power module connector, high desity connector, and mobile phone connector. The company’s poducts are widely used in communications power supply, electric power supply , UPS power supply, server, medical , mobile phones and other fileds.
More Products
We are doing the OEM & ODM Connectors based on customers' needs
About us
Product Application
JYP series connector application area are tele. communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc.
workingh environment
Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising）
Relative Humidity：40℃时，95%
Vibration： 20~500Hz， 490m/s²
Shock： Acceleration 490m/ s²
Electri Performance
|
Contact Specification |
Contact Resistance （mΩ） |
Rated Current （A） |
Voltage Rating （V） |
Withstand Voltage |
lnsulation Resistance |
|
500VDC/1Min |
500VDC/1Min |
||||
|
Signal contacts （2.54mm pitch） Signal contact (2.54mm Pitch) |
≤20mΩ |
Below 25 pcs,2.5A/pin |
50V |
1000V |
≥2000MΩ |
|
25-48 pcs,1.5A/pin |
|||||
|
Over 48pcs,1A/pin |
|||||
|
Power contacts (5.08mm Pitch) |
≤2mΩ |
40A |
250V |
2500V |
≥2000MΩ |
|
Power contact (6.35mm Pitch) |
250V |
2500V |
|||
|
Power contact (7.62mm Pitch) |
300V |
2500V |
|||
|
Power contact (9.525mm Pitch) |
300V |
2500V |
Technical Performance
|
Contact Type |
Contact stability |
Single contact insertion force |
Single contact withdraw force |
|
Signal contact |
≥10N |
≤1N |
≥0.2N |
|
Power contact |
≥30N |
≤5N |
≥2.2N |
Mechanical Life :250 times
Product Application
JYP series connector application area are tele. communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc.
workingh environment
Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising）
Relative Humidity：40℃时，95%
Vibration： 20~500Hz， 490m/s²
Shock： Acceleration 490m/ s²
Electri Performance
|
Contact Specification |
Contact Resistance （mΩ） |
Rated Current （A） |
Voltage Rating （V） |
Withstand Voltage |
lnsulation Resistance |
|
500VDC/1Min |
500VDC/1Min |
||||
|
Signal contacts （2.54mm pitch） Signal contact (2.54mm Pitch) |
≤20mΩ |
Below 25 pcs,2.5A/pin |
50V |
1000V |
≥2000MΩ |
|
25-48 pcs,1.5A/pin |
|||||
|
Over 48pcs,1A/pin |
|||||
|
Power contacts (5.08mm Pitch) |
≤2mΩ |
40A |
250V |
2500V |
≥2000MΩ |
|
Power contact (6.35mm Pitch) |
250V |
2500V |
|||
|
Power contact (7.62mm Pitch) |
300V |
2500V |
|||
|
Power contact (9.525mm Pitch) |
300V |
2500V |
Technical Performance
|
Contact Type |
Contact stability |
Single contact insertion force |
Single contact withdraw force |
|
Signal contact |
≥10N |
≤1N |
≥0.2N |
|
Power contact |
≥30N |
≤5N |
≥2.2N |
Mechanical Life :250 times
