JDC-14Z-001 & JDC-14T-001

JDC-14Z-001 and JDC-14T-001 are cutting-edge electronic control modules engineered for precision and versatility in industrial automation. These modules offer a wide array of customizable functions, making them ideal for applications in manufacturing, robotics, and machinery automation. With their robust construction and high-performance capabilities, JDC-14Z-001 and JDC-14T-001 serve as dependable and efficient control solutions for complex industrial processes, ensuring enhanced productivity and reliability.

Φ

High current 14 Pin (8S+6P) 70A 1000V AC Drawer Type AC Charging Pile Module Connector  board to board connector

Product Information



   Main Technical Parameters

  • Product Model: JDC-14T-001 & JDC-14Z-001
  • Gender: Male and Female
  • Mechanical Life: 200 times
  • Spec: Φ5 for power, 22# for singal
  • Rated Current:  φ5  70A (6 pin for power); 3A (22# 8 pin for signal)
  • Rated Voltage : 1000V AC for power
  • Withstand Voltage: 2000V  AC (Normal), 22# 1000V AC;
  • Insulation Resistance: ≥3000MΩ (Normal)
  • Contact Resistance: ≤1mΩ for power;≤8mΩ for signal
  • Surface Finish: Plated Silver or Gold

         Materials

  • Housing Material: PET , UL94V-0, Black
  • Pin and Jack: Brass
  • Crown Spring: Beryllium bronze

      Operating Environment

  • Operating Temperature: -40 to 125℃


14 pin layout.png

JDC-14Z-001 board to board connector

JDC-14T-001 board to board connector

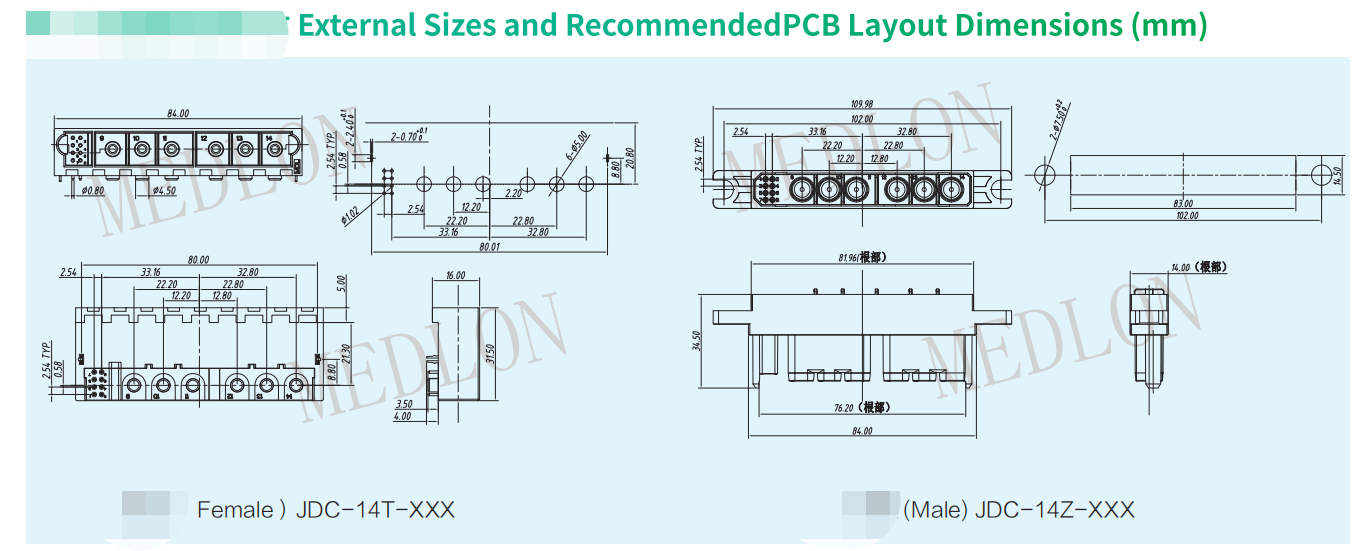

       Welcome to ask for the drawing and send your requirments



  • At present the optional terminal styles include crimping ,solder cup ,PCB tail and thread.
  • New design connectors are welcome to be ordered.

Product Application



  1. Intelligence high frequency switching power supply, communication power supply, electric power supply, railway power supply, LED power supply, 5G equimpent
  2. UPS systems/Power unit /big capacity power cabinet
  3. Contravariant power
  4. Drawer low-voltage cabinet etc.
