a100A 95A 90A 85A JDC-12Z-001/JDC-12T1-006/JDC-4Z-002/JDC-4T-005/JDC-TA-017

JDC-12Z1-001 High current connector for charging pile or rail track With CE/CB/TUV/UL certificate

JDC-12Z1-001 High current connector for charging pile or rail track With CE/CB/TUV/UL certificate

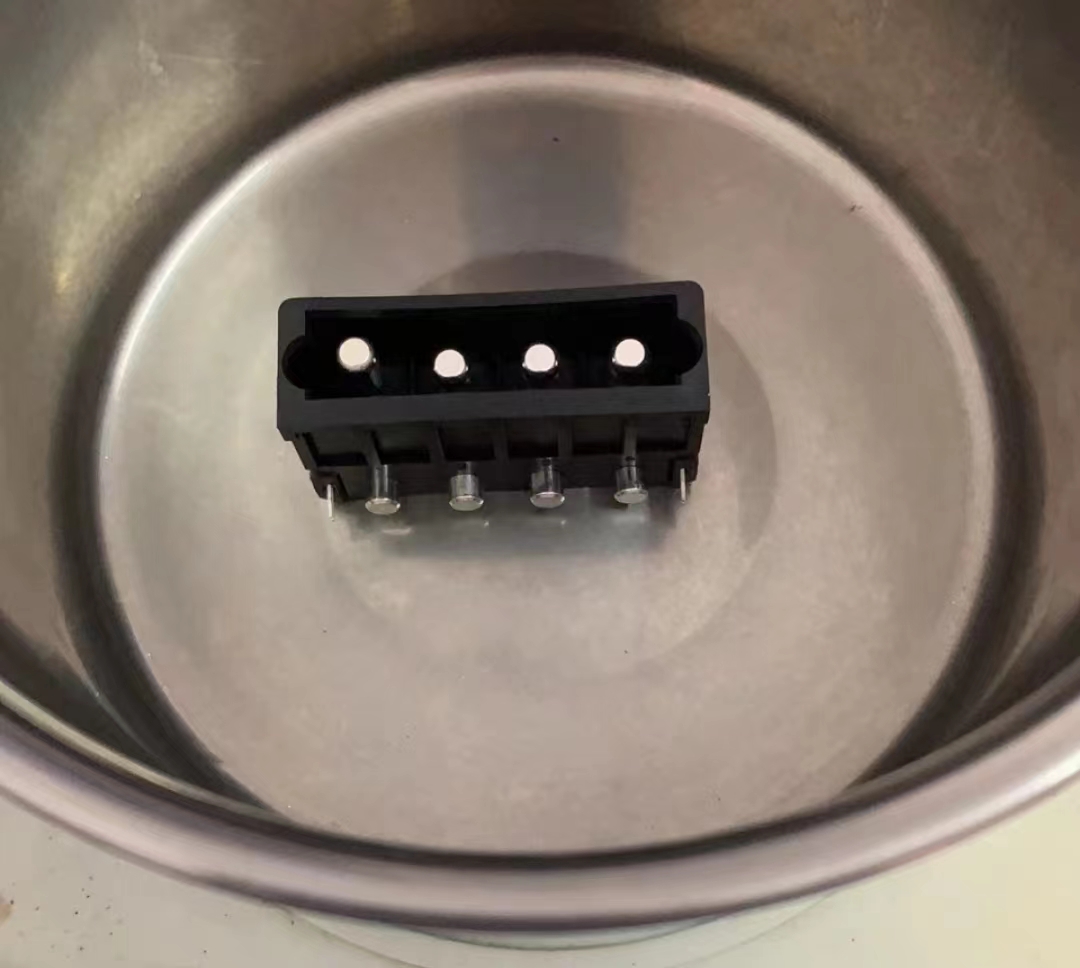

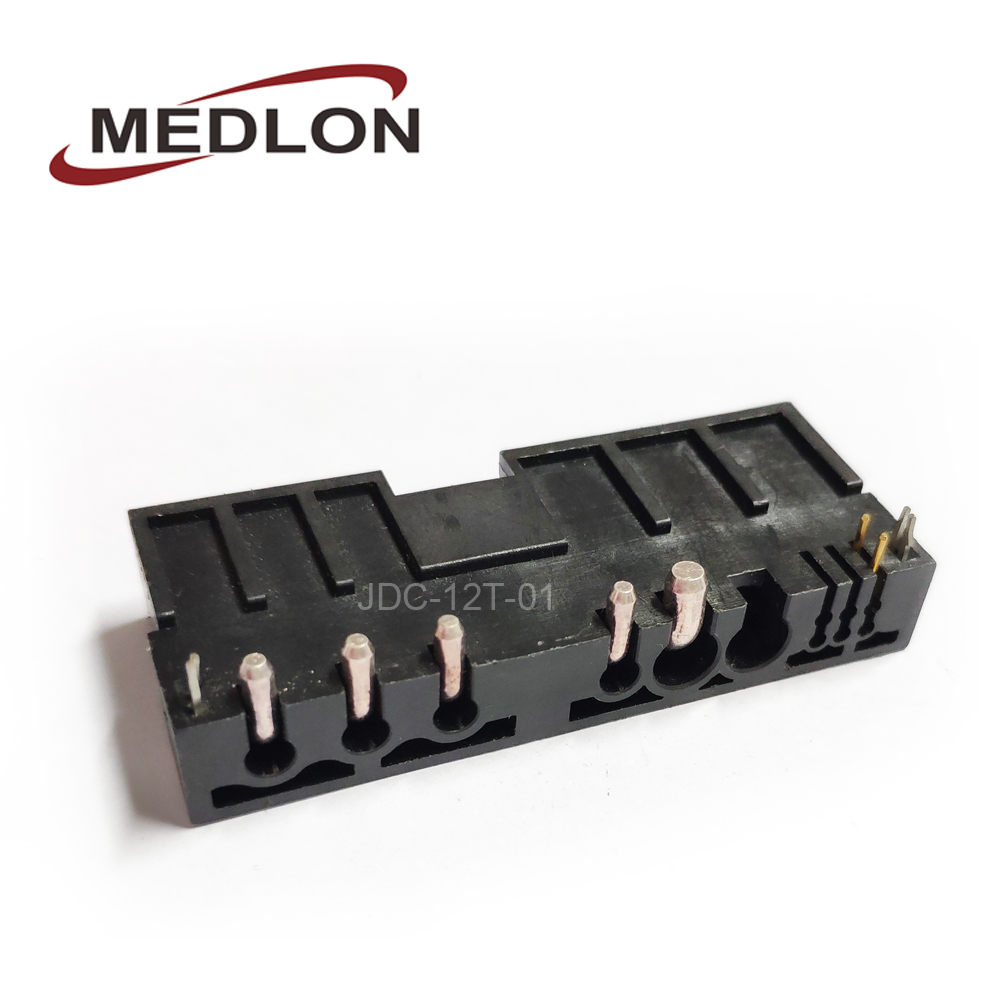

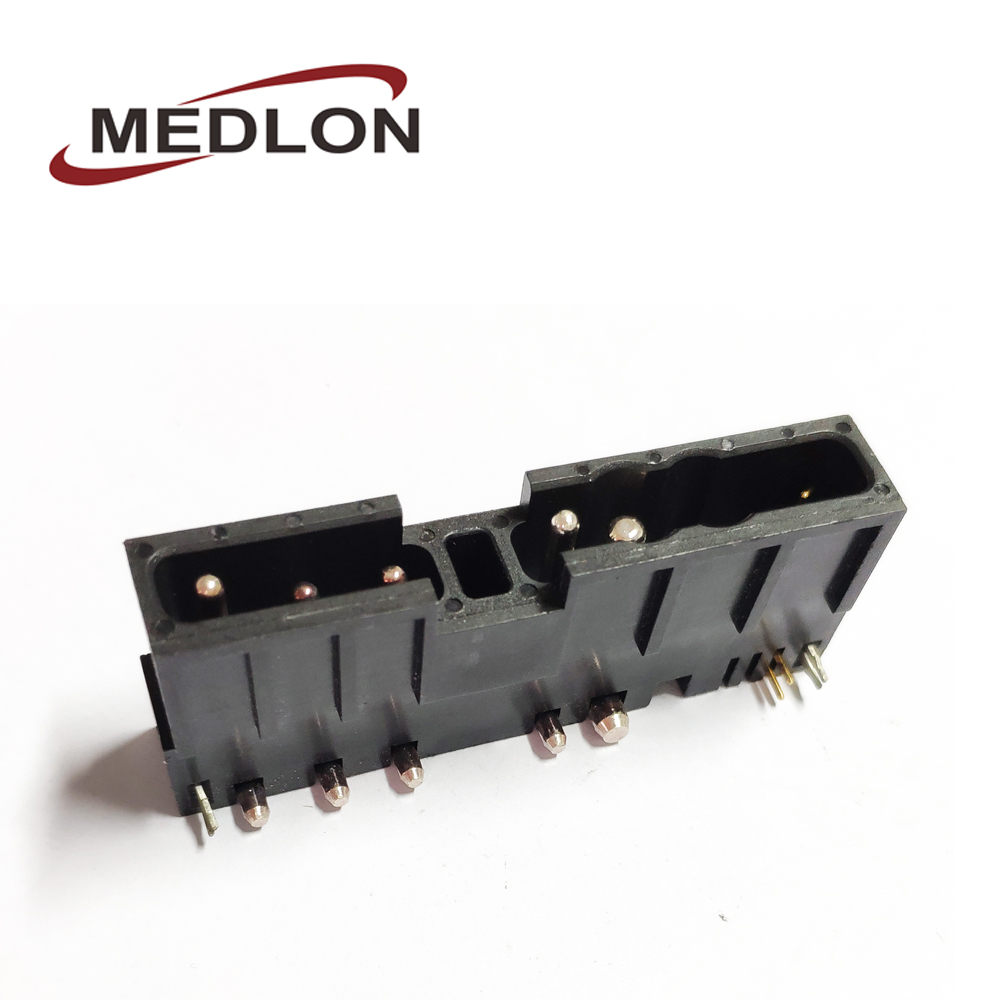

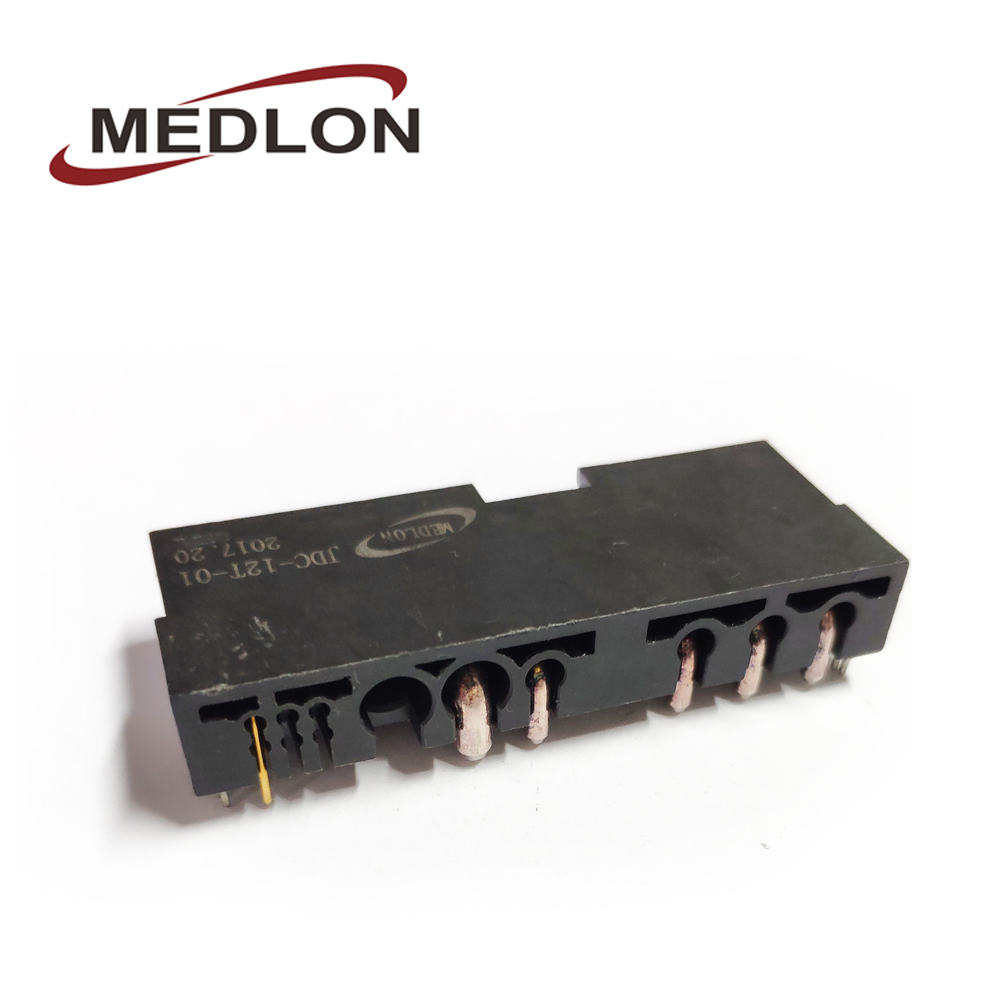

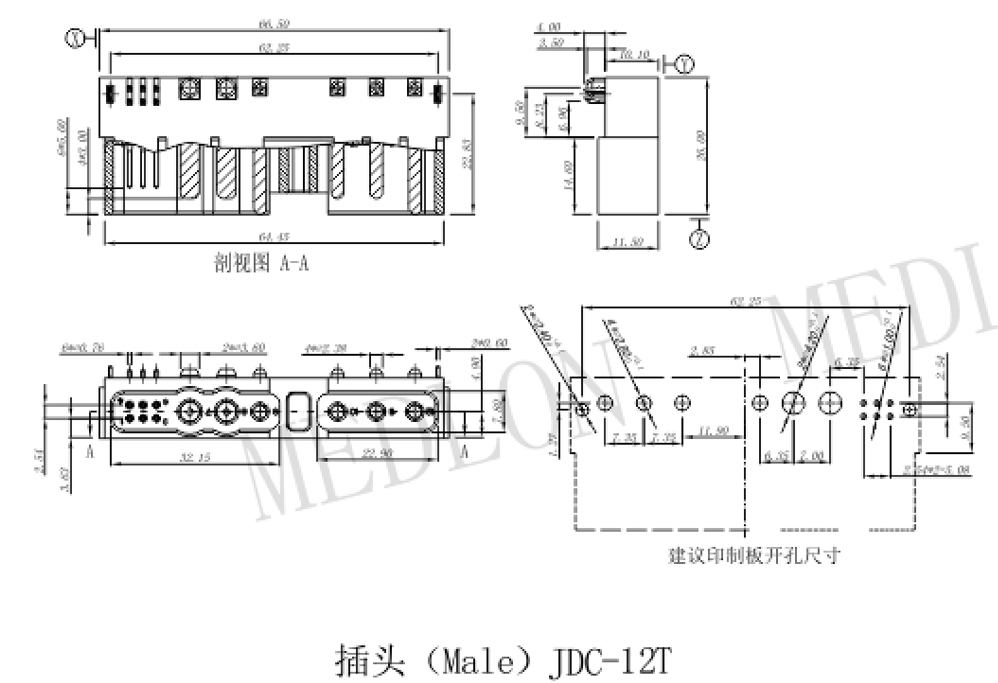

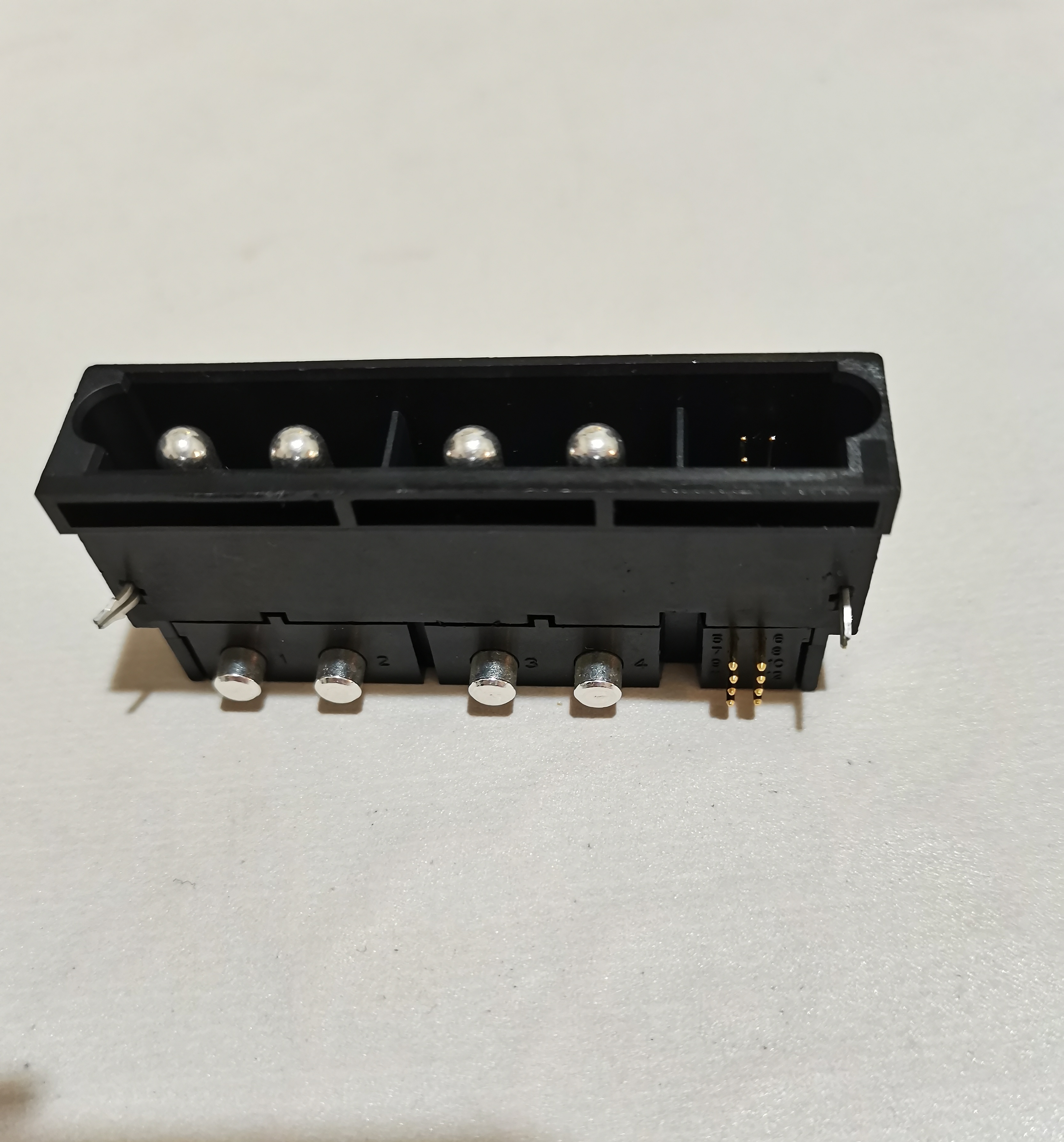

JDC-12Z-001/JDC-12T1-006/JDC-4Z-002/JDC-4T-005/JDC-TA-017 Female Connector
Technical Requirements:
1.Materials: Insulator: engineering plastic, UL94-V0, Black; φ5 PIN: copper alloy, silver plated on the surface; 22# PIN: copper alloy, gold plated on the surface;
2.Performance: Withstand voltage: φ5 contact: 1500V AC,22#contact: 500V AC; Rated current: 22# contact 3A,φ5 contact 85A; Contact impedance (initial value): 22# contact ≤ 13m Ω, φ5 contact ≤ 1m Ω; Normal state: ≥ 3000m insulation resistance; The mechanical life is 500 times;
3.Working environment: Temperature: - 40 ~ 125 ℃;
4.The products meet the latest RoHS standard;

Online Inquiry

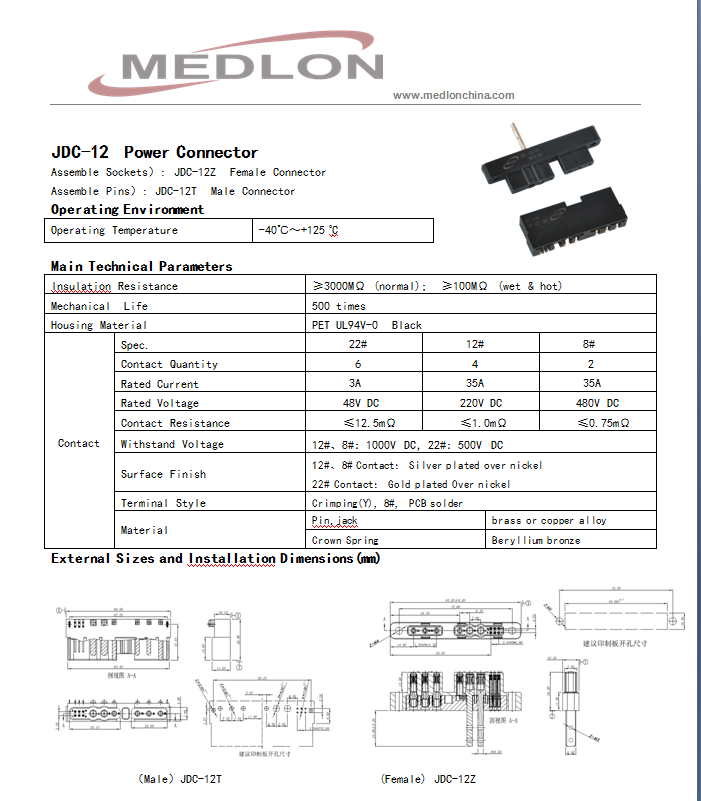

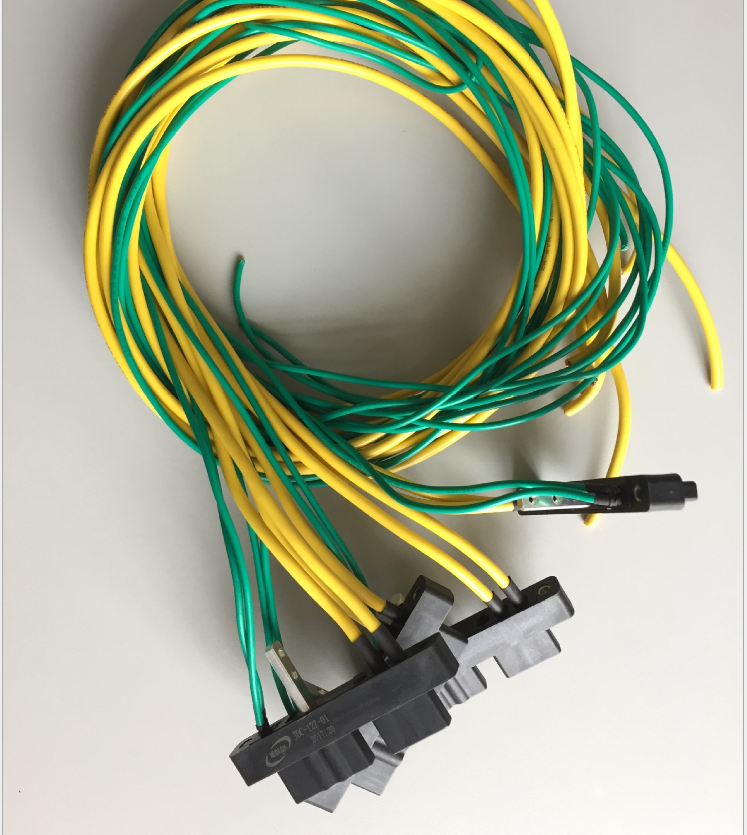

JDC series 12 Pin Connector Power Connector

Product Information

Product model		JDC-12Z-01 Female Connector
Mechanical Life		500 times
Insulation Resisitance		≥3000MΩ (normal temperature) ; ≥100MΩ (damp and hot)
Housing Material		PET UL94V-0 Black
Contact	Spec	22#		8#
	Contact Quantity	8		4
	Rated Current	3A		95A
	Rated Voltage	500V DC		480V DC
	Contact Resistance	≤13mΩ		≤1mΩ
	Withstand Voltage	500V AC	1500V DC
	Surface Finish	Gold plated over nickel	Silver plated over nickel
	Terminal Style	Sockets: Crimping (Y); 8# Socket: Screw thread ; Pins: PCB Tail(B)
	Material	Pin,Jack	Brass or copper alloy
		Crown Spring	Beryllium bronze
Working Temperature		-40℃ ~ +125℃

Product Applications

1. Intelligence high frequency switching power supply, communication power supply, electric power,railway power supply,LED power.
2. UPS systems
3. Contravariant power
4. Drawer low-voltage cabinet etc.

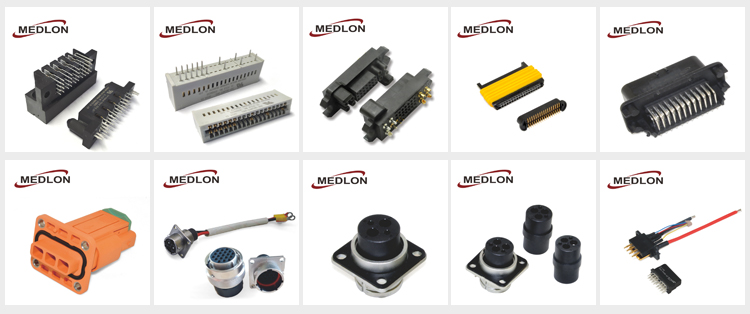

More Products

We are doing the OEM & ODM Connectors based on customers' needs

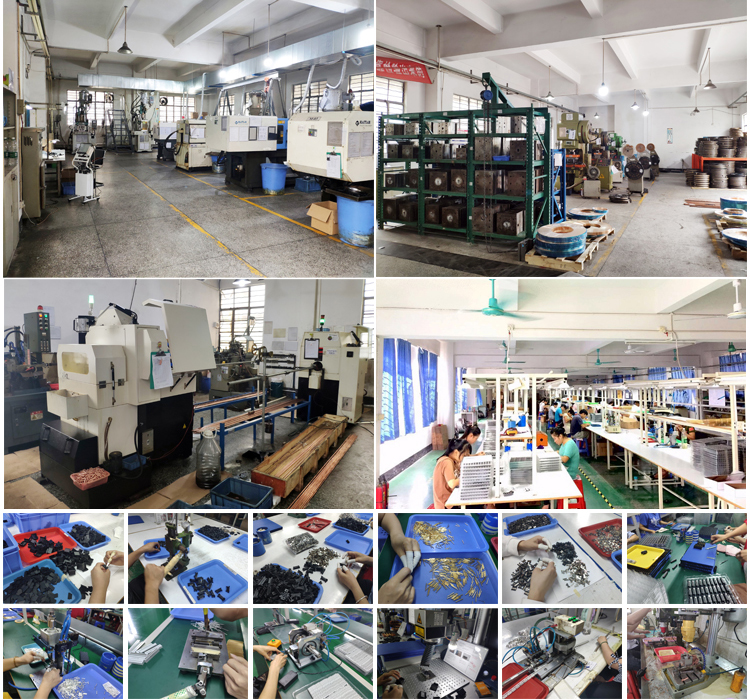

About us

Shenzhen Medlon Hardware Product Co.,Ltd & Dongguan Meixinlong Hardware Products Co.,Ltd was founded in 2006. It is a high-tech private enterprise that focused on desiging,manufacturing and selling connectors, such as EV AC/DC Charger, power module connector, high desity connector, and mobile phone connector. The company’s poducts are widely used in communications power supply, electric power supply , UPS power supply, server, medical , mobile phones and other fileds.
