JDC-4Z-002 (95A per pin) New energy charging pile connector JDC-4Z-002, 85A 4 pin drawer connectors replacement of fci connectors for chargiing pile /telecommunications/mainframe computers/server power unit
  • JDC-4Z-002 (95A per pin) New energy charging pile connector JDC-4Z-002, 85A 4 pin drawer connectors replacement of fci connectors for chargiing pile /telecommunications/mainframe computers/server power unit
  • JDC-4Z-002 (95A per pin) New energy charging pile connector JDC-4Z-002, 85A 4 pin drawer connectors replacement of fci connectors for chargiing pile /telecommunications/mainframe computers/server power unit
  • JDC-4Z-002 (95A per pin) New energy charging pile connector JDC-4Z-002, 85A 4 pin drawer connectors replacement of fci connectors for chargiing pile /telecommunications/mainframe computers/server power unit
  • JDC-4Z-002 (95A per pin) New energy charging pile connector JDC-4Z-002, 85A 4 pin drawer connectors replacement of fci connectors for chargiing pile /telecommunications/mainframe computers/server power unit
  • JDC-4Z-002 (95A per pin) New energy charging pile connector JDC-4Z-002, 85A 4 pin drawer connectors replacement of fci connectors for chargiing pile /telecommunications/mainframe computers/server power unit
  • JDC-4Z-002 (95A per pin) New energy charging pile connector JDC-4Z-002, 85A 4 pin drawer connectors replacement of fci connectors for chargiing pile /telecommunications/mainframe computers/server power unit
  • JDC-4Z-002 (95A per pin) New energy charging pile connector JDC-4Z-002, 85A 4 pin drawer connectors replacement of fci connectors for chargiing pile /telecommunications/mainframe computers/server power unit
  • JDC-4Z-002 (95A per pin) New energy charging pile connector JDC-4Z-002, 85A 4 pin drawer connectors replacement of fci connectors for chargiing pile /telecommunications/mainframe computers/server power unit
  • JDC-4Z-002 (95A per pin) New energy charging pile connector JDC-4Z-002, 85A 4 pin drawer connectors replacement of fci connectors for chargiing pile /telecommunications/mainframe computers/server power unit
  • JDC-4Z-002 (95A per pin) New energy charging pile connector JDC-4Z-002, 85A 4 pin drawer connectors replacement of fci connectors for chargiing pile /telecommunications/mainframe computers/server power unit
JDC-4Z-002 (95A per pin) New energy charging pile connector JDC-4Z-002, 85A 4 pin drawer connectors replacement of fci connectors for chargiing pile /telecommunications/mainframe computers/server power unit

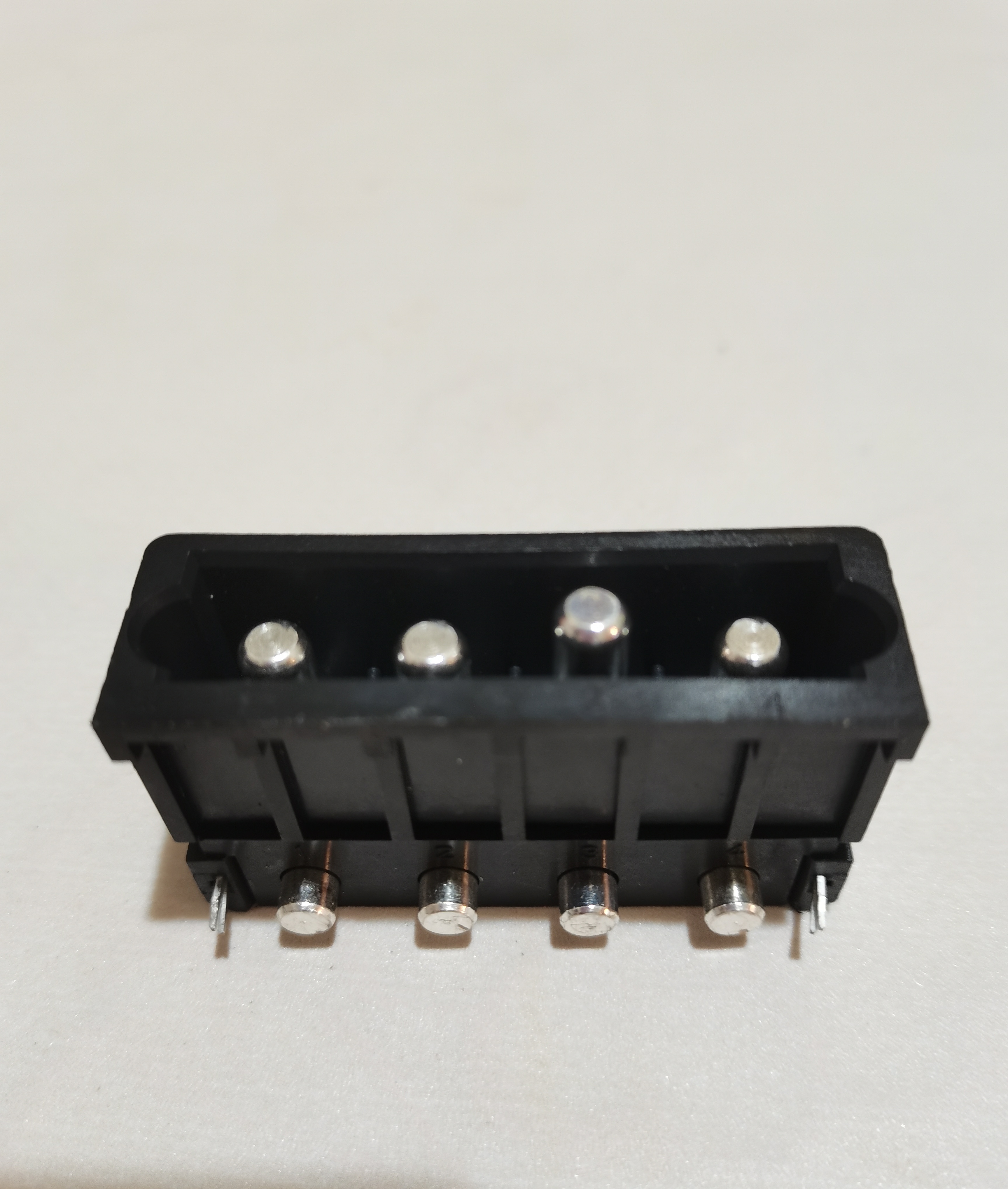

JDC- 4Z / JDC-4T   35A /45A /80A/ 95A/ female and male 4 pin module power connector
1.VOLTAGE RATING:600V DC;
2,CURRENT RATING:95A;
3.CONTACT RESISTANCE≤0.5mΩ;
4.INSULATING RESISTANCE≥3000MΩ;
5.WITHSTAND VOLTAGE:2500V AC;
6.DURABILITY: 200 CYCLES;
7. WORK TEMPERATURE: -40℃~125℃;
8. CONTACT PARTS PLATING: Ag PLATING;
9. MATED WIRE QC/T 1037-2016 16mm² ;
10.PARTS RoHS COMPLIANCE;
Applied for new energy charging pile /new energy storage area


0

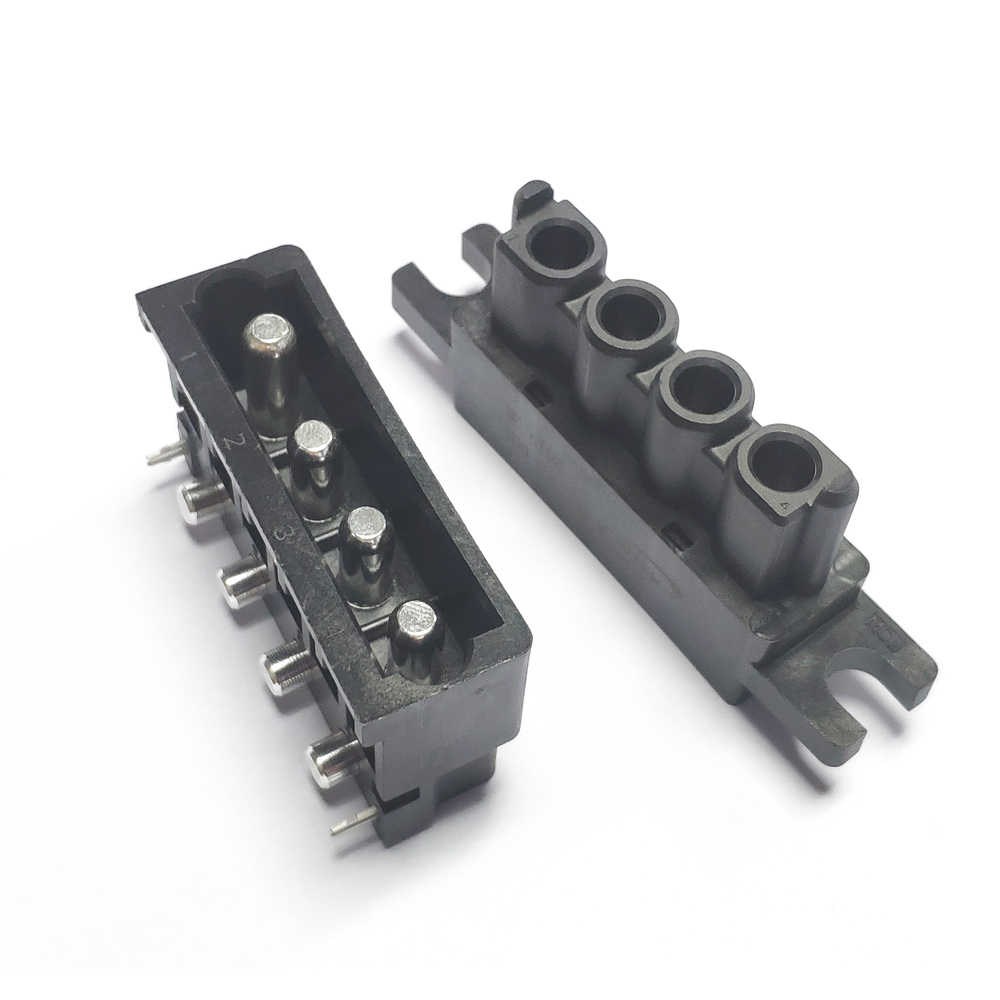

JDC series 35A 45A 80A  95female and male 4 pin module power connector

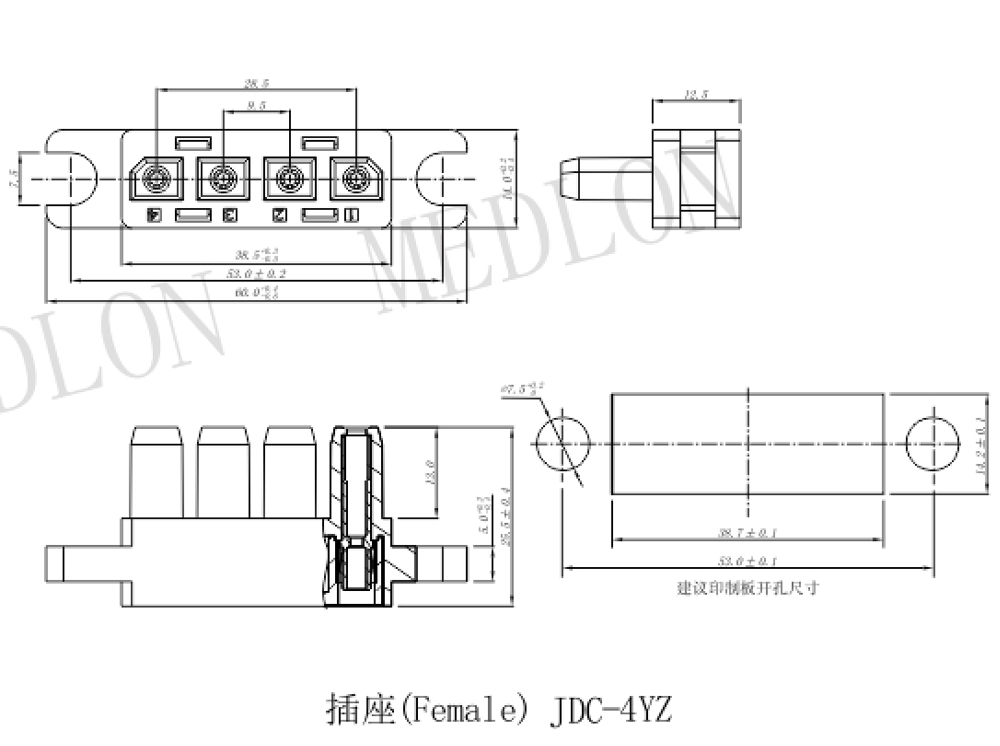

Product Information

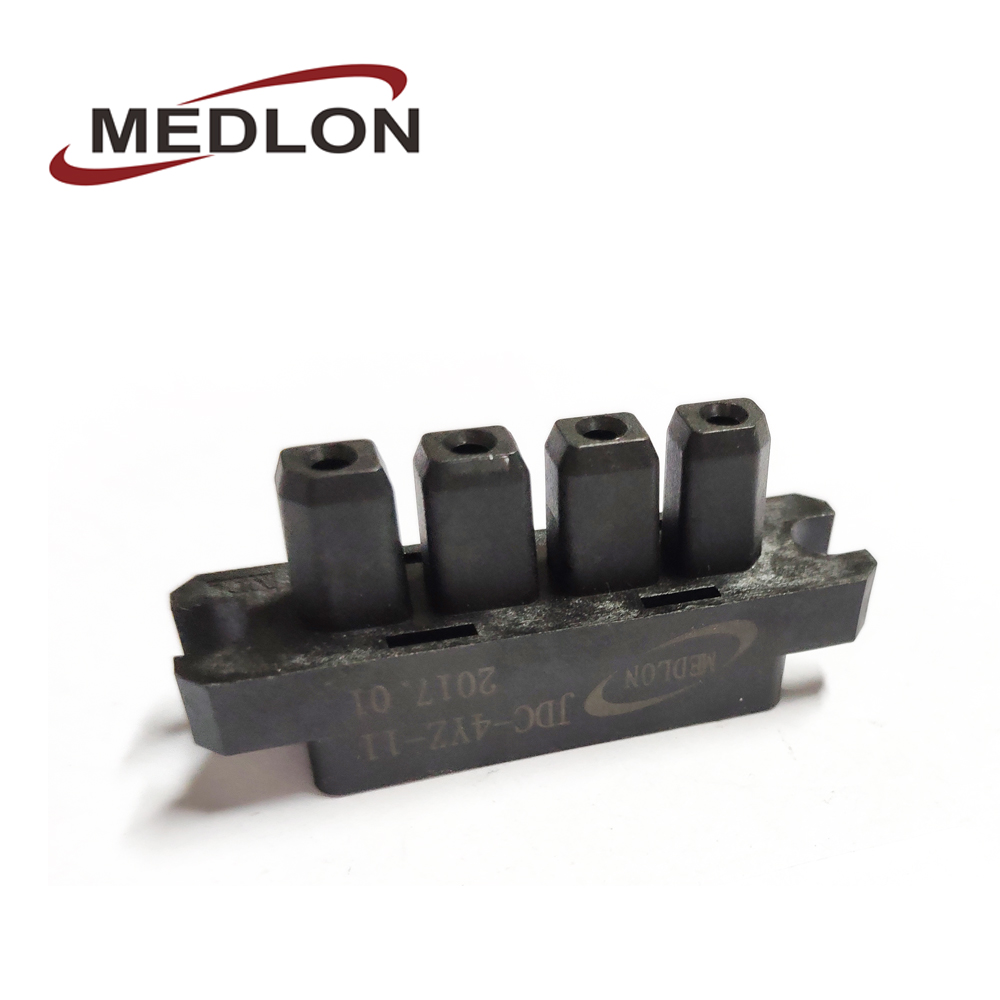

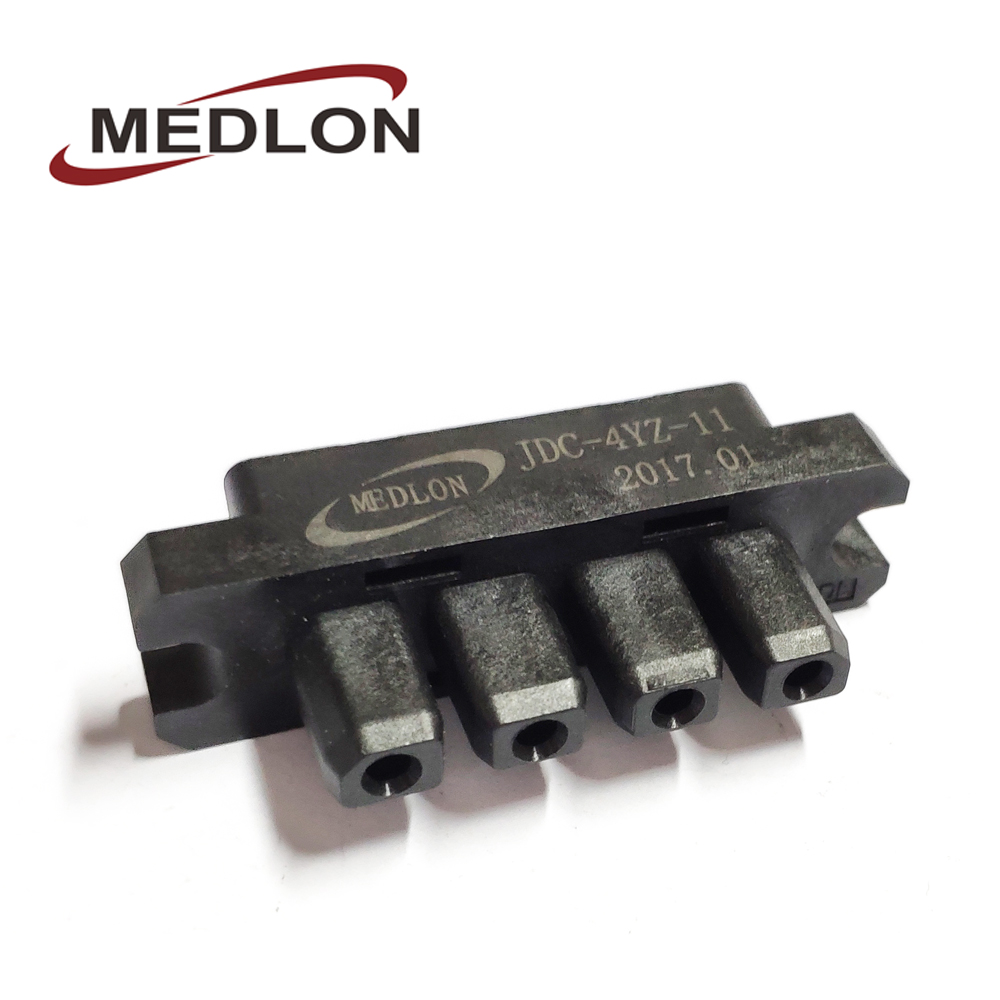

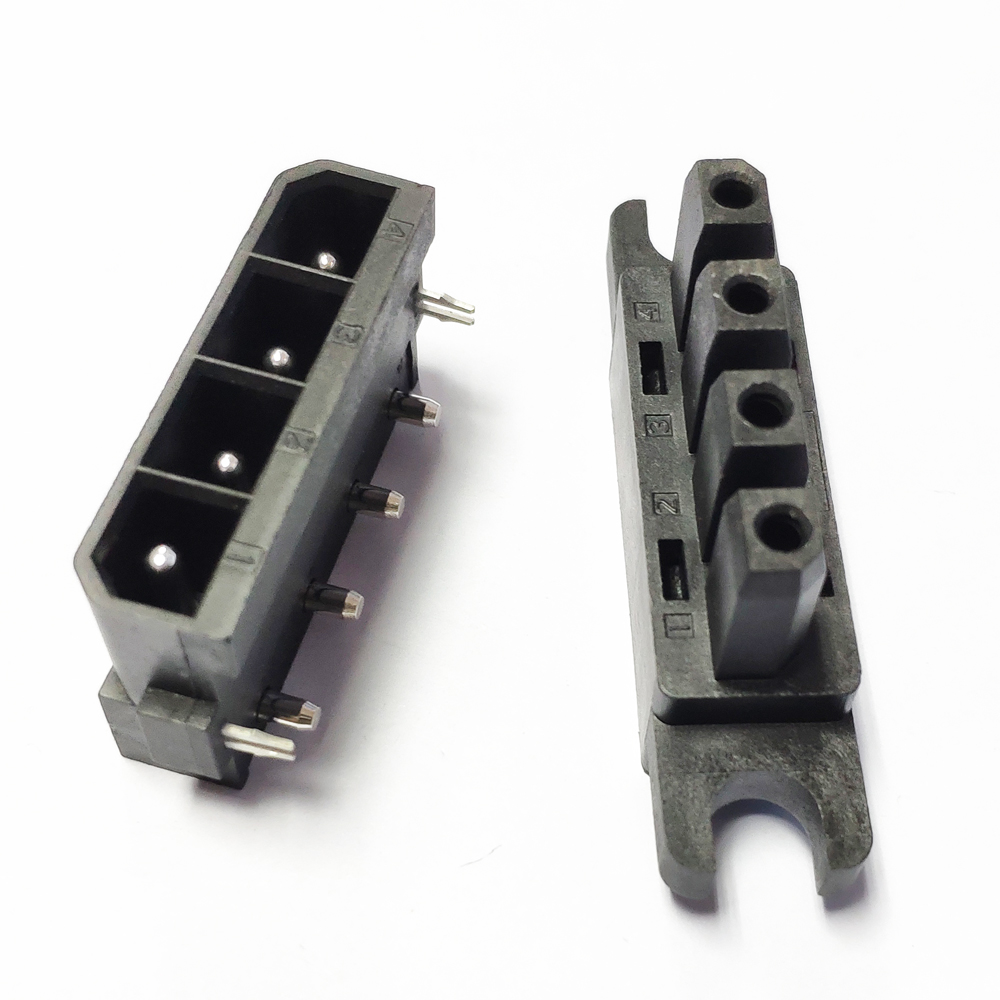

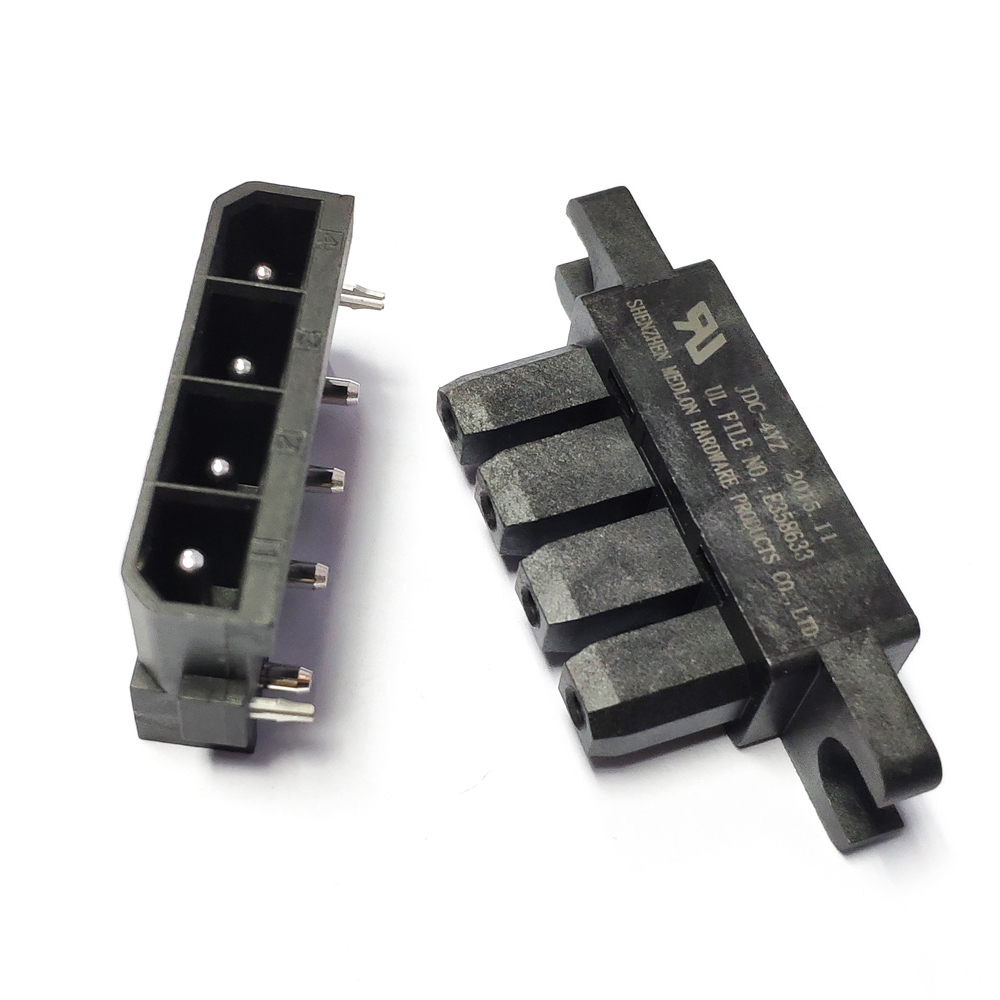

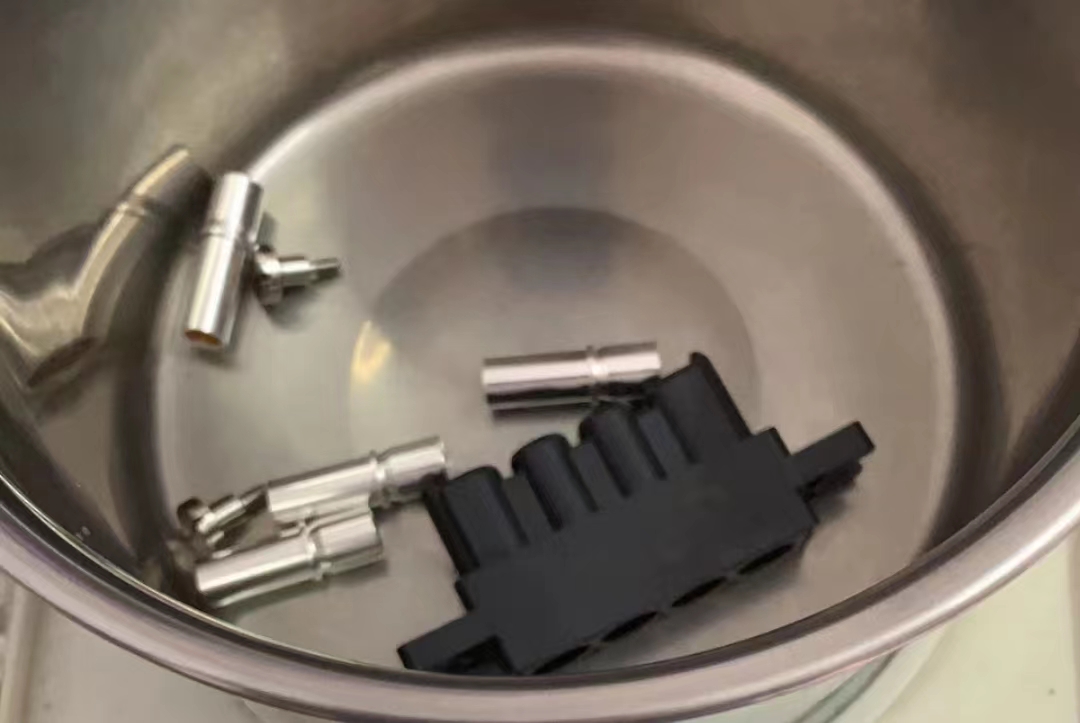

Product model JDC-4Z-002 Female High current Connector
Mechanical Life 200~500 times
Insulation Resisitance ≥3000MΩ (normal temperature) ;  ≥100MΩ (damp and hot)
Housing Material PET UL94V-0  Black
Contact Spec 12#
Contact Quantity 4
Rated Current 95A
Rated Voltage 600V DC
Contact Resistance ≤0.5mΩ
Withstand Voltage

2500V AC (normality)

50V AC( damp and hot)

Surface Finish Silver plated over nickel
Terminal Style Sockets: Crimping (Y);   Pins: PCB Solder Cup (H)
Material Pin,Jack red copper
Crown Spring Beryllium bronze
Working Temperature -40℃ ~ +125

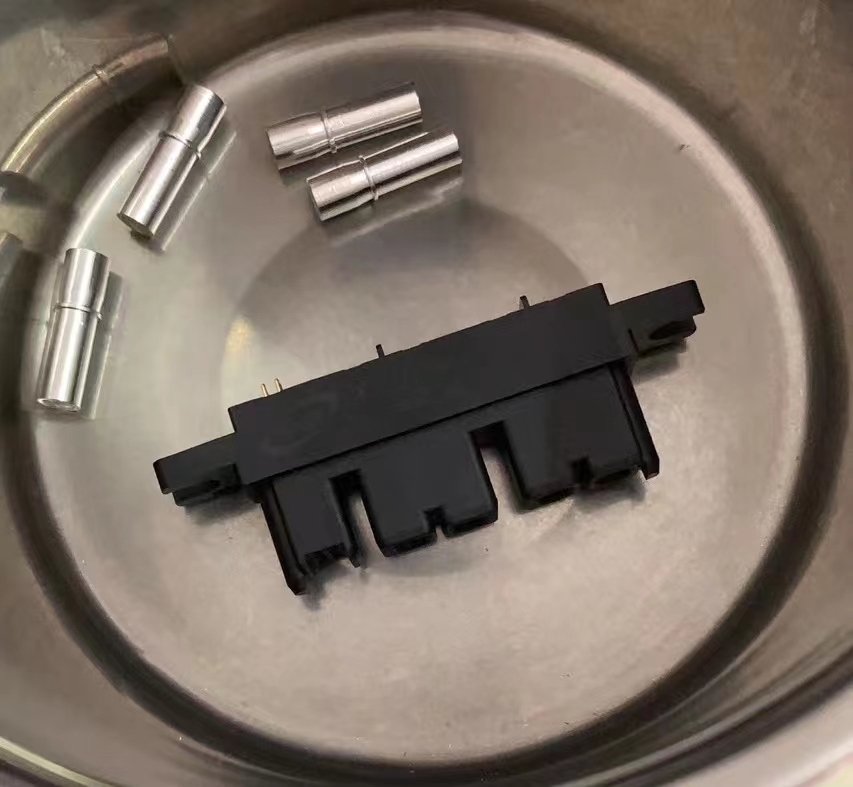

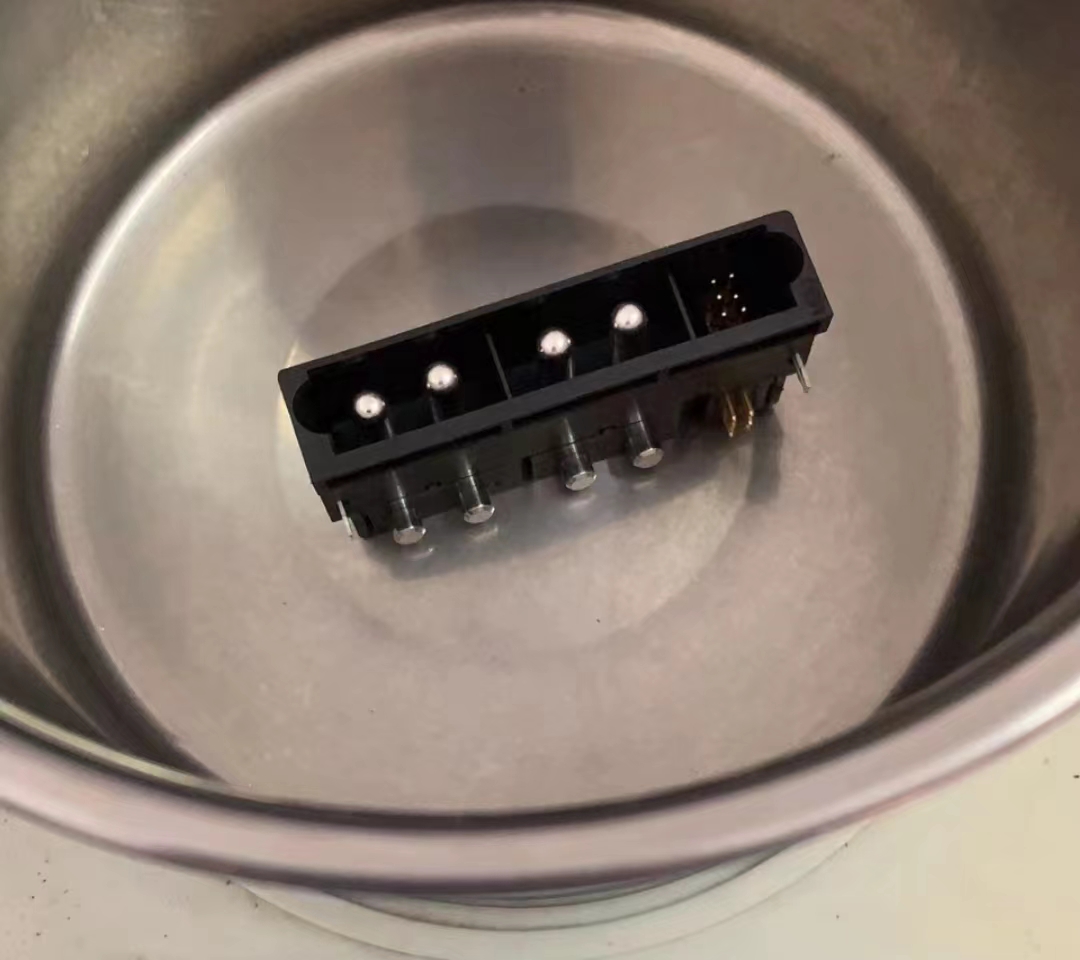

JDC 4 & 12 1.jpg




Product Applications



1. Intelligence high frequency switching power supply, communication power supply, electric     power,railway power supply,LED power.
2. UPS systems
3. Contravariant power
4. Drawer low-voltage cabinet etc.



More Products
We are doing the OEM & ODM Connectors based on customers' needs
