MDL(MEDLON)DC EV Charging Gun
  • MDL(MEDLON)DC EV Charging Gun
  • MDL(MEDLON)DC EV Charging Gun
MDL(MEDLON)DC EV Charging Gun

AC car charging socket: EV-F0502AC-CL0XX
Exchange pile charging socket: EV-F0502AC-CL1XX
Note: Pile end with electronic lock.

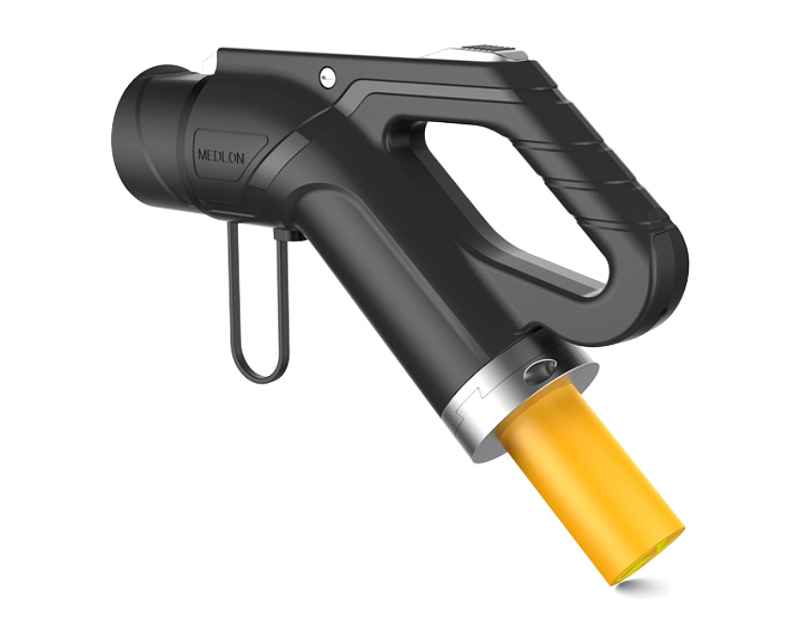

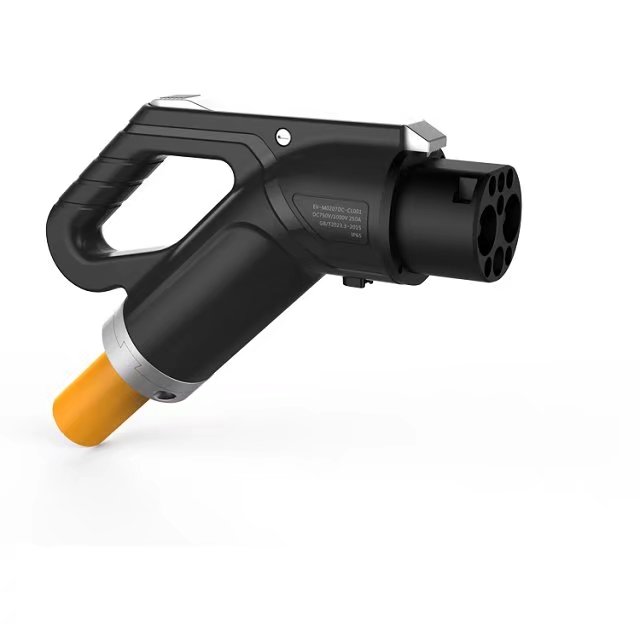

Charging gun design ergonomic appearance, stylish, comfortable grip, easy to operate
Superior protection perf

AC car charging socket: EV-F0502AC-CL0XX

Exchange pile charging socket: EV-F0502AC-CL1XX


Note: Pile end with electronic lock.


Charging gun design ergonomic appearance, stylish, comfortable grip, easy to operate

Superior protection performance, with the protection of the associated device connected to the high degree of protection of the power plug

At IP55 (working status)



Pin head safety insulation design, to prevent accidental direct contact with staff

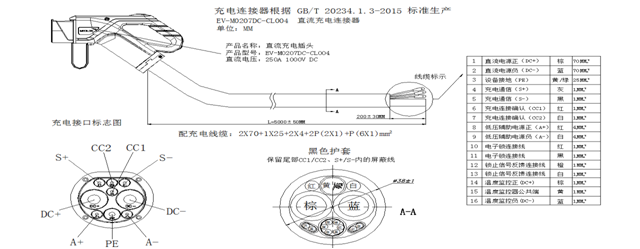

Interface size and product performance fully meet the national standard GB / T20234-2015 requirements and requirements

According to customer requirements with the freedom of color

Temperature detection device using temperature sensor or temperature switch for customer choice, to meet the different customers



Spec.

9 pin 250A/200A/125A/80A

Operating   Temperature

-30+50oC

Protection level

IP55

Mechanical  Life

10000 times

Mating &Unmating force

<140N

Housing Material

UL94V-0

Voltage   rating

750V   DC/

Rated Current

250A/200A/125A/80A

 Contact Resistance

0.5mΩ

Insulation impedance

2000MΩ DC1000V

Withstand  Voltage

3200V
