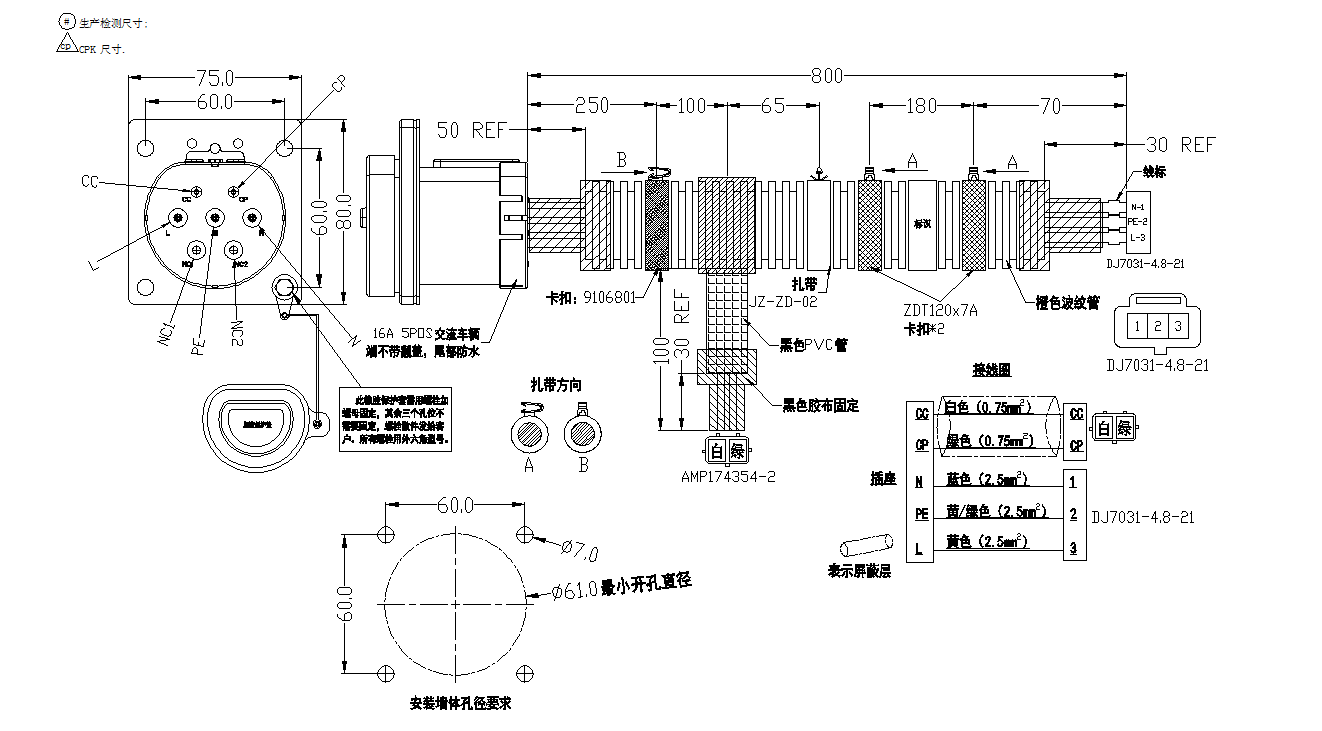

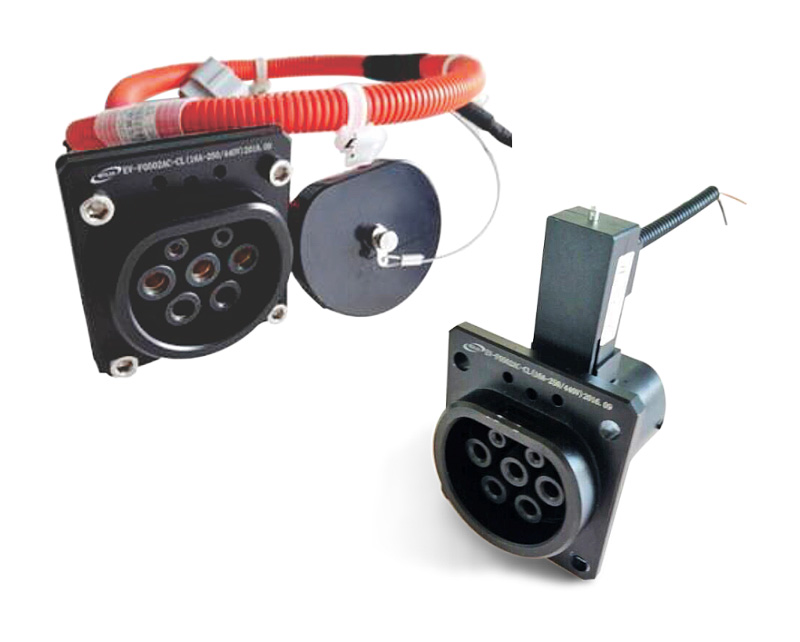

16A AC charging socket (Harness 800): EV-F0502AC-CL011 16A AC charging socket (Harness 2000): EV-F0502AC-CL012 16A AC charging socket (wireless): EV-F0502AC-CL02
Charging socket for the national standard AC car charging socket, charging socket for the vehicle manufacturer for the procurement of vehicles installed on the convenience of vehicles for charging, AC charging pile use;
|
Operating Temperature |
-30～+50oC |
|
|
Mechanical Life |
10000 times |
|
|
Protection grade |
IP54、IP55 |
|
|
Housing Material |
UL94-V0 |
|
|
Contact |
Spec |
5/7 |
|
Voltage rating |
250V AC |
|
|
Rated Current |
16A |
|
|
Contact Resistance |
≤5mΩ |
|
|
Insulation impedance |
≥2500MΩ（DC500V） |
|
|
Withstand Voltage |
≥2500V AC |
|
|
Insertion force |
≤100N |
|
