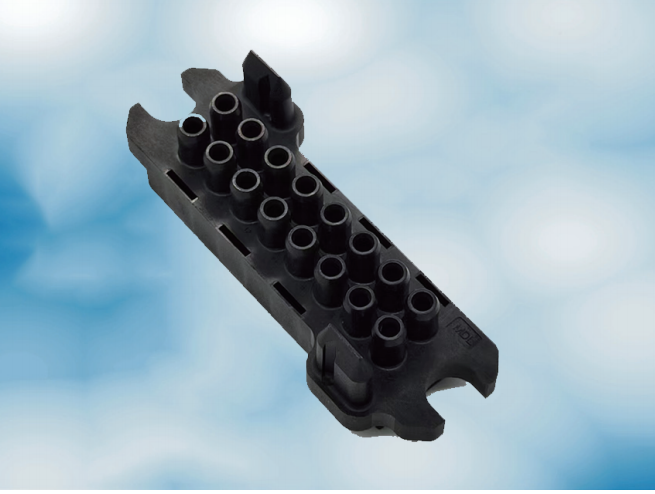

High current 16 Pin 35A 500V AC Drawer Type AC Charging Pole Module Connector  board to board connector

   Main Technical Parameters

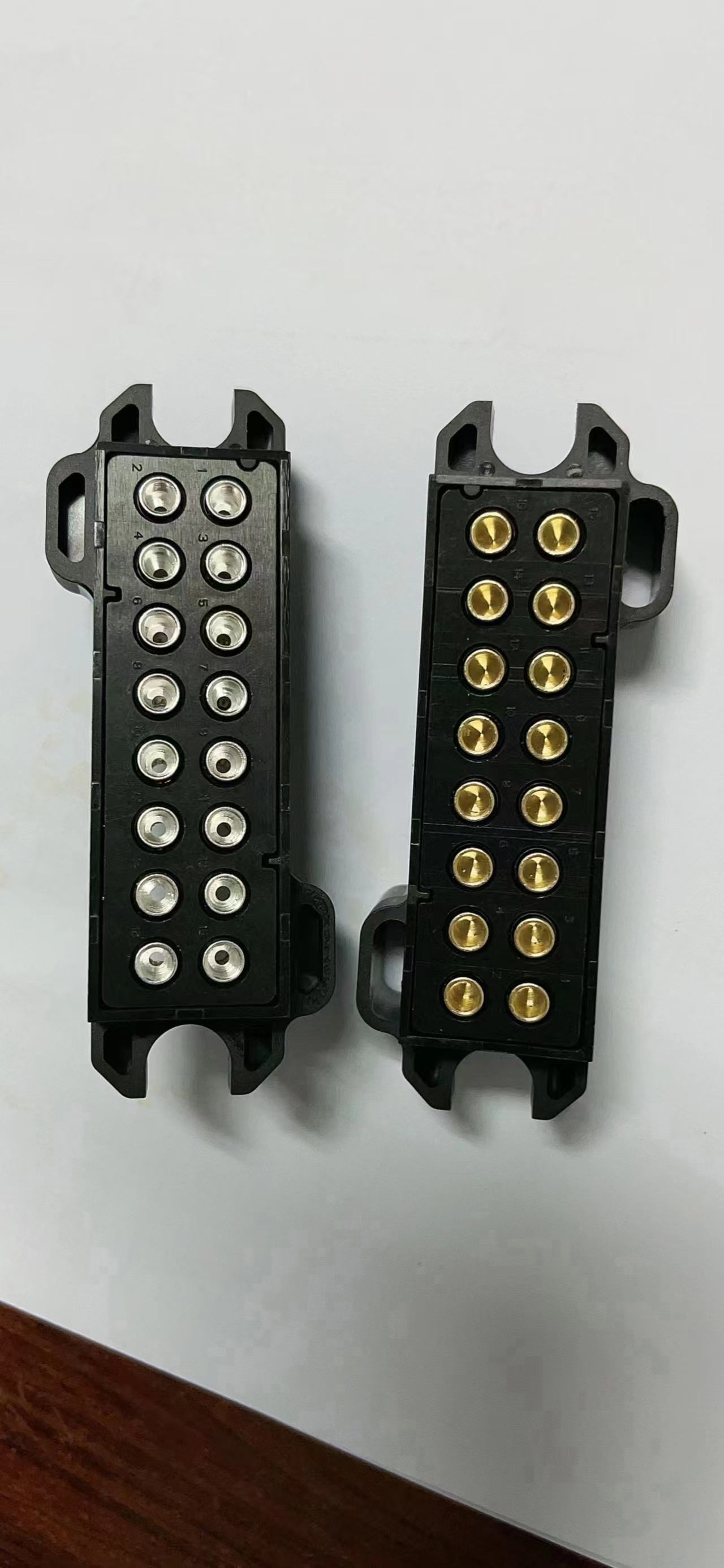

• Product Model: JDC-16T-001 & JDC-16Z-001
• Gender: Male and Female
• Mechanical Life: 1000 times
• Spec: 12# (16 pin)
• Rated Current: 35A
• Voltage Curren: 500V AC
• Withstand Voltage: 1500V  AC (Normal)
• Insulation Resistance: ≥3000MΩ (Normal)
• Contact Resistance: ≤1.0mΩ
• Surface Finish: Plated Silver or Gold

         Materials

• Housing Material: PET , UL94V-0, Black
• Pin and Jack: Brass
• Crown Spring: Beryllium bronze

      Operating Environment

• Operating Temperature: -40 to 125℃


•

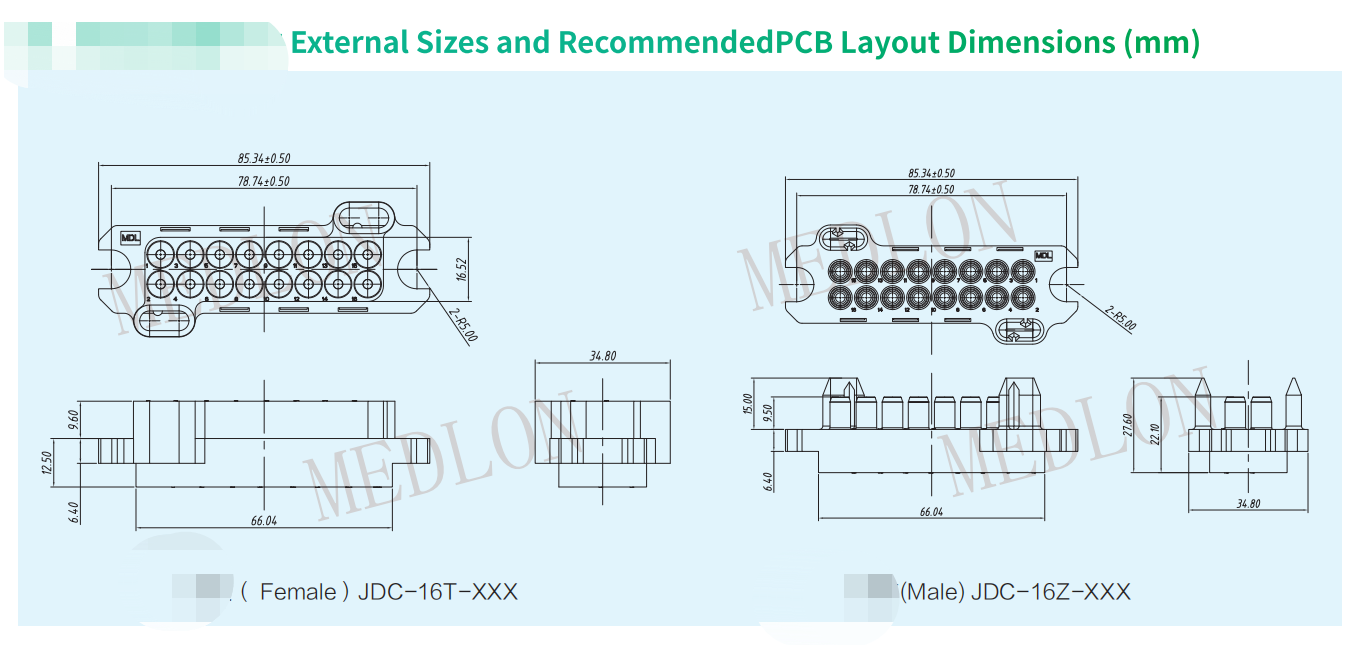

       Welcome to ask for the drawing and send your requirments

• At present the optional terminal styles include crimping ,solder cup ,PCB tail and thread.
• New design connectors are welcome to be ordered.

Shenzhen Medlon Hardware Product Co.,Ltd & Dongguan Meixinlong Hardware Products Co.,Ltd was founded in 2006. It is a high-tech private enterprise that focused on desiging,manufacturing and selling connectors, such as EV AC/DC Charger, power module connector, high desity connector, and mobile phone connector. The company’s poducts are widely used in communications power supply, electric power supply , UPS power supply, server, medical , mobile phones and other fileds.
