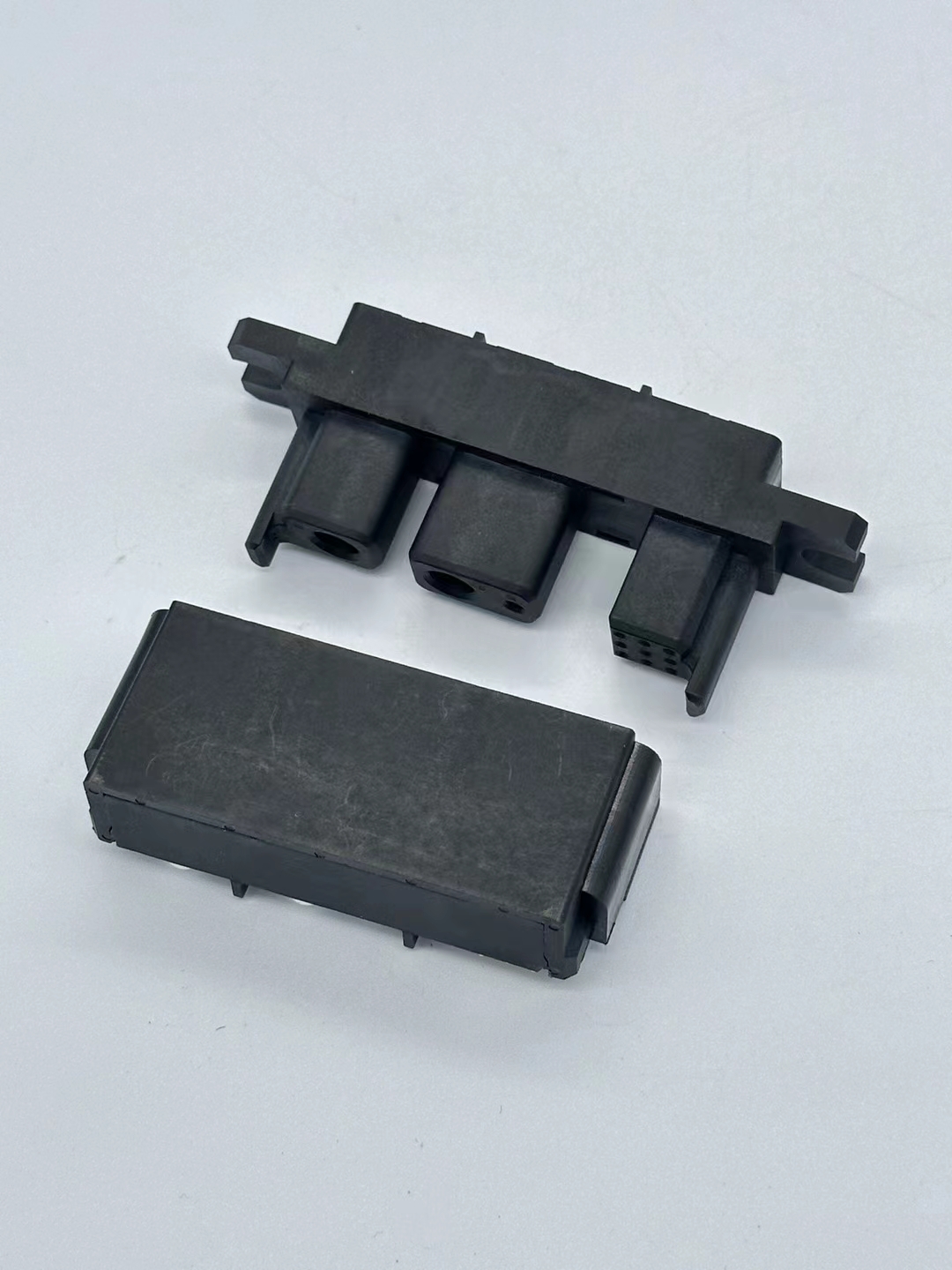

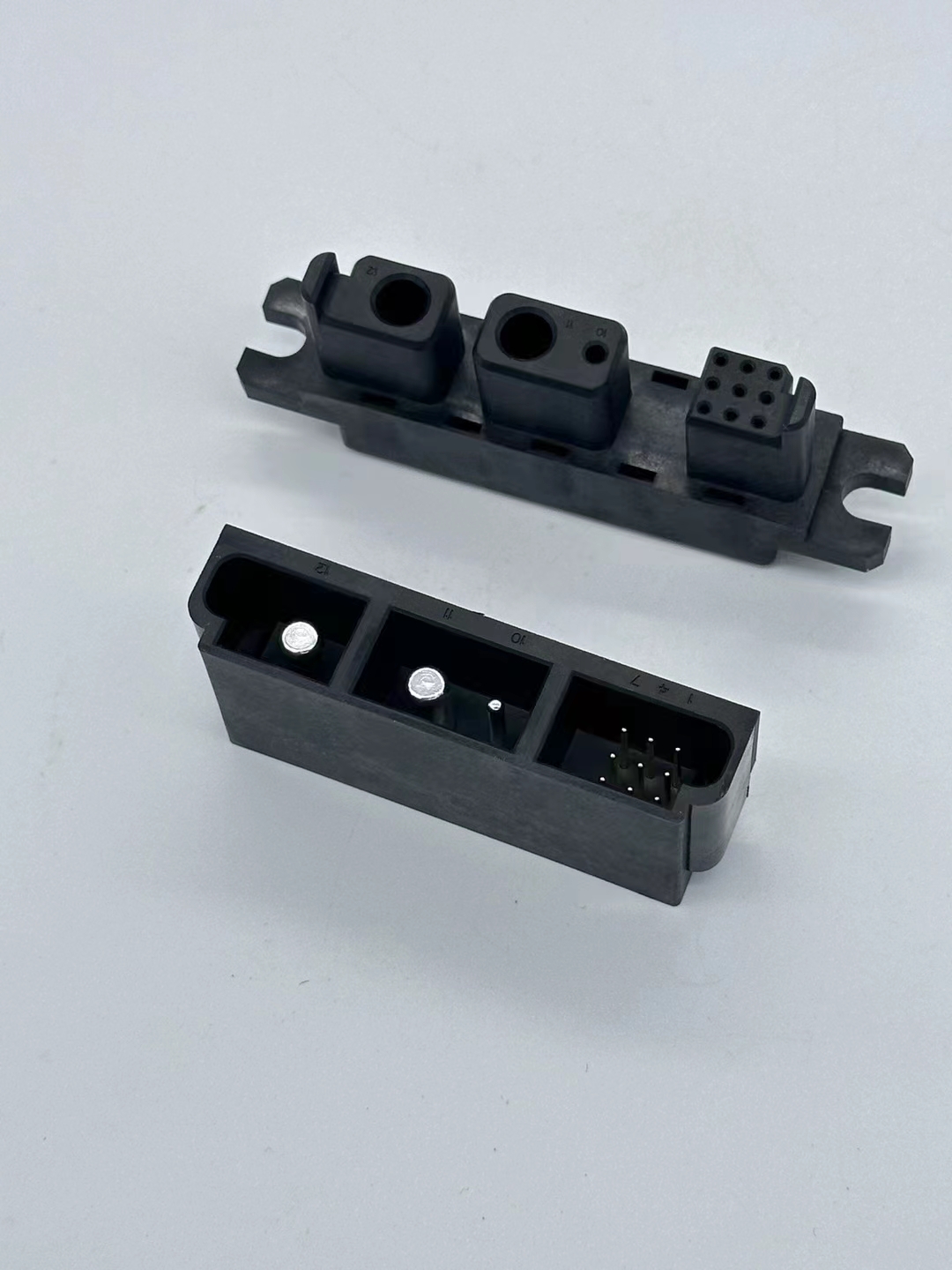

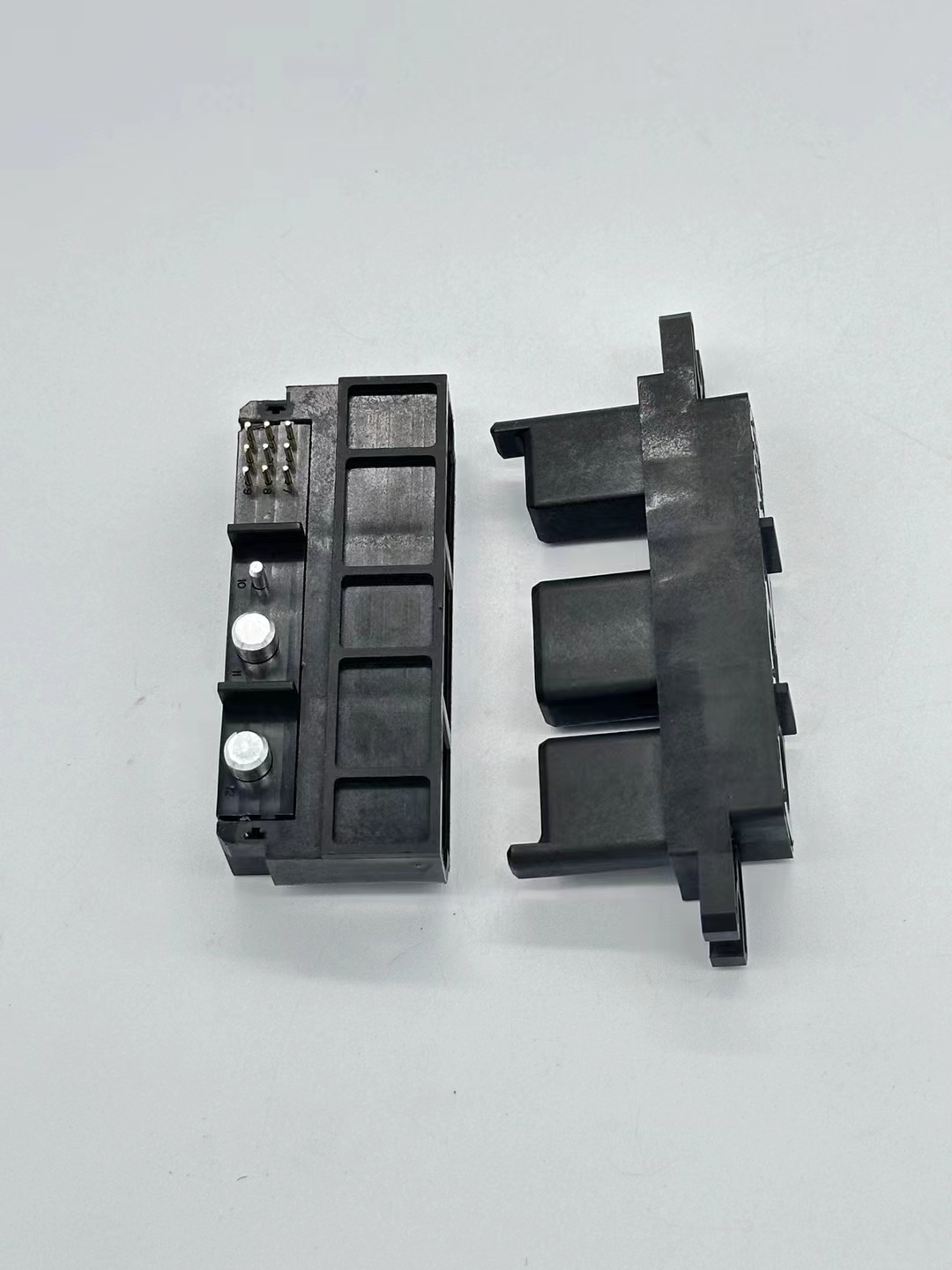

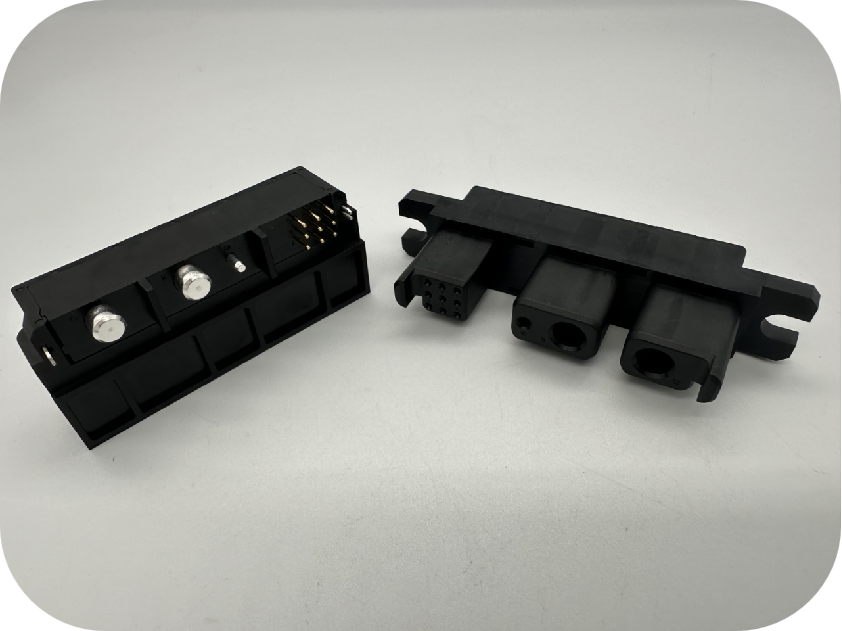

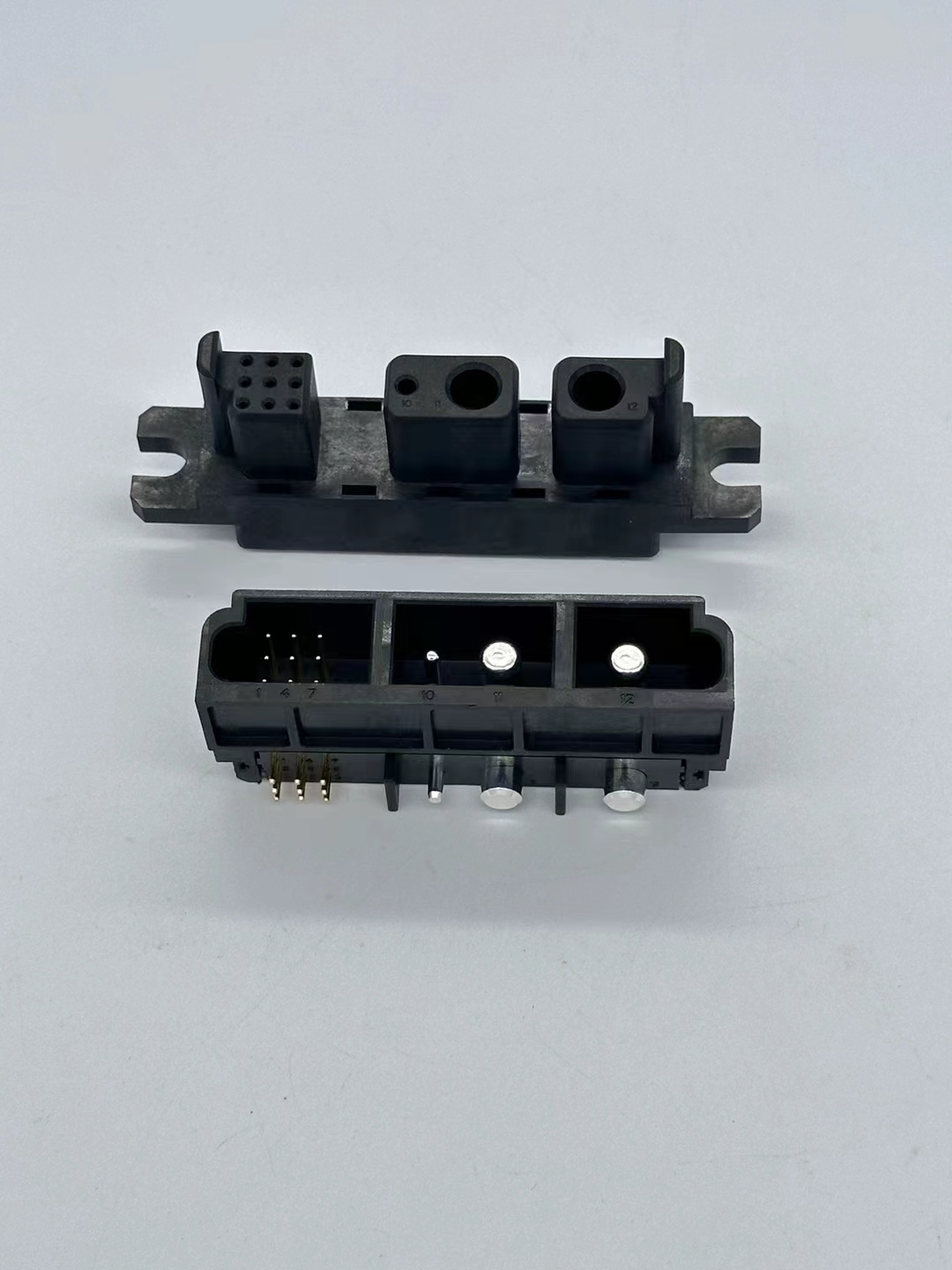

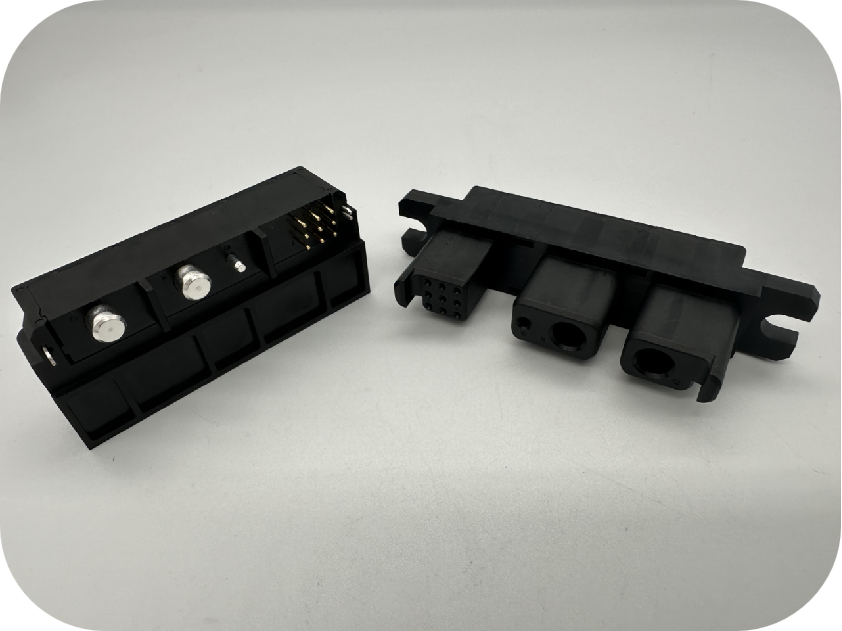

JDC 12 pin Product Introduction

Material:

Insulator: Engineering plastic, UL94-V0, black;

4 # Pin-hole parts: Copper alloy, surface silver plated;

12 # Pin-hole piece: Copper alloy, surface silver plated;

20 # Pin-hole piece: Copper alloy, surface gold-plated;

Fixed feet: copper alloy, surface tin plated;

Electrical performance:

Rated current: 4 #: 115A; 12 #: 35A; 20 #: 5A

Voltage withstand: 1500V AC;

Contact impedance (initial value): 4 # ≤ 0.6m Ω;

Insulation resistance: ≥ 3000M Ω (normal)

Relative humidity: 98% (40 ℃);

Mechanical life: 500 times

Working environment: -40 ℃~125 ℃
