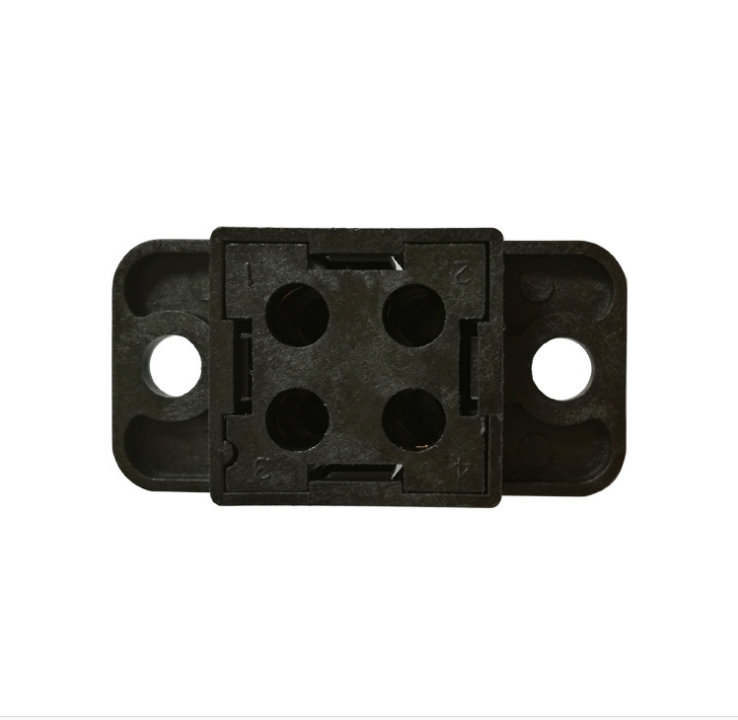

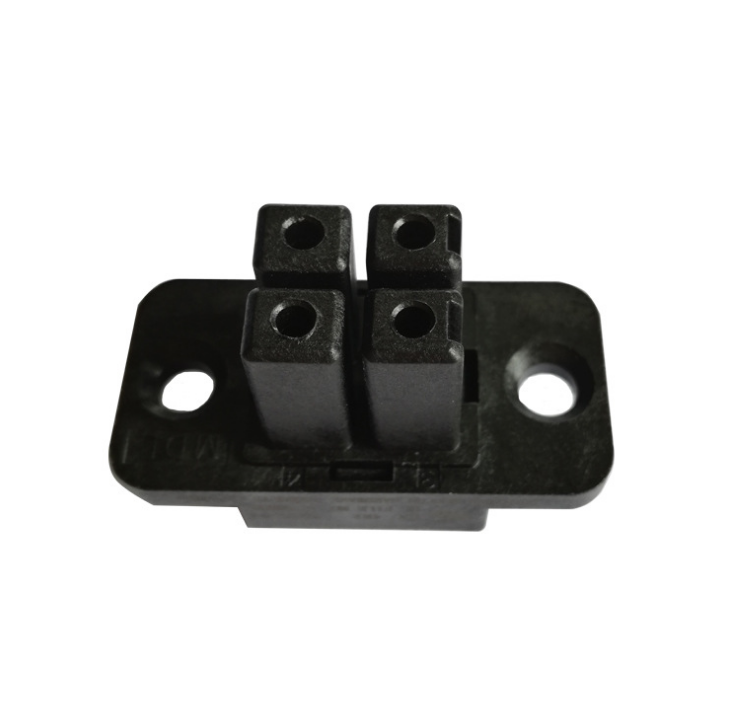

JDC-4RZ & JDC-4RT
  • JDC-4RZ & JDC-4RT
  • JDC-4RZ & JDC-4RT
  • JDC-4RZ & JDC-4RT
  • JDC-4RZ & JDC-4RT
  • JDC-4RZ & JDC-4RT
JDC-4RZ & JDC-4RT

FEATURES

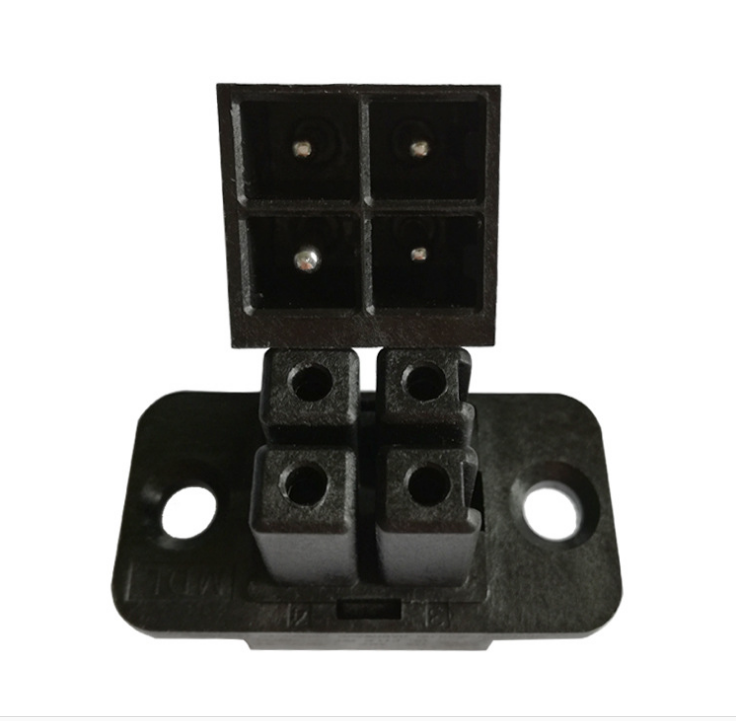

right angle female male B2B power module 4 pin connector                                        Product Information                                                                Product model                                        JDC-4RZ-02




right angle female male B2B power module 4 pin connector

Product Information

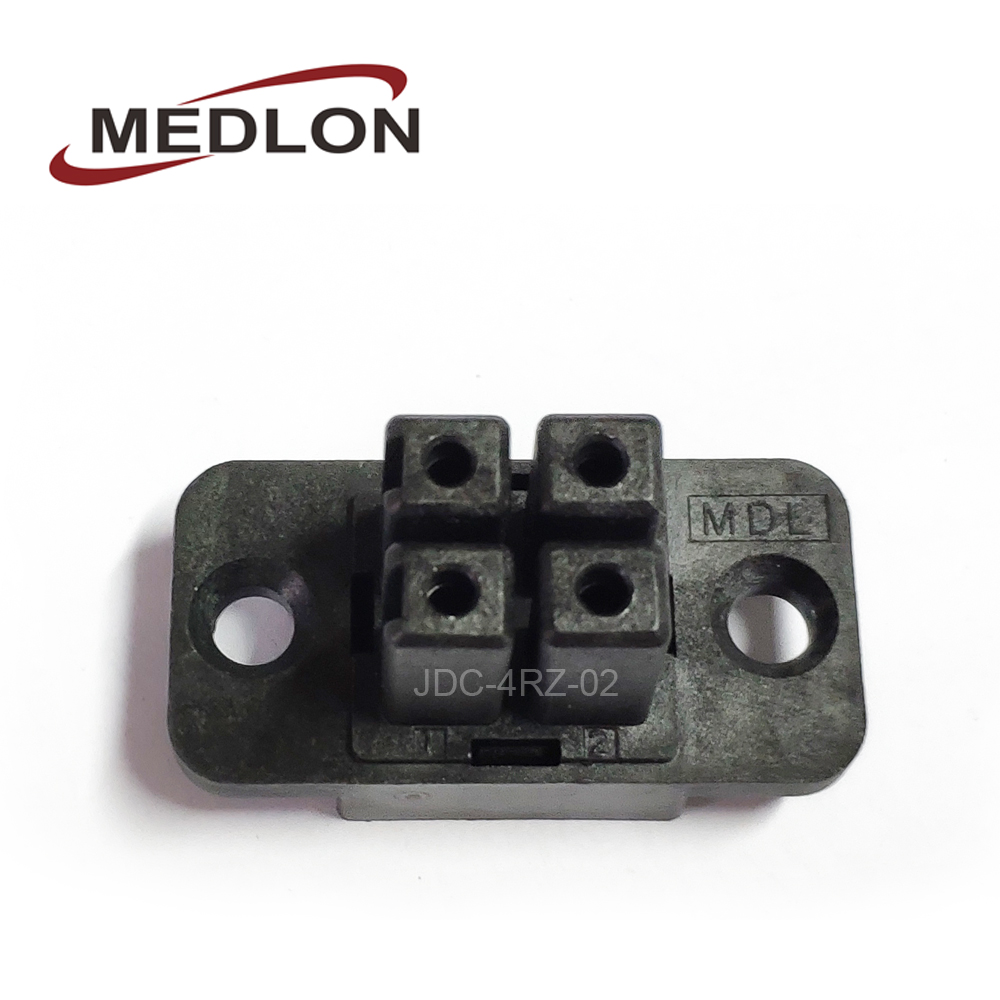

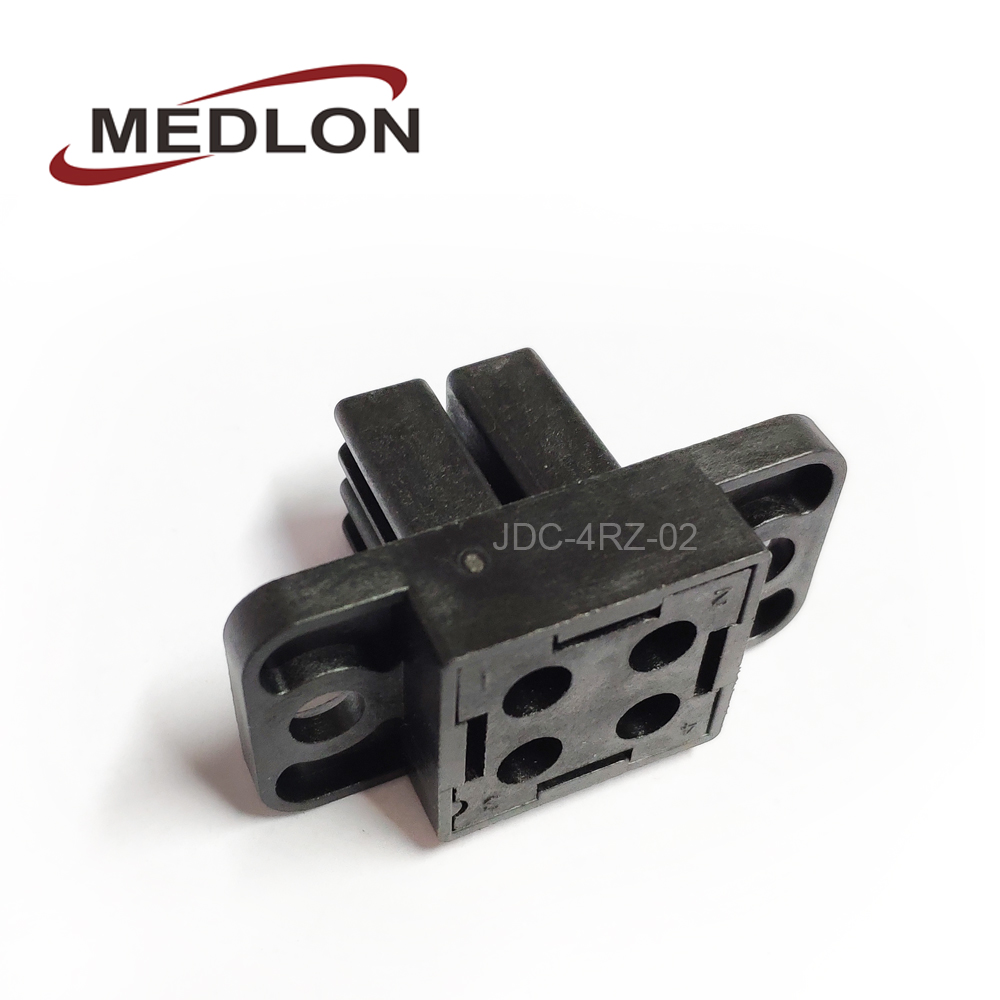

Product model JDC-4RZ-02
Mechanical Life 500 times
Insulation Resisitance ≥500MΩ (normal temperature) ;  ≥100MΩ (damp and hot)
Housing Material PET UL94V-0  Black
Contact Spec 12#
Contact Quantity 4
Rated Current 35A
Rated Voltage 690V AC
Contact Resistance ≤1.0mΩ
Withstand Voltage

Contact:4000V (normality)

Between insulator and contact: 3000V(normality)

Contact:2000V (dampandhot)

Between insulator and contact: 1500V (dampandhot)

Surface Finish Silver plated over nickel

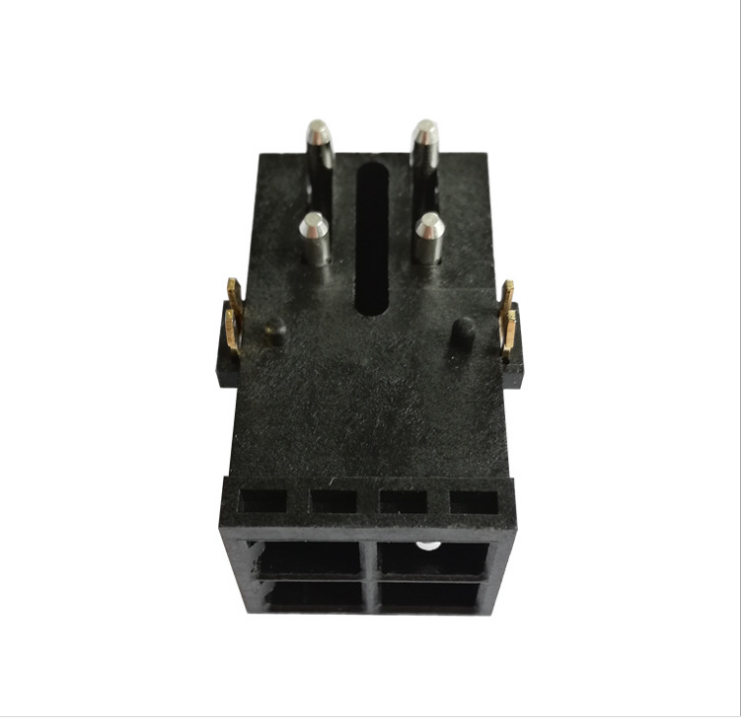

Terminal Style Sockets: Crimping (Y);   Pins: PCB Solder Cup (H)
Material Pin,Jack Brass or copper alloy
Crown Spring Beryllium bronze
Working Temperature -40℃ ~ +125



Product Applications



1. Intelligence high frequency switching power supply, communication power supply, electric     power,railway power supply,LED power.
2. UPS systems
3. Contravariant power
4. Drawer low-voltage cabinet etc.
