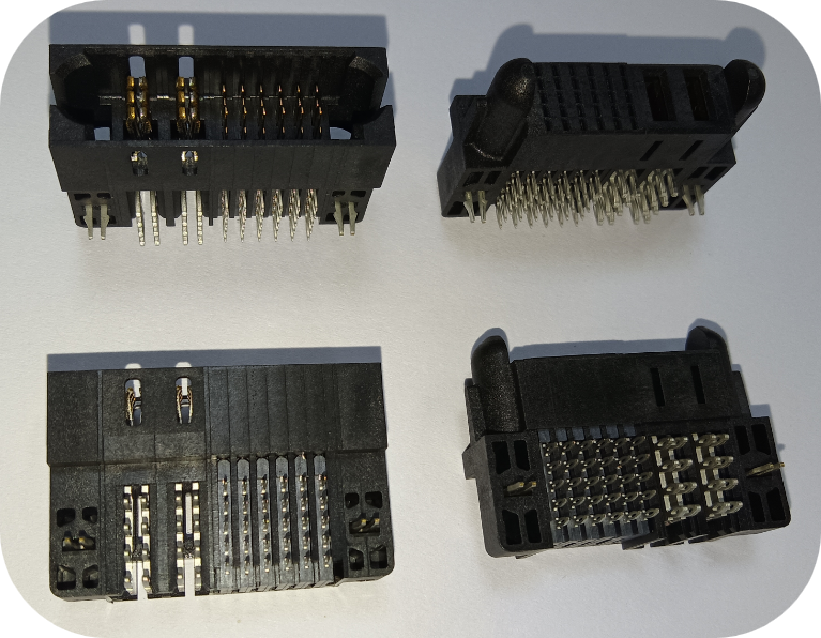

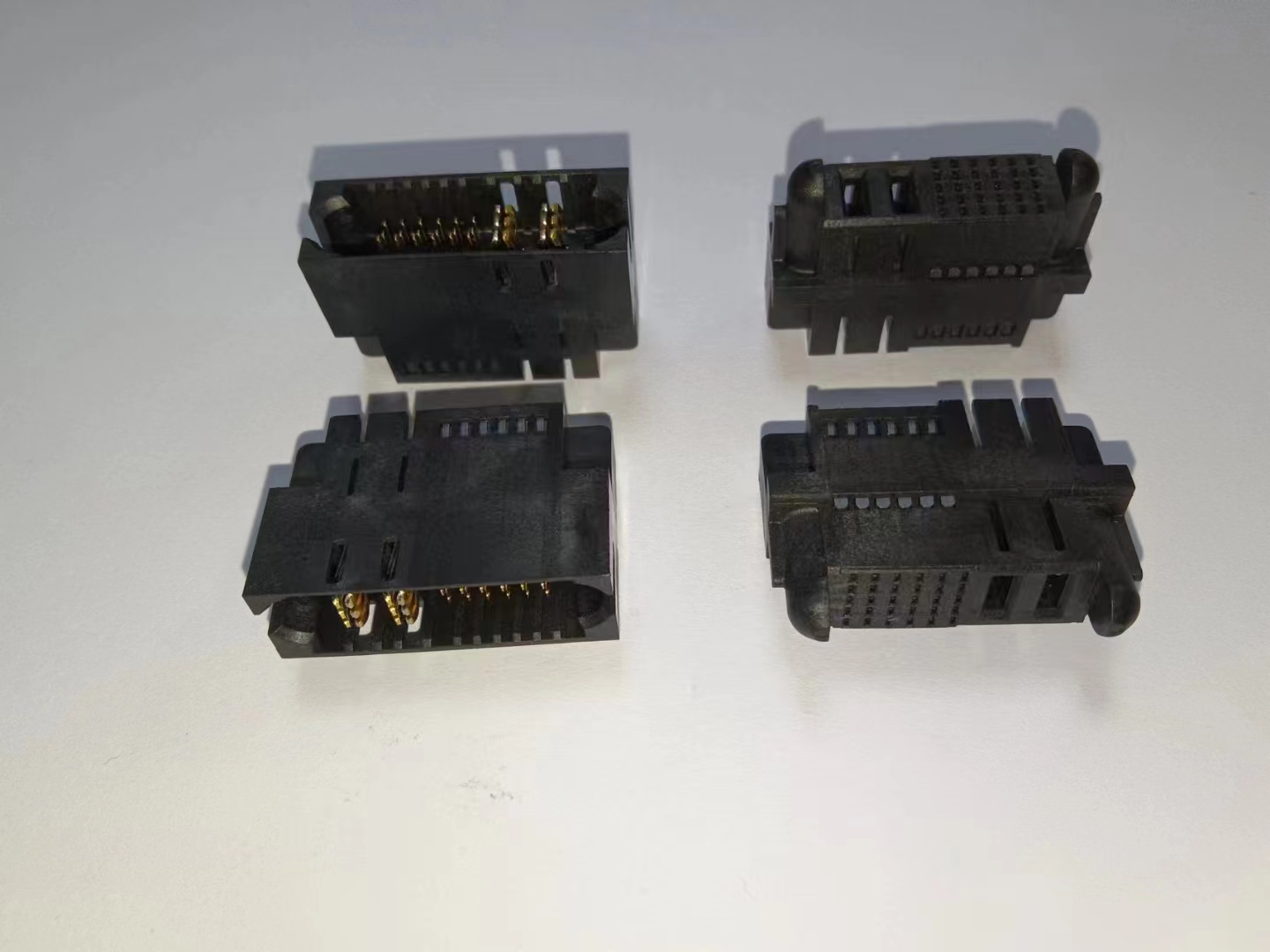

JYP Powerblade ULTRA 2HP+30HDS R/A Female & R/A male

Personalized customization:

The MEDLON JYP powerblade ULTRA series connector is an ultra-high conductivity connector used for
high-density power supplies. It is designed flexibly and provides customers with multiple choices.
It can be configured according to specific specifications and provides three contact options: high-power power,
low-power power, and signal. The number and position of power and signal can be configured according
to customer needs, and the spacing between power contacts has multiple choices.

The MEDLON JYP powerblade ULTRA series connectors offer two options for connecting printed circuit boards:
soldered to the board or crimped to the board. Welding and crimping configurations can be used for all
plugs and sockets.

Application field:

The MEDLON JYP Powerblade ULTRA series connectors have high current carrying capacity and are an ideal
choice for data communication and processing, making them ideal for various applications such as
SSI server power supplies, fault-tolerant computers, modular and hot swappable redundant N+1
distribution systems, and uninterruptible power supply systems (UPS).

Material:

Insulator: High temperature resistant thermoplastic, UL94-V0, black;

Terminal: High performance copper alloy, contact area gold-plated, pins misted with tin;

Fixed feet: High performance copper alloy, surface tin plated;

Electrical performance:

Rated current: Power terminal 182V AC; Signal terminal 39V AC;

Rated current: High power supply terminal single Pin52A;

Low power supply terminal single Pin31A;

Signal terminal 3A;

Voltage withstand: 2500V DC power supply terminal has no breakdown for 1 minute;

1000V DC signal terminal has no breakdown for 1 minute;

Contact impedance (initial value): ≤ 0.3m Ω;

Insulation resistance: 1000 MEG OHM MIN power terminal;

500 MEG OHM MIN signal terminals;

Mechanical life: 200 times

Working temperature: -40 ℃~125 ℃
