MDL JYP-F0804B-VT01R  (MEDLON) FCI replacement ((FCI-51939-1243LF/FCI-51731-023LF) power male female connector  ac power connector dc power connector
  • MDL JYP-F0804B-VT01R  (MEDLON) FCI replacement ((FCI-51939-1243LF/FCI-51731-023LF) power male female connector  ac power connector dc power connector
  • MDL JYP-F0804B-VT01R  (MEDLON) FCI replacement ((FCI-51939-1243LF/FCI-51731-023LF) power male female connector  ac power connector dc power connector
  • MDL JYP-F0804B-VT01R  (MEDLON) FCI replacement ((FCI-51939-1243LF/FCI-51731-023LF) power male female connector  ac power connector dc power connector
  • MDL JYP-F0804B-VT01R  (MEDLON) FCI replacement ((FCI-51939-1243LF/FCI-51731-023LF) power male female connector  ac power connector dc power connector
  • MDL JYP-F0804B-VT01R  (MEDLON) FCI replacement ((FCI-51939-1243LF/FCI-51731-023LF) power male female connector  ac power connector dc power connector

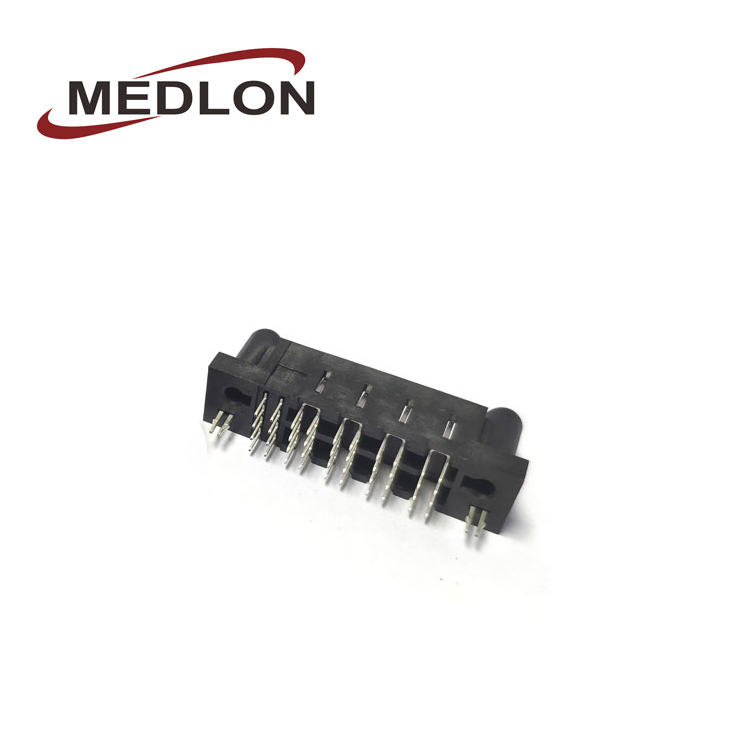

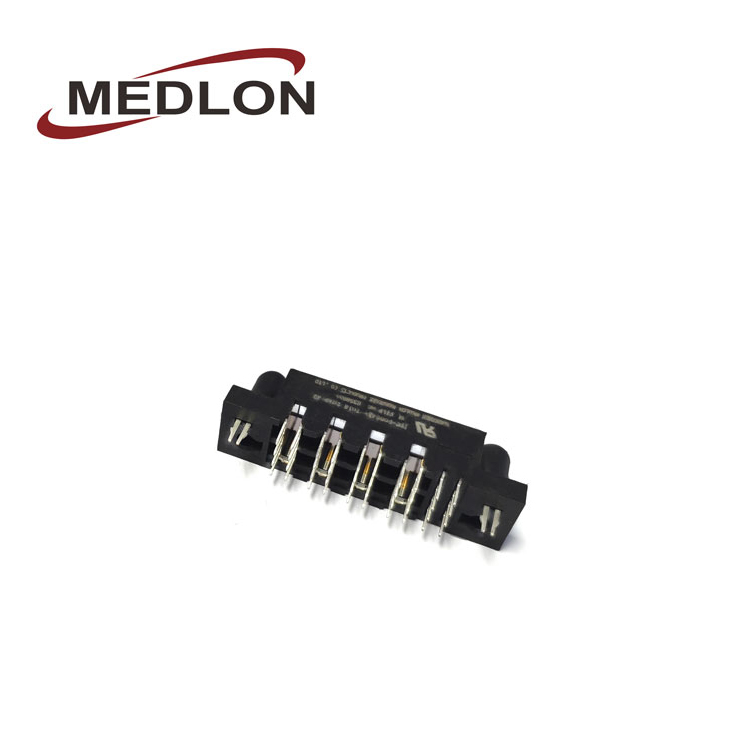

MDL JYP-F0804B-VT01R (MEDLON) FCI replacement ((FCI-51939-1243LF/FCI-51731-023LF) power male female connector ac power connector dc power connector

Powerblade connector: 8P +4SFemale: VerticalMale: Right anglePower pin's current: 40A/pinSignal pin's current: 2.5A/pin  FCI replacement ((FCI-51939-1243LF/FCI-51731-023LF)



Medlon JYP-0804B-VT01R  male female power blade telecom connector
Hot Tags: board to board connector,power connector,round connector
Tags: About MEDLONmore connector products



Product Information
Product model   JYP-F0804B-VT01R
Contact Type Female
Contact Power contact Signal contact
Contact quantity 4 8
Pitch 6.35mm 2.54mm
Rated current 40A 2.5A
Rated voltage 250V 60V
Withstand voltage 1000VDC/min 2500VDC/min
Insulation resisitance 10000MΩ min 500MΩ min
Contact resistance 2mΩ max 20mΩ max
Material:  Housing: PPA , UL94V-0, Black
                Power contact:High conductivity copper alloy,partial or all gold plating
                Signal contact:Phosphor bronze,partial or all gold plating
Operating Environment
Operating Temperature: -40 to 125℃ (including 40℃ temperature rise)
Relative Humidity: 95%(40℃)
Vibration: 20~500Hz, 490m/s2
Shock: Acceleration 490m/s2

JYP M0804B RT01R   F0804B VT01R  1.jpg



Remarks:

1.The longest length of the product can be at148mm, customers can arbitrarily match the number of power contact and signal contact and the position of empty PIN according to demand.
2.Our factory can design and develop products according to customer needs (such as: short welding feet, high rubber core, etc.)





Product Application



JYP series products are mainly used in power distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc.

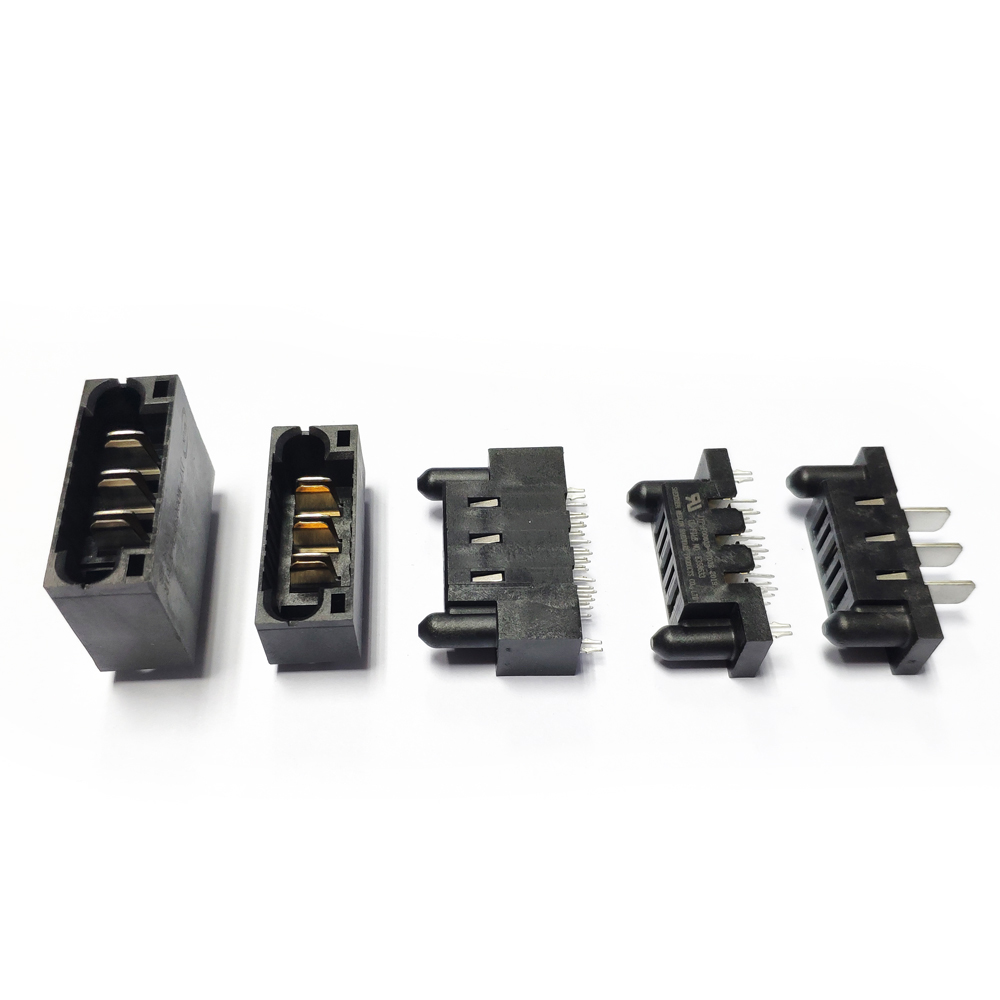

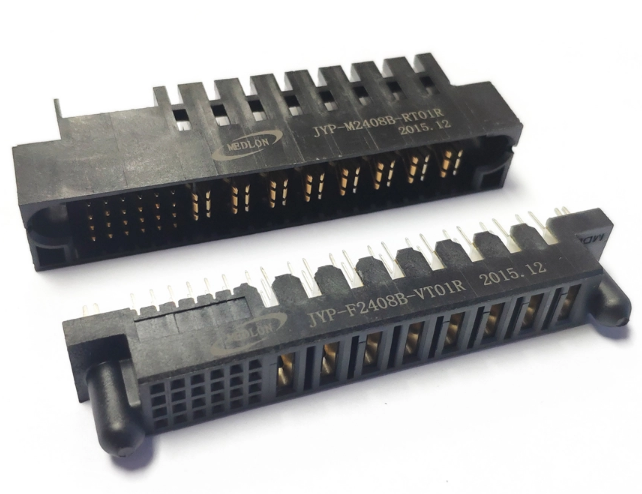

More Products
We are doing the OEM & ODM Connectors based on customers' needs



About us



Shenzhen Medlon Hardware Product Co.,Ltd & Dongguan Meixinlong Hardware Products Co.,Ltd was founded in 2006. It is a high-tech private enterprise that focused on desiging,manufacturing and selling connectors, such as EV AC/DC Charger, power module connector, high desity connector, and mobile phone connector. The company’s poducts are widely used in communications power supply, electric power supply , UPS power supply, server, medical , mobile phones and other fileds.





Transportation & Payment

sally's name card





Product Application

      JYP series connector application area are tele. communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc.

workingh environment

Operating Temperature:-40℃~+125℃(Include 40℃ temperature rising)

Relative  Humidity:40℃时,95%

Vibration:           20~500Hz, 490m/s²

Shock:              Acceleration 490m/ s²


Electri Performance

Contact Specification

Contact  Resistance

(mΩ)

Rated Current

(A)

Voltage Rating

(V)

Withstand   Voltage

lnsulation Resistance

500VDC/1Min

500VDC/1Min

Signal contacts

(2.54mm pitch)

Signal contact

(2.54mm   Pitch)

≤20mΩ

Below 25 pcs,2.5A/pin

50V

1000V









≥2000MΩ



25-48 pcs,1.5A/pin

Over 48pcs,1A/pin

Power contacts

 (5.08mm   Pitch)

≤2mΩ

40A

250V

2500V

≥2000MΩ

Power contact

(6.35mm Pitch)

250V

2500V

Power contact

(7.62mm Pitch)

300V

2500V

Power contact

(9.525mm Pitch)

       300V

2500V



  Technical Performance

Contact Type

Contact stability



Single contact insertion   force

Single contact withdraw   force

Signal contact

≥10N

≤1N

≥0.2N

Power contact

≥30N

≤5N

≥2.2N



Mechanical  Life :250 times








Product Application

      JYP series connector application area are tele. communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc.

workingh environment

Operating Temperature:-40℃~+125℃(Include 40℃ temperature rising)

Relative  Humidity:40℃时,95%

Vibration:           20~500Hz, 490m/s²

Shock:              Acceleration 490m/ s²


Electri Performance

Contact Specification

Contact  Resistance

(mΩ)

Rated Current

(A)

Voltage Rating

(V)

Withstand   Voltage

lnsulation Resistance

500VDC/1Min

500VDC/1Min

Signal contacts

(2.54mm pitch)

Signal contact

(2.54mm   Pitch)

≤20mΩ

Below 25 pcs,2.5A/pin

50V

1000V









≥2000MΩ



25-48 pcs,1.5A/pin

Over 48pcs,1A/pin

Power contacts

 (5.08mm   Pitch)

≤2mΩ

40A

250V

2500V

≥2000MΩ

Power contact

(6.35mm Pitch)

250V

2500V

Power contact

(7.62mm Pitch)

300V

2500V

Power contact

(9.525mm Pitch)

       300V

2500V



  Technical Performance

Contact Type

Contact stability



Single contact insertion   force

Single contact withdraw   force

Signal contact

≥10N

≤1N

≥0.2N

Power contact

≥30N

≤5N

≥2.2N



Mechanical  Life :250 times
