JDE Introduction for Module Connectors
JDE series: transportation rail connectors, testing and measurement connectors, new energy vehicle connectors, aerospace connectors, military connectors, AGV connectors, industrial automation connectors, testing and measurement connectors, drone connectors；

Personalized customization

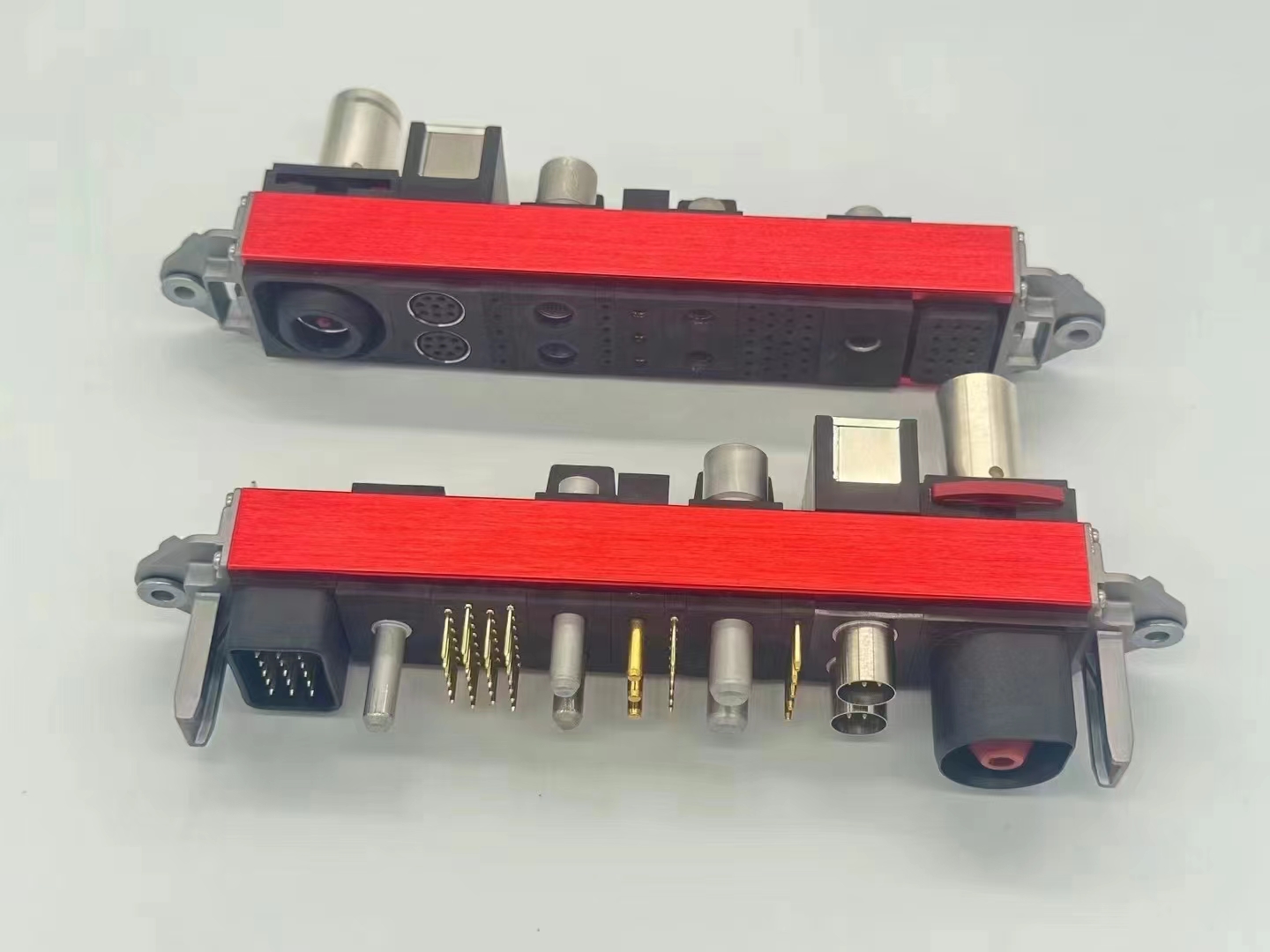

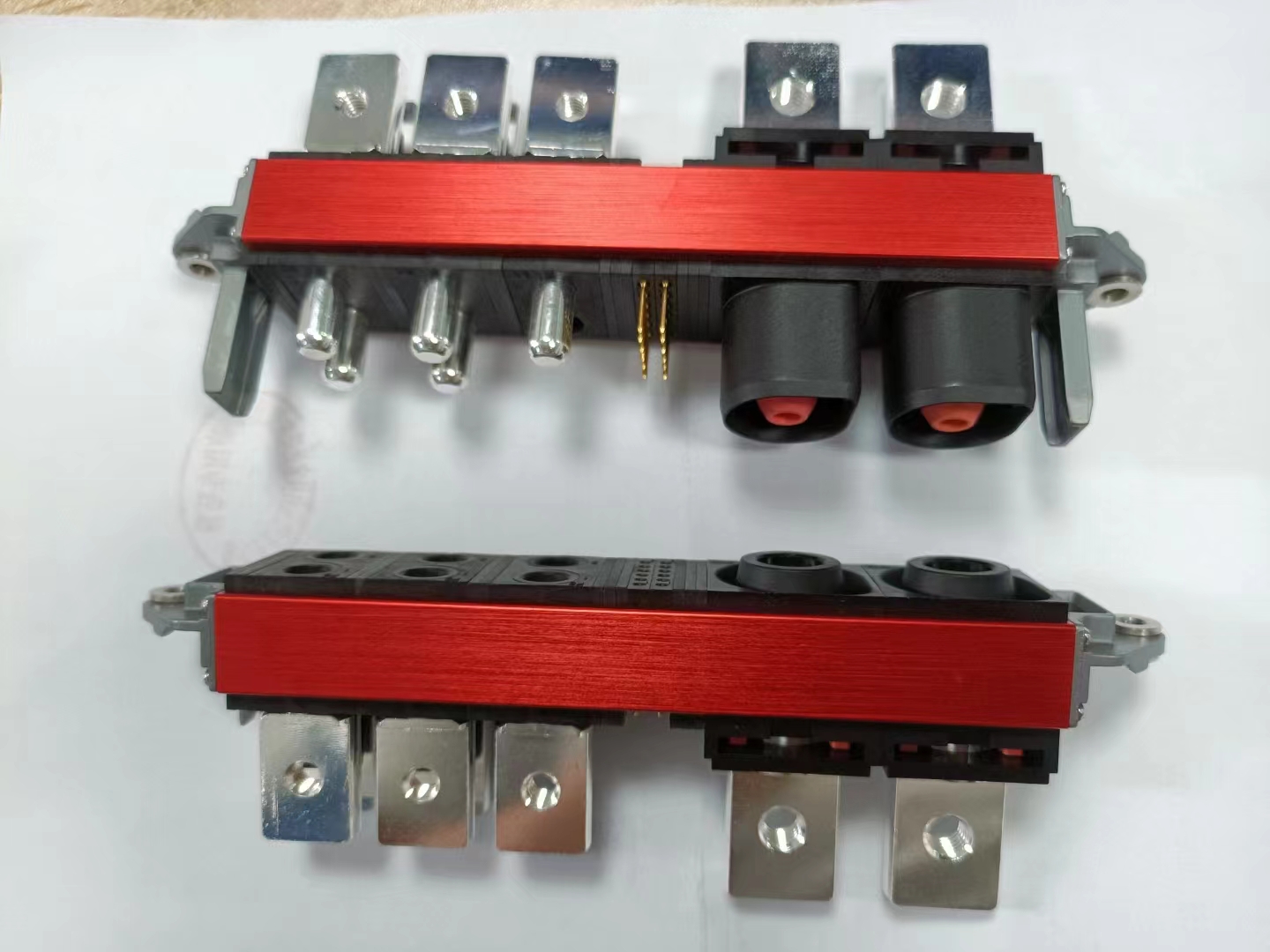

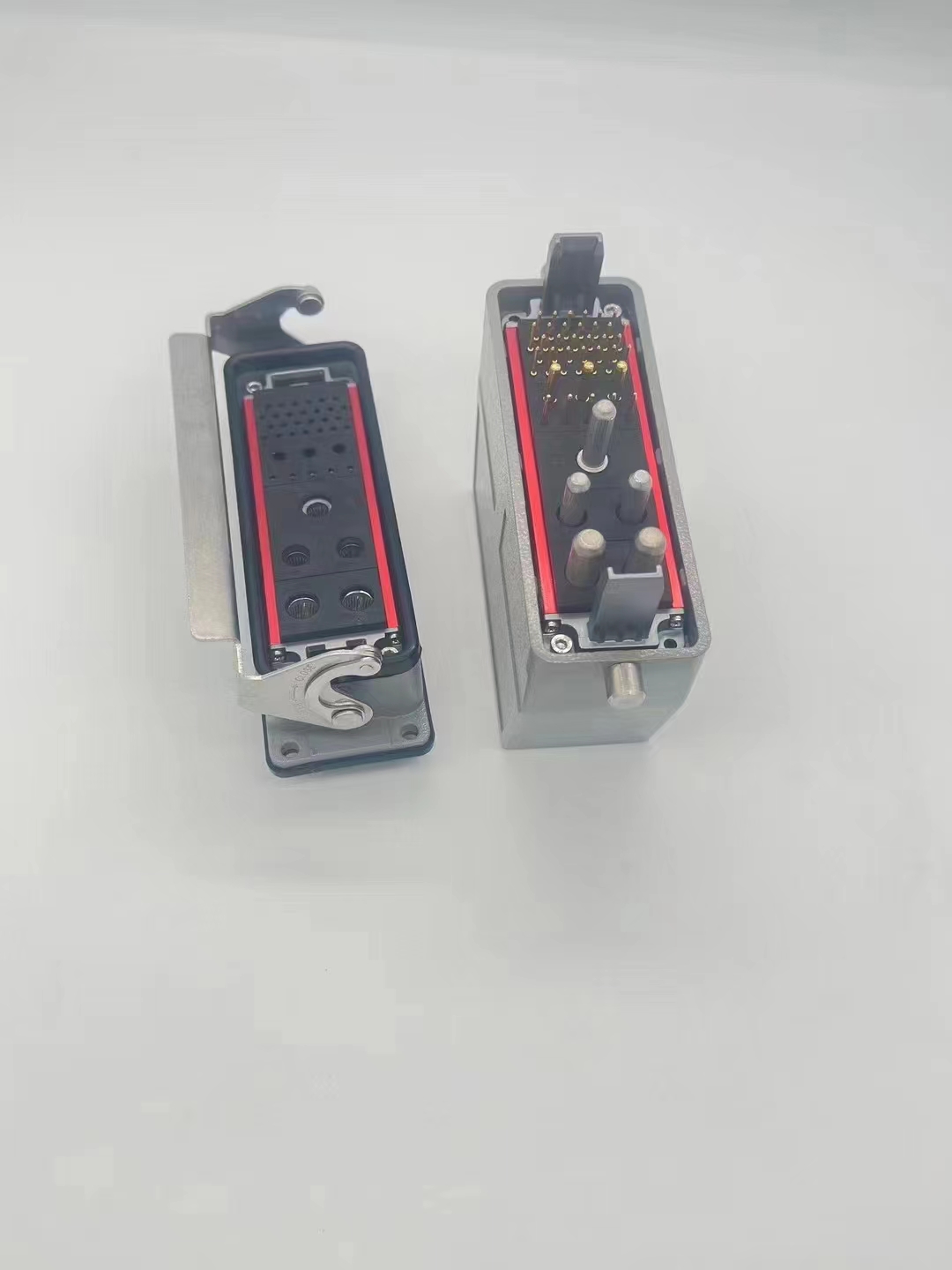

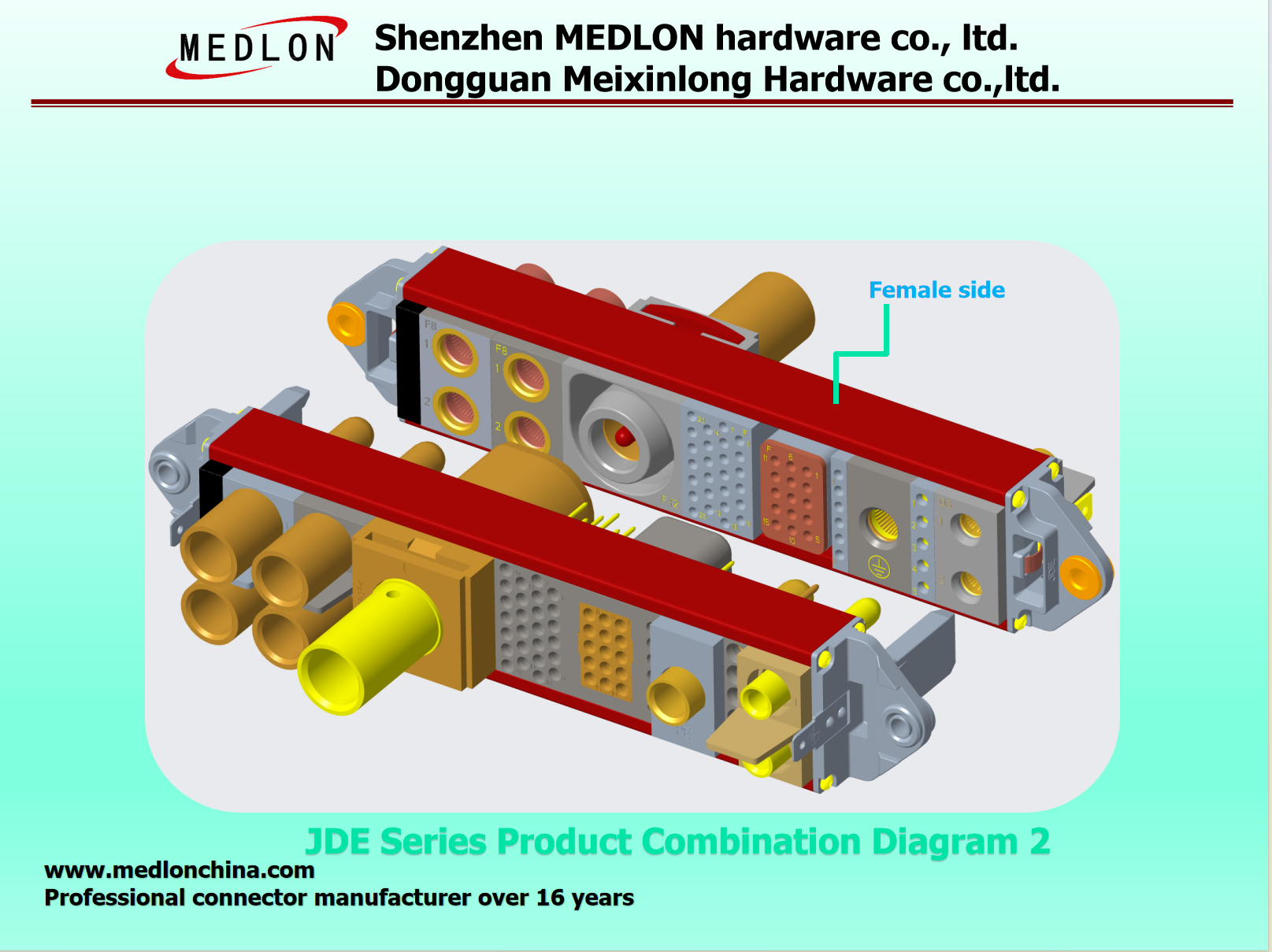

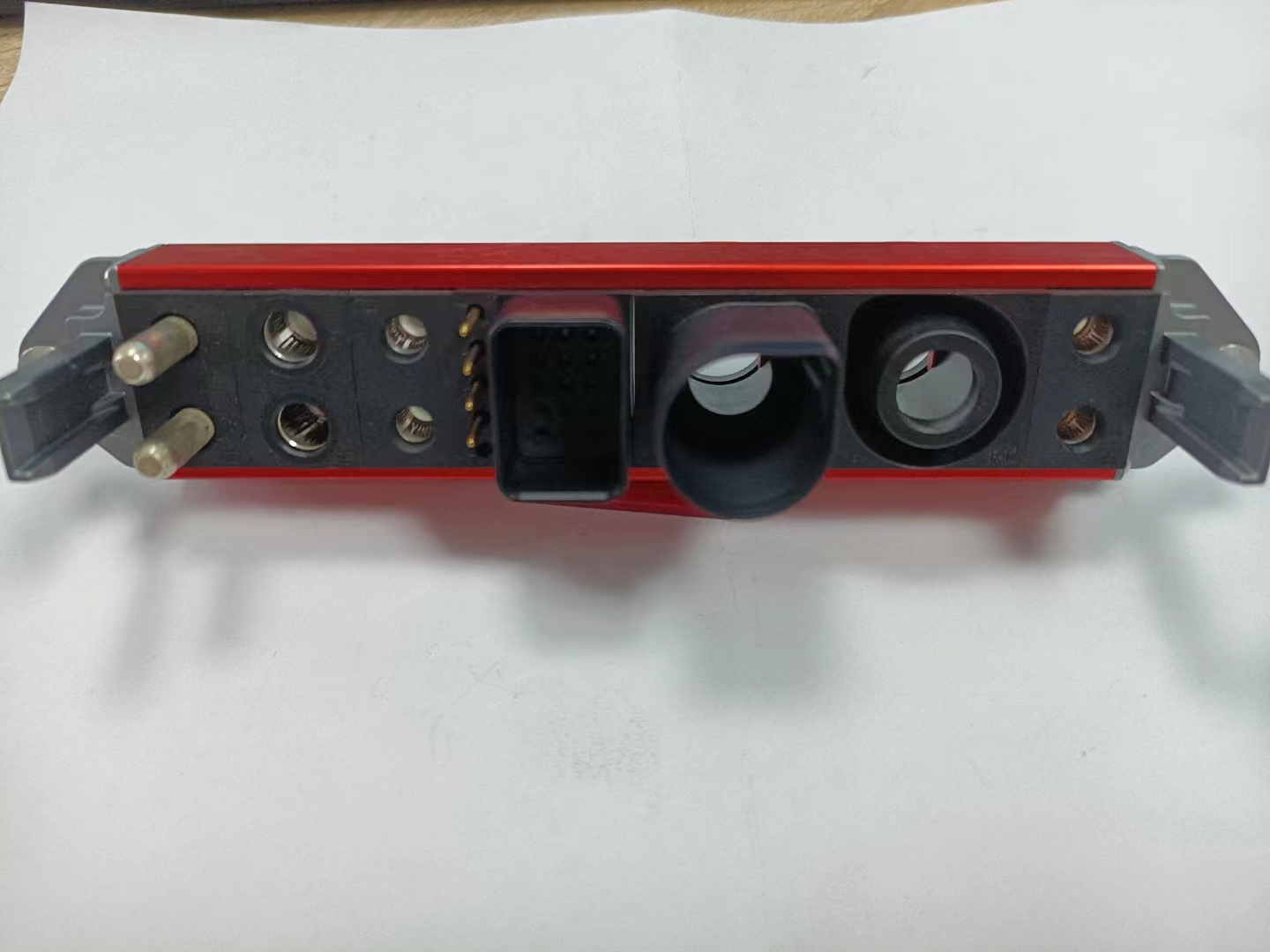

The Meidelong JDE modular connector combines multiple connection types on a single frame or shell, and can be configured according to specific specifications.
JDE module connectors are designed specifically for more demanding applications. It meets the requirements of multifunctionality and high plug and play, and integrates connection types such as power supply, signal, data, fiber optic, liquid, and gas.
JDE module connectors can be 100% customized according to specific dimensions and technical specifications, providing up to 100000 plug and unplug times and a current intensity of 300 A.

Application field:
The Medtronic JDE module connector provides connection solutions for industries such as renewable energy, industrial automation, power transmission and distribution, railways, welding automation, testing and measurement, medical equipment, and electric transportation. Developing reliable, efficient, and safe solutions based on the proven special reed process connection technology can not only achieve efficient energy transmission, but also ensure long-term service life.

Online Inquiry

JDE series: transportation rail connectors, testing and measurement connectors, new energy vehicle connectors
aerospace connectors, military connectors, AGV connectors, industrial automation connectors,
testing and measurement connectors, drone connectors

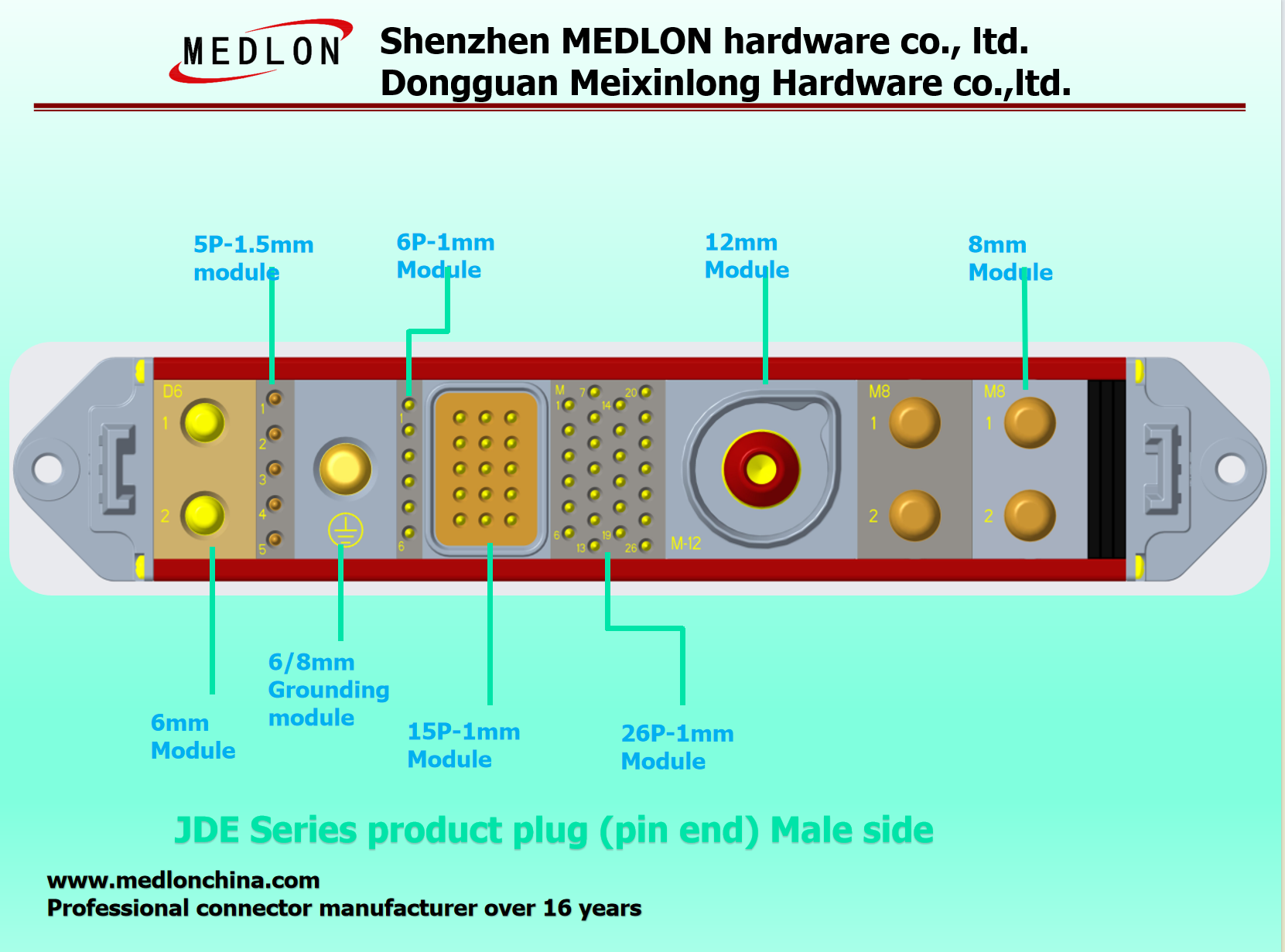

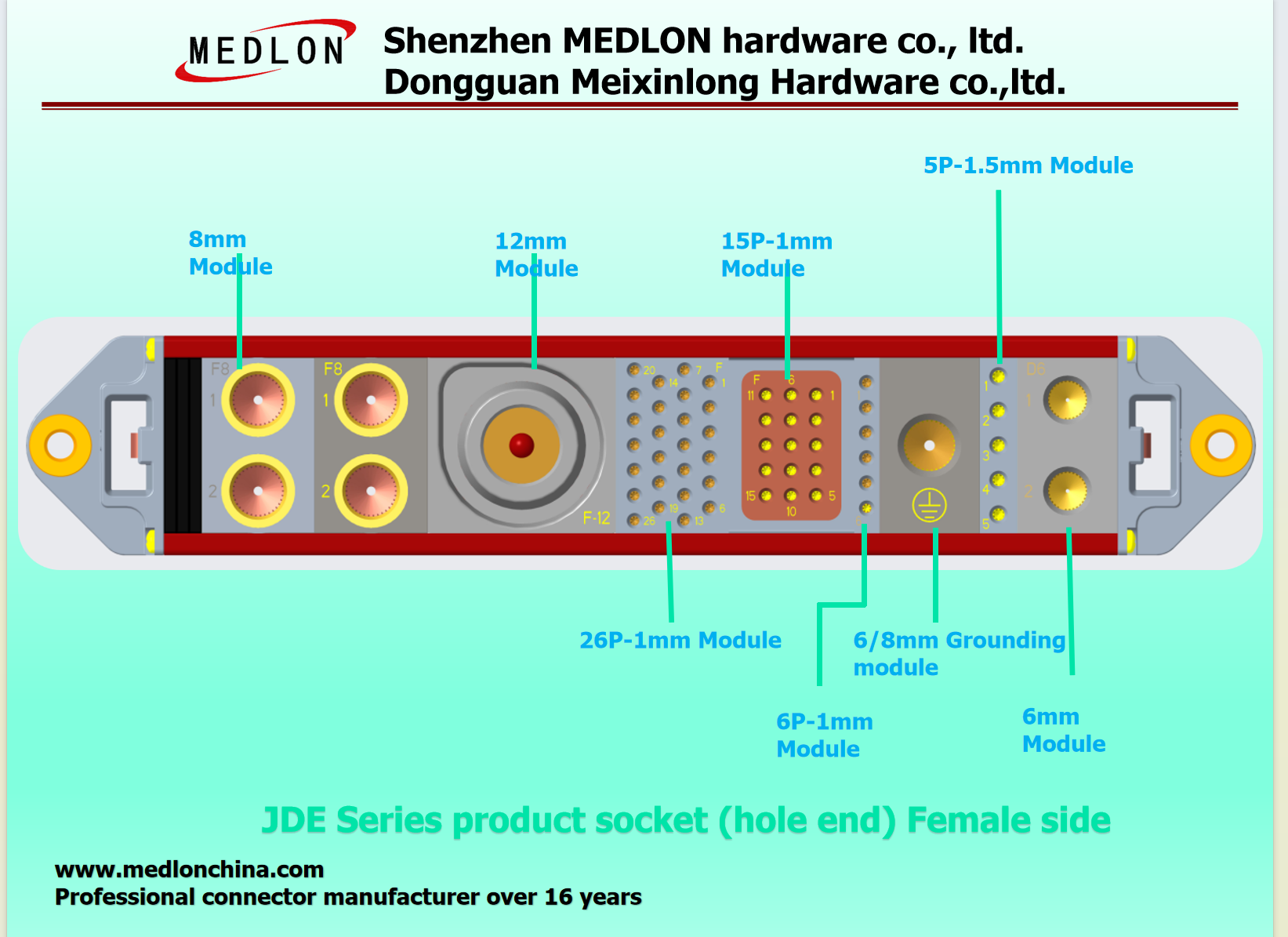

JDE Module connector terminal specifications

Terminal spec.（ø）	Rated current （A）	Cross-sectional area of conductor		Rated Voltage（V）
ø12	200	50	1/0	600
	240	70	2/0
	300	95	4/0
ø8	55	10	8	600
	75	16	6
	100	25	4
	150	35	2
ø6	40	6	10	600
	55	10	8
	75	16	6
ø3.0	25/32	2.5	14	600
ø3.0	32/42	4	12	600
ø1.5	5	0.5	20	600
	8	0.75	18
	10	1.0	18
	10	1.5	16
ø1.0	2	0.25	24	250
	3	0.5	20
	5	0.75	18
