JDC-37T1 & JDC-37Z1
  • JDC-37T1 & JDC-37Z1
  • JDC-37T1 & JDC-37Z1
JDC-37T1 & JDC-37Z1

JDC SERIES Brief introduction:
     JDC series connector is hot-plug, both signal and power in one, which includes core connectors etc. The connector adopts the most advanced crown spring as contact part.

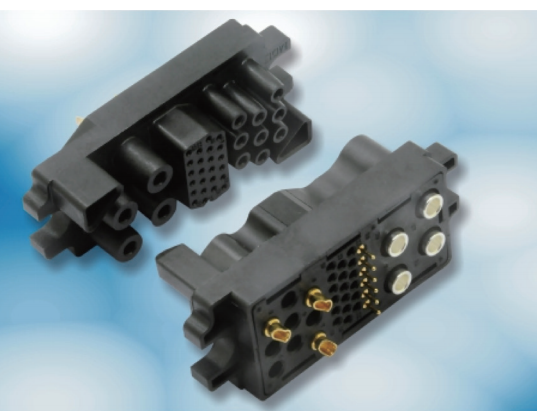

JDC-37Z1/JDC-37T1 Power Connector (Plate shape)

Assemble Sockets):  JDC-37Z1  Female Connector

Assemble Pins):   JDC-37T1  Male Connector

Operating Environment

Operating Temperature

-40℃+125 oC

Main Technical Parameters

Insulation Resistance

≥ 1000MΩ

Mechanical  Life

1000 times

Housing Material

PET  UL94V-0  Black

Contact

Spec.

Signal Contact

Power Contact

20#

12#

8#

Contact Quantity

24

9

4

Rated Current

5A

35A

75A

Contact Resistance

≤5.0mΩ

≤1.0mΩ

≤0.75mΩ

Withstand  Voltage

1000V

1500V

1500V

Surface Finish

20# Gold plated 0ver nickel

8# 12#

Silver plated over nickel

Terminal Style

Crimping(Y)、PCB Tail(B) ,Solder Cup(H)

Material

Pin、jack

Brass or copper alloy

Crown Spring

Beryllium bronze


JDC SERIES Brief introduction:


JDC series connector is hot-plug, both signal and power in one, which includes core connectors etc. The connector adopts the most advanced crown spring as contact part, so the product has high reliability of dynamic contact. And the contacts are silver-gilt except #22 and #20 is gilded. The female connector (T) is installed with the sockets, and the male connector (Z) is installed with the pins. At present the optional terminal styles include crimping, solder cup, PCB tail and thread. We also would be glad to design new products based on the customers’ requirements in a short designing time.

JDC Products Application:

1. Intelligence high frequency switching power supply:Communication power supply, electric power, railway power supply, LED power, solar photovoltaic power
2. UPS/Base station/5G station/E-car new energy area
3. Contravariant power
4. Drawer low-voltage cabinet etc.
5.website:www.medlonchina.com for more information

QC  process
Our Factory

Shenzhen Medlon Hardware products co., ltd. & Dongguan Meixinlong Hardware products co., ltd. are devoted to connecting worldwide together by our Medlon power & signal connectors.
We are a manufacturer of hotswap(hot-plug) connectors and EV charger, which is a Hi-tech company that focuses on designing, maunufacturing and selling connectors as a whole.
Our office is located in Shenzhen,factory located in Donguan, welcome you to have a visit in our office and factory.

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

5. goods are by air or by sea, it's up to valued customer's requirement.



FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take  3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
