wire to wire power connector 25 pin power connector

JDC-25Z-001 & JDC-25T-001

The JDC-25Z-001 and JDC-25T-001 are advanced level switches designed to provide reliable and precise fluid level measurement solutions. These devices incorporate cutting-edge technology and features for detecting changes in fluid levels across various industrial and commercial applications. Whether it is for point-level detection or continuous monitoring, the JDC-25Z-001 and JDC-25T-001 are engineered to cater to your specific requirements. These level switches are crucial for industries such as oil and gas, water treatment, and manufacturing, offering robust designs and versatile capabilities. With their trusted performance in fluid level control and safety, these switches play a pivotal role in managing challenging environments.

Online Inquiry

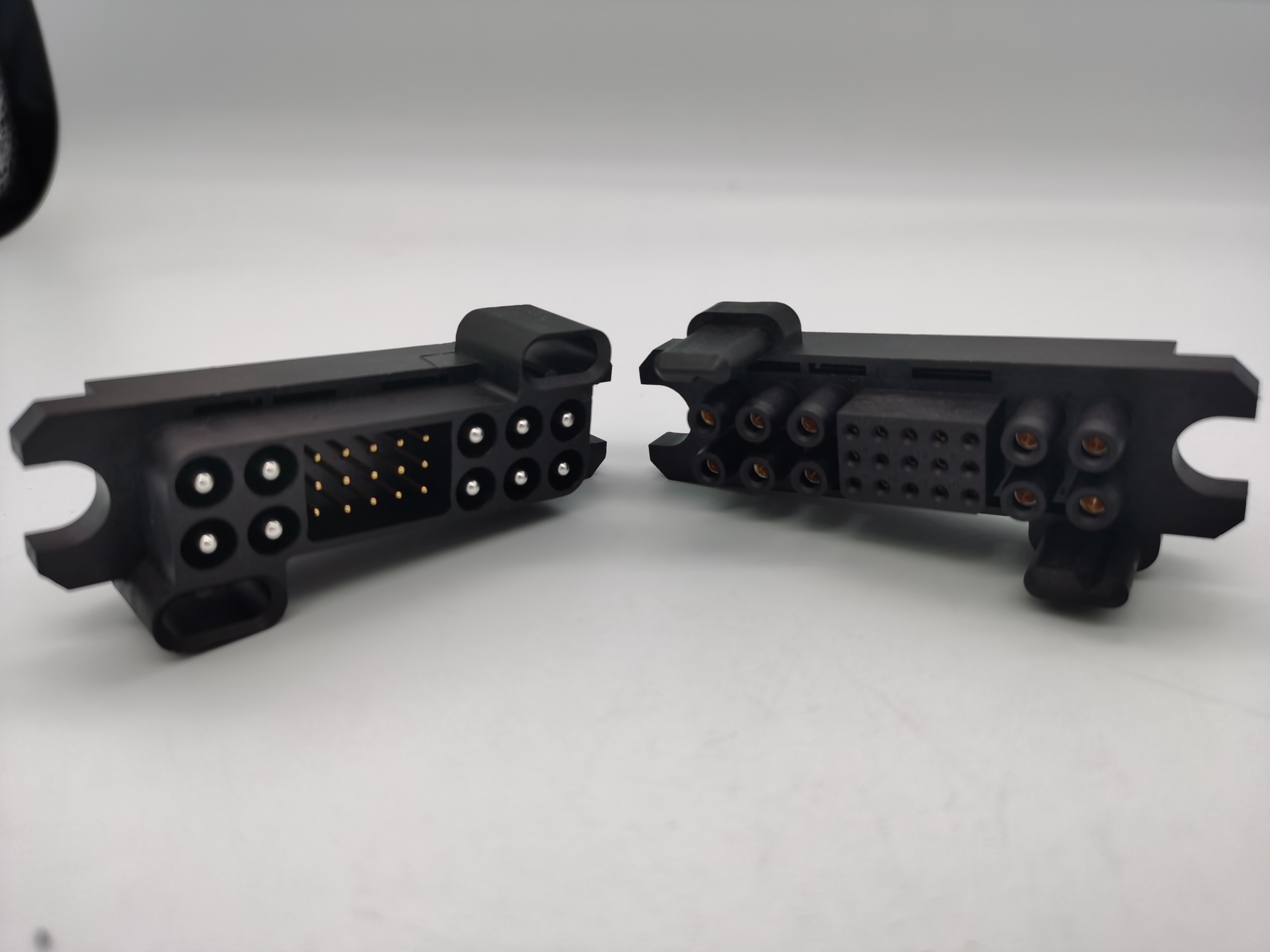

JDC series 25 pin rectangular female male power modular connector wire to wire power connector

Product Information

Product model		JDC-25Z-001 Female Connector JDC-25T-001 Male Connector
Mechanical Life		1000 times
Insulation Resisitance		≥1000MΩ
Housing Material		PET UL94V-0 Black
Contact	Spec	Signal contact 20#	Power contact 12#
	Contact Quantity	15	10
	Rated Current/Rated Voltage	5A/60V AC	35A/500V AC
	Contact Resistance	≤6.7mΩ	≤1.6mΩ
	Withstand Voltage	500V AC	1500V
	Surface Finish	Gold plated over nickel	Silver plated over nickel
	Terminal Style	Crinmping (Y),PCB Tail(B),Solder Cup (H)
	Material	Pin,Jack	Brass or copper alloy
		Crown Spring	Beryllium bronze
Working Temperature		-40℃ ~ +125℃

25 pin power connector

Product Applications

1. Intelligence high frequency switching power supply, communication power supply, electric power,railway power supply,LED power.
2. UPS systems
3. Contravariant power
4. Drawer low-voltage cabinet etc.

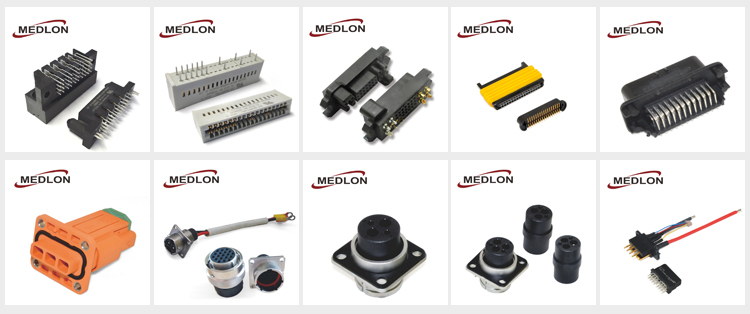

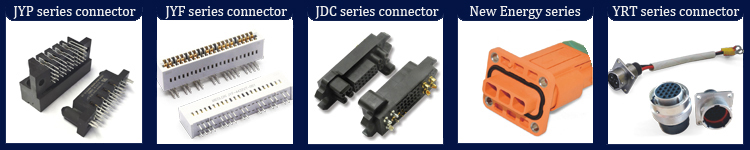

More Products

We are doing the OEM & ODM Connectors based on customers' needs

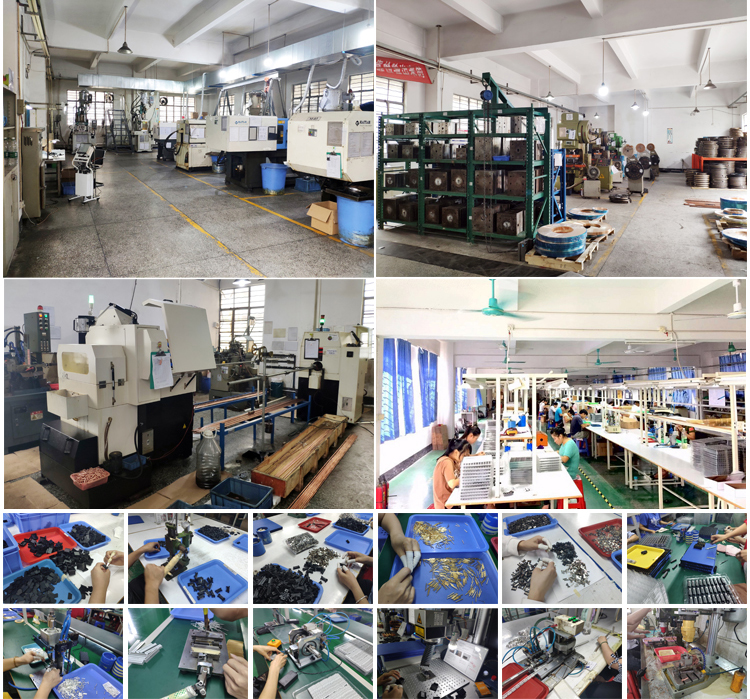

About us

Shenzhen Medlon Hardware Product Co.,Ltd & Dongguan Meixinlong Hardware Products Co.,Ltd was founded in 2006. It is a high-tech private enterprise that focused on desiging,manufacturing and selling connectors, such as EV AC/DC Charger, power module connector, high desity connector, and mobile phone connector. The company’s poducts are widely used in communications power supply, electric power supply , UPS power supply, server, medical , mobile phones and other fileds.
