FEATURES & BENEFITS 1. High power contact option (up to 50A/contact; 30°C temperature rise in still air) for cost-effective power 2.Delivery in 1U and 2U power supplies or power distribution applications 3.Low power contact option (up to 40A/contact; 30°C temperature rise in still air) for applications with multiple voltages and lower power requirements 4. Highly vented housing design maximizes heat dissipation for effective system cooling 5. Half-bullet guides offer a reduced connector footprint 6. Large operating temperature range (-40°C to +125°C) for extreme environments 7. Right angle and co-planar options are available with both power contacts for power distribution and signal contacts for power control 8. Number and placement of power and signal contacts are highly configurable for customer's power needs 9. Solder or press-fit tails are available for termination flexibility 10.Compatible with lead-free processing temperatures TARGET MARKETS/APPLICATIONS 1. AC/DC pluggable power supplies in data, telecom & datacom/networking equipment 2. Industrial PCs 3. Industrial controls & instrumentation 4. Medical equimpent TECHNICAL INFORMATION MATERIALS 1.Housing : PBTUL94V-0 (High performance thermoplastic PPA+15% glassfiber, UL 94-0) 2. High-temperature thermoplastic (UL 94 V-0), black 3.Power contact base metal 4. High-conductivity copper alloy 5. Contact finish: Separable interface: 30μin. (0.76μm) performance –based plating over nickel Contact A: Phosphor Bronze; Gold plating over Nickel on contact area;Tin Plating on Solder Tail. Contact B: Brass; Gold plating over Nickel on contact area Tin Plating on Solder Tail. 6. Board connector solder tail area: Matte tin over nickel
ELECTRICAL PERFORMANCE
1. High power current rating: Up to 50A/contact (30°C T-rise in still air)
2. Low power current rating: Up to 25A/contact (30°C T-rise in still air)
3. Operating Voltage
• High power contacts: 912V max. (fully loaded)
• Low power/signal contacts: 124V max. (fully loaded)
• Dielectric withstanding voltage
• High power contacts: 2500V
• Low power/signal contacts: 1000V
4. Insulation resistance
• High/low power contacts: > 2,000MΩ initially as well as after environmental exposure
• Signal contacts: > 500MΩ initially as well as after environmental exposure
5. Contact resistance
• High power contacts: ≤0.7mΩ initially and after environmental exposure
• Low power contacts: ≤1.5mΩ initially and after environmental exposure
• Signal contacts: ≤20mΩ initially and after environmental exposure
Environmental
Operating Temperature: -45°C to +105°C
JYP series products are mainly used in power distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc.
Shenzhen Medlon Hardware Product Co.,Ltd & Dongguan Meixinlong Hardware Products Co.,Ltd was founded in 2006. It is a high-tech private enterprise that focused on desiging,manufacturing and selling connectors, such as EV AC/DC Charger, power module connector, high desity connector, and mobile phone connector. The company’s poducts are widely used in communications power supply, electric power supply , UPS power supply, server, medical , mobile phones and other fileds.
Hot Tags: board to board connector,power connector,round connector
Tags: About MEDLON, more connector products
More Products
We are doing the OEM & ODM Connectors based on customers' needs
About us
Workingh Environment
Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising）
Relative Humidity：40℃时，95%
Vibration： 20~500Hz， 490m/s²
Shock： Acceleration 490m/s²
Electri Performance
|
Contact Specification |
Contact Resistance （mΩ） |
Rated Current （A） |
Voltage Rating （V） |
Withstand Voltage |
lnsulation Resistance |
|
500VDC/1Min |
500VDC/1Min |
||||
|
Signal contacts （2.54mm pitch） Signal contact (2.54mm Pitch) |
≤20mΩ |
Below 25 pcs,2.5A/pin |
50V |
1000V |
≥2000MΩ |
|
25-48 pcs,1.5A/pin |
|||||
|
Over 48pcs,1A/pin |
|||||
|
Power contacts (5.08mm Pitch) |
≤2mΩ |
40A |
250V |
2500V |
≥2000MΩ |
|
Power contact (6.35mm Pitch) |
250V |
2500V |
|||
|
Power contact (7.62mm Pitch) |
300V |
2500V |
|||
|
Power contact (9.525mm Pitch) |
300V |
2500V |
Technical Performance
|
|
Contact stability |
Single contact insertion force |
|
|
Signal contact |
≥10N |
≤1N |
≥0.2N |
|
Power contact |
≥30N |
≤5N |
≥2.2N |
Mechanical Life :250 times

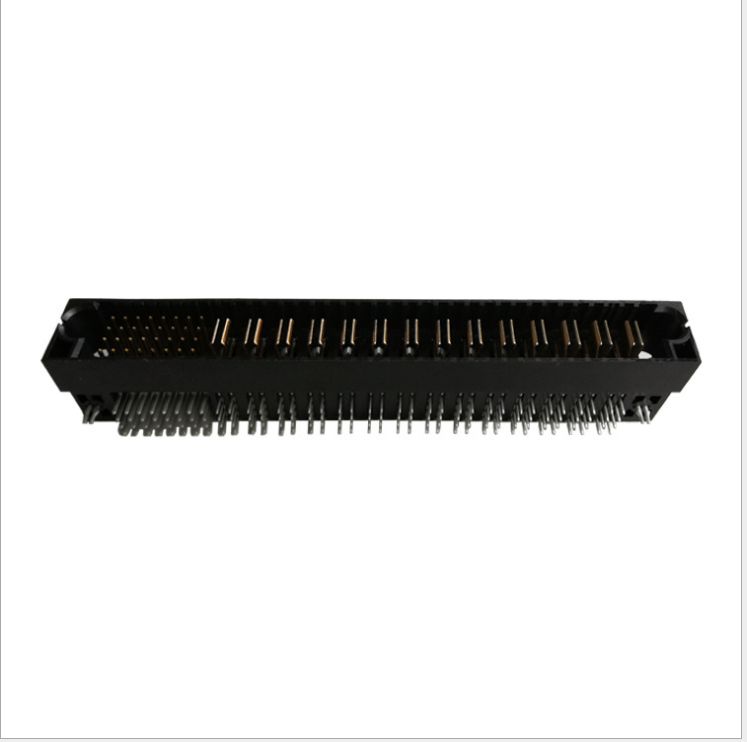

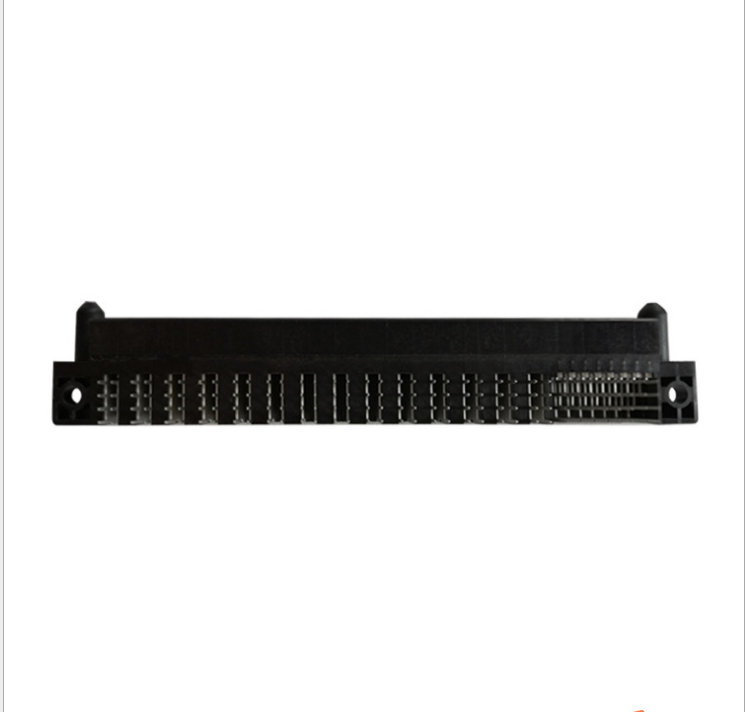

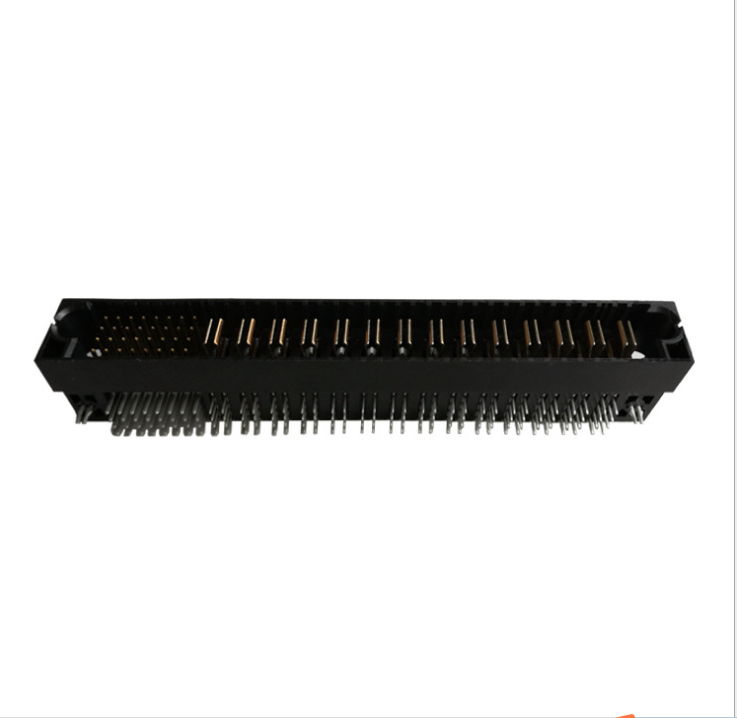

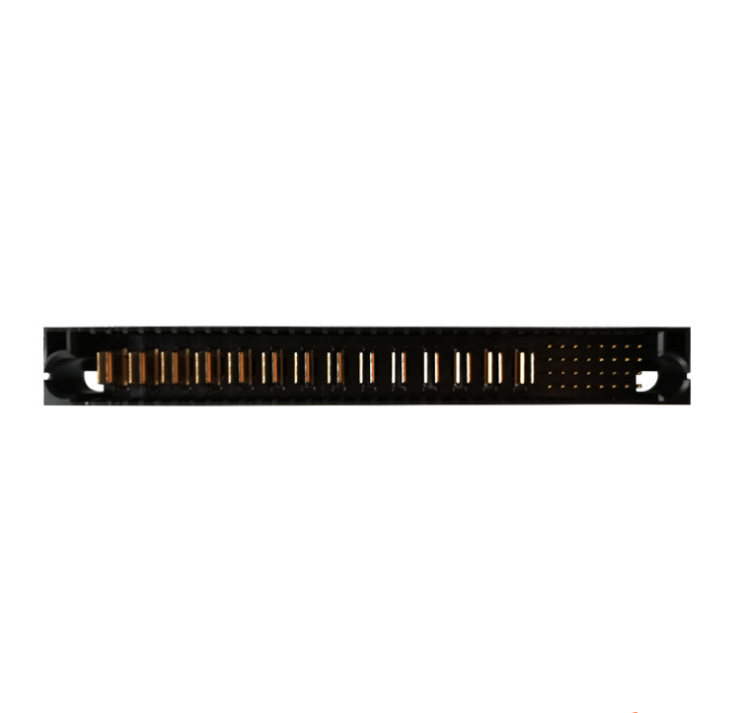

High Power Connector 65A
32 Signal + 14 Power Blade Style Contact
Offers solutions for power supplies and host-to-card interface.
Also provide customized power distribution solutions to integrate connector, PCB and bus bar technologies.
* Keyed to eliminate misalignment
* Open blade design for greater heat dissipation
* Can be used for both AC and DC power
* 65A per power contact 2.5A per Signal pin
* Left & right guides for 4 direction blind mating
* DC Power 6.35mm and 5.08mm pitch, AC Power 7.62mm Pitch
* Very low power contact resistance 0.70mΩ to minimize heat
* Single blade with multiple points of contact for stable and secure mating
* Combine power & signal to increase flexibility and versatility in use for
customers's designs.
Product Application
JYP series connector application area are tele. communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc.
workingh environment
Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising）
Relative Humidity：40℃时，95%
Vibration： 20~500Hz， 490m/s²
Shock： Acceleration 490m/ s²
Electri Performance
|
Contact Specification |
Contact Resistance （mΩ） |
Rated Current （A） |
Voltage Rating （V） |
Withstand Voltage |
lnsulation Resistance |
|
500VDC/1Min |
500VDC/1Min |
||||
|
Signal contacts （2.54mm pitch） Signal contact (2.54mm Pitch) |
≤20mΩ |
Below 25 pcs,2.5A/pin |
50V |
1000V |
≥2000MΩ |
|
25-48 pcs,1.5A/pin |
|||||
|
Over 48pcs,1A/pin |
|||||
|
Power contacts (5.08mm Pitch) |
≤2mΩ |
40A |
250V |
2500V |
≥2000MΩ |
|
Power contact (6.35mm Pitch) |
250V |
2500V |
|||
|
Power contact (7.62mm Pitch) |
300V |
2500V |
|||
|
Power contact (9.525mm Pitch) |
300V |
2500V |
Technical Performance
|
Contact Type |
Contact stability |
Single contact insertion force |
Single contact withdraw force |
|
Signal contact |
≥10N |
≤1N |
≥0.2N |
|
Power contact |
≥30N |
≤5N |
≥2.2N |
Mechanical Life :250 times
