Power Connector, MDL(MEDLON) Power Connector

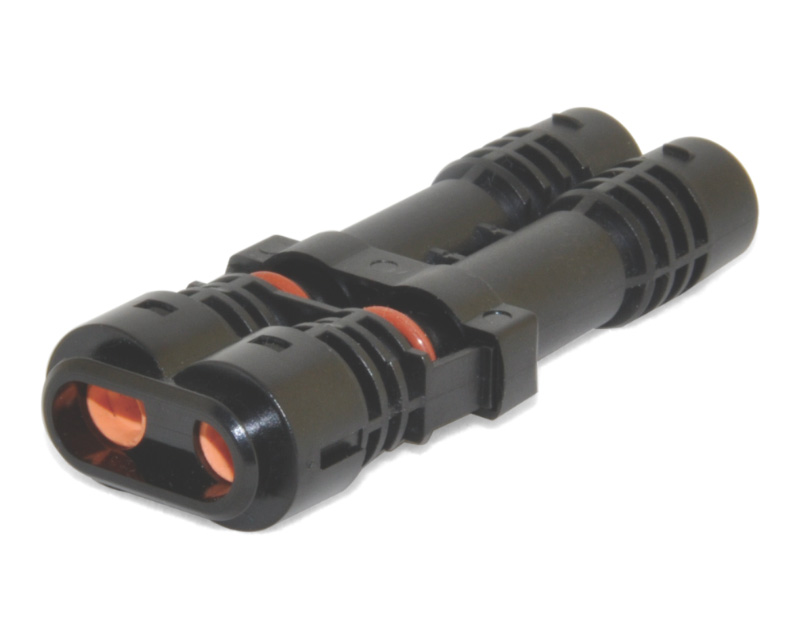

MDL(MEDLON) 2-Pin High-Voltage Automotive EV Connector

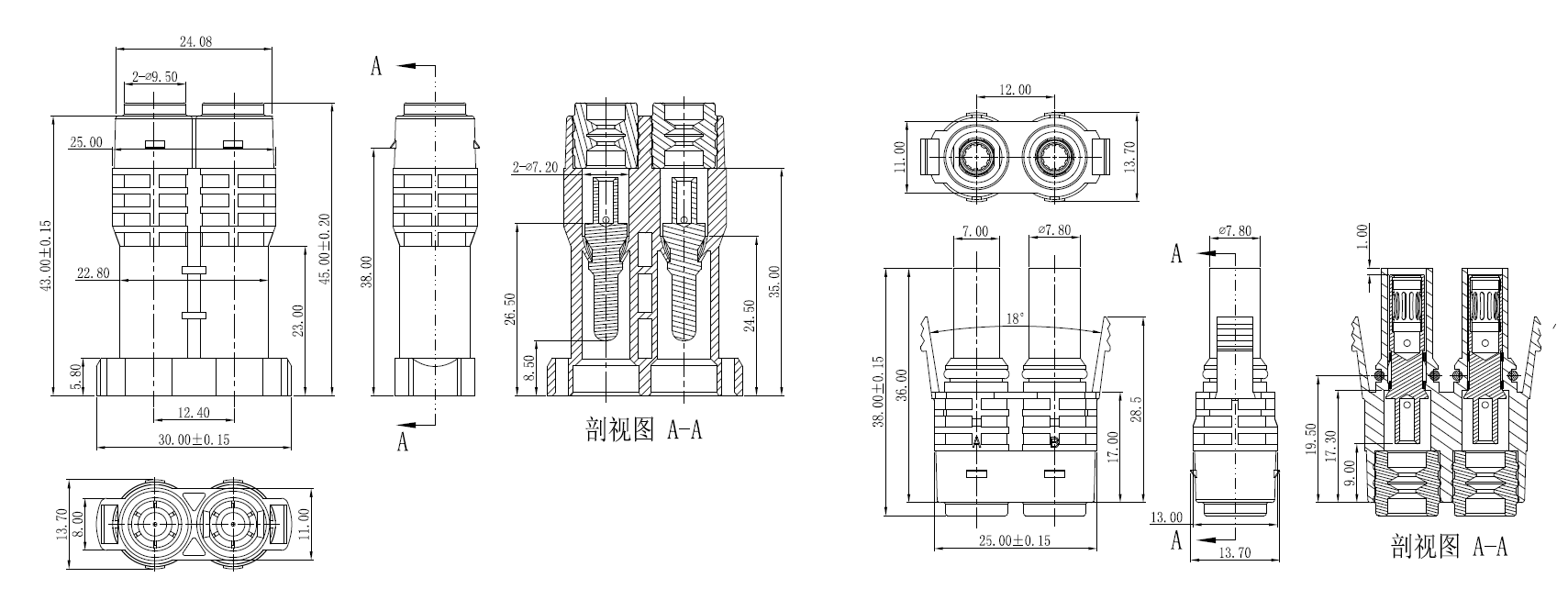

Assemble Sockets: HV-2Z-001  Female  Connector
Assemble Pins）: HV-2T-001  Male  Connector

Operating Environment

Operating Temperature

-40℃～+125^oC

lnsulation Resistance		≥ 500MΩ ≥ 100MΩ
Mechanical Life		500Second
Housing Material		PC UL94V-0 Black
Contact	Spec	8#
	Contact Quantity	2
	Rated Current	48A
	Rated Voltage	1000V DC
	Contact Resistance	≤0.75mΩ
	Withstand Voltage	Normal: contact parts4000V，Between insulators and contact parts3000V Humid heat: between contact parts2000V，Between insulators and contact parts1500V
	Surface Finish	Pins： Silver plated over nickel Sockets：Silver plated over nickel
	TerminalStyle	Pin and socket typeCrimping(Y)
	Material	Pin、jack	Brass or copper alloy
		Crown Spring	Beryllium bronze
