JYP-F0805D-VT81R ( 8 signal contacts + 5 power contacts)MEDLON(MDL)
  • JYP-F0805D-VT81R ( 8 signal contacts + 5 power contacts)MEDLON(MDL)
JYP-F0805D-VT81R ( 8 signal contacts + 5 power contacts)MEDLON(MDL)

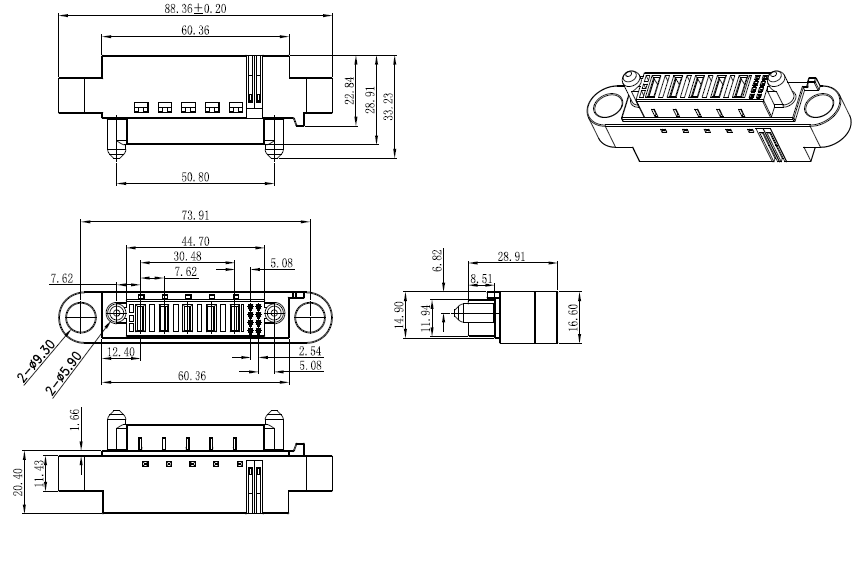

08S+05P  180°
JYP-F0805D-VT81R

FEATURES & BENEFITS
1. High power contact option (up to 50A/contact; 30°C temperature rise in still air) for cost-effective power
2.Delivery in 1U and 2U power supplies or power distribution applications
3.Low power contact  option (up to 40A/contact; 30°C temperature rise in still air) for applications with multiple voltages and lower power requirements
4. Highly vented housing design maximizes heat dissipation for effective system cooling
5. Half-bullet guides offer a reduced connector footprint
6. Large operating temperature range (-40°C to +125°C)for extreme environments
7. Right angle and co-planar options are available with both power contacts for power distribution and signal contacts for power control
8. Number and placement of power and signal contacts are highly configurable for custom power needs
9. Solder or press-fit tails are available for termination flexibility
10.Compatible with lead-free processing temperatures

TARGET MARKETS/APPLICATIONS
1. AC/DC pluggable power supplies in data, telecom &
datacom/networking equipment
2. Industrial PCs
3. Industrial controls & instrumentation
4. Medical

TECHNICAL INFORMATION
MATERIALS
1.Housing : PBTUL94V-0
2. High-temperature thermoplastic (UL 94 V-0), black
3.Power contact base metal
4. High-conductivity copper alloy
5. Contact finish: Separable interface: 30μin. (0.76μm) performance –based plating over nickel
Contact A: Phosphor Bronze; Gold plating over Nickel on contact area;Tin Plating on Solder Tail.
Contact B: Brass; Gold plating over Nickel on contact area Tin Plating on Solder Tail.
6. Board connector solder tail area: Matte tin over nickel

Shell: Brass;Tin Plating on Solder Tail.
ELECTRICAL PERFORMANCE
1. High power current rating: Up to 50A/contact (30°C T-rise in still air)
2. Low power current rating: Up to 40A/contact (30°C T-rise in still air)
3. Operating Voltage
• High power contacts: 912V max. (fully loaded)
• Low power/signal contacts: 124V max. (fully loaded)
• Dielectric withstanding voltage
• High power contacts: 2500V
• Low power/signal contacts: 1000V
4. Insulation resistance
• High/low power contacts: > 2,000MΩ initially
as well as after environmental exposure
• Signal contacts: > 500MΩ initially as well
as after environmental exposure
5. Contact resistance
• High power contacts: ≤0.7mΩ initially and after
environmental exposure
• Low power contacts: ≤1.5mΩ initially and after
environmental exposure
• Signal contacts: ≤20mΩ initially and after

Environmental
Operating Temperature: -55°C to +105°C

Operating Environment

Operating Temperature

-40℃~+125 oC


 lnsulation Resistance

2000 mΩ

 Mechanical Life

500

 Housing Material

PPA  UL94V-0  Black


Contact

 Spec.

(power contact)

  (signal contact)

Contact Quantity

5

            8

 Contact Distance

7.62mm

2.54mm

 Rated Current

40A

2.5A

 Rated Voltage

250V

50V

Contact Resistance

2mΩ

20mΩ

 Withstand Voltage

2500V

1000V

 Terminal Style

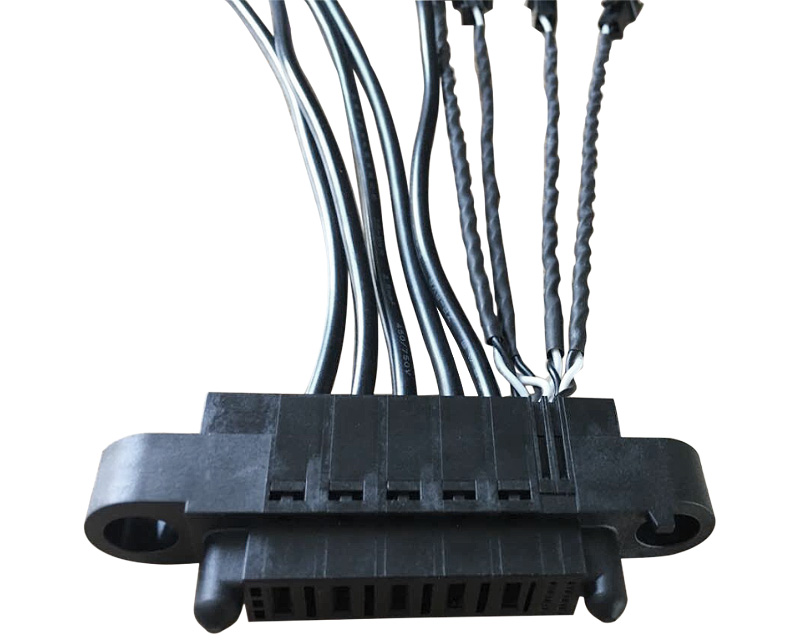

(The power supply terminal and the signal terminal are all connected by pressing and wiring)

 Material

 (High performance copper alloy)

(High performance copper alloy)
