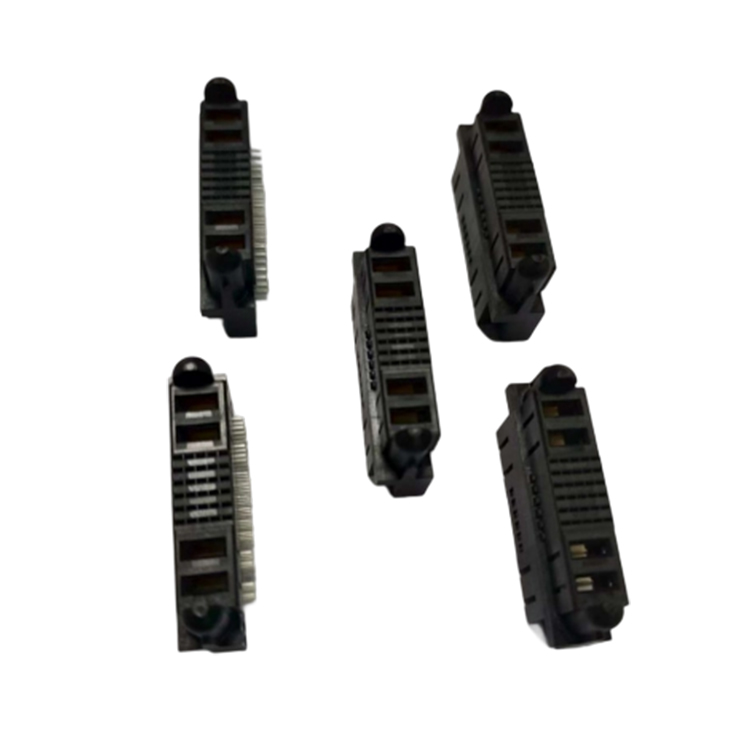

A. Terminal: High performance copper alloy

B. Shell: High temperature resistant thermoplastic UL94V-0， Black.

2. Electroplating:

A: Power terminal: gold-plated 30u "(measuring point) in the contact area; Spray tin 50u "Min in the soldering area; The entire terminal has a nickel base of 50u "Min;

B: signal terminal: gold-plated with 30u (measuring point) in the contact area; Spray tin 50u "Min in the soldering area; The entire terminal has a nickel base of 50u "Min;

C: fixing pins: tin plated 50u" Min, nickel base 50u "Min;

3. Electrical performance requirements:

Rated voltage: power terminal 182VAC; Signal terminal 39VAC; Rated current: power terminal single Pin52A; Signal terminal 3A; withstand voltage: 2500VDC power terminal without breakdown for 1 minute

1000V DC signal terminal without breakdown for 1 minute: insulation resistance: 1000MEGOHMI power terminal: 500EG contact resistance: power terminal ≤ 0.3m Ω (initial state); Signal terminal ≤ 30m Ω; operating temperature: -40 ℃ TO+125 ℃

3. Mechanical performance requirements:

4. Plug and unplug lifespan: 250 times;

5. Packaging method: Blister box packaging

6. The product complies with the latest ROHS standards;
