1. Material:

A. Terminal: High performance copper alloy

B. Shell: High temperature resistant thermoplastic UL94V-0， Black

2. Electroplating:

A. Power terminals: gold-plated in the contact area, tin plated in the soldering area, and nickel plated throughout the entire terminal; B. Signal terminals: Gold plated in the contact area, tin plated in the soldering area, and nickel plated throughout the entire terminal;

C. Fixed feet: coated with matte tin on a nickel substrate;

3 Electrical performance requirements:

Rated voltage: power terminal 250Vac; Signal terminal 50Vac; Rated current: power terminal 40A; signal terminal 2.5A;

Voltage endurance: 2500VDC power terminal without breakdown for 1 minute, 1000VDC signal terminal without breakdown for 1 minute: Insulation resistance: 2000MEGOHMMI power terminal: 2000MEGOHM terminal: Contact resistance: power terminal ≤ 2m Ω; signal terminal ≤ 20m Ω; operating temperature: -40 ℃ TO+125 ℃

Mechanical performance requirements:

Plug and unplug lifespan: 250 times;

Packaging method: Blister box packaging:

The product complies with the latest ROHS standards

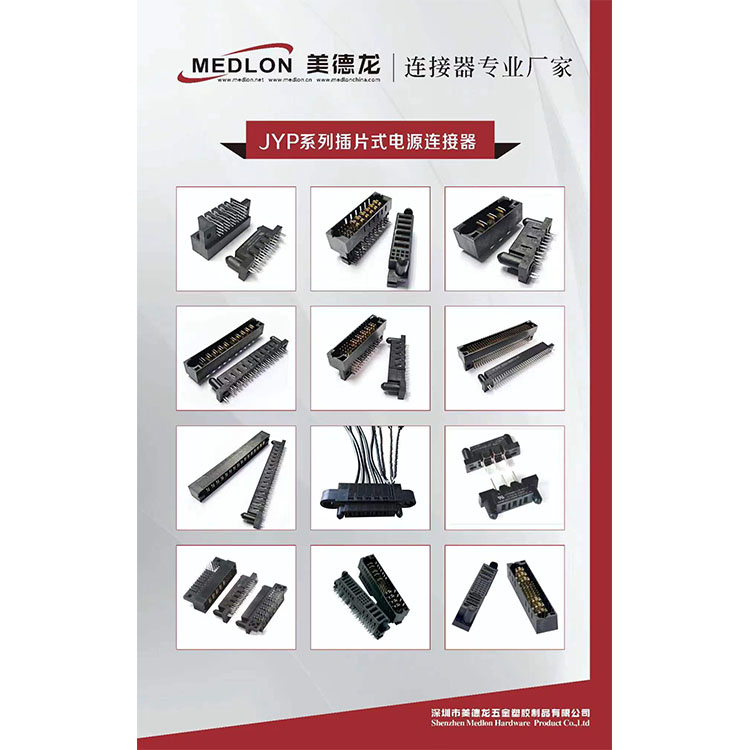

7. Order part number: JYP-F2808B-VT45R (TE 6450542-2) 28 signal pins + 8 power pins ,pitch 6.35mm  powerblade connector
