JDC-13Z & JDC-13T-JYP/JDC/JYF/YRT/JYZ series connector with 25A/pin, 70A/Pin, 80A/pin

JDC-13Z & JDC-13T

Product Information                                                                Product model                                        JDC-13Z &amp; JDC-13T (Female and Male Connector)                                                        Mechanical Lif

Online Inquiry

Product Information

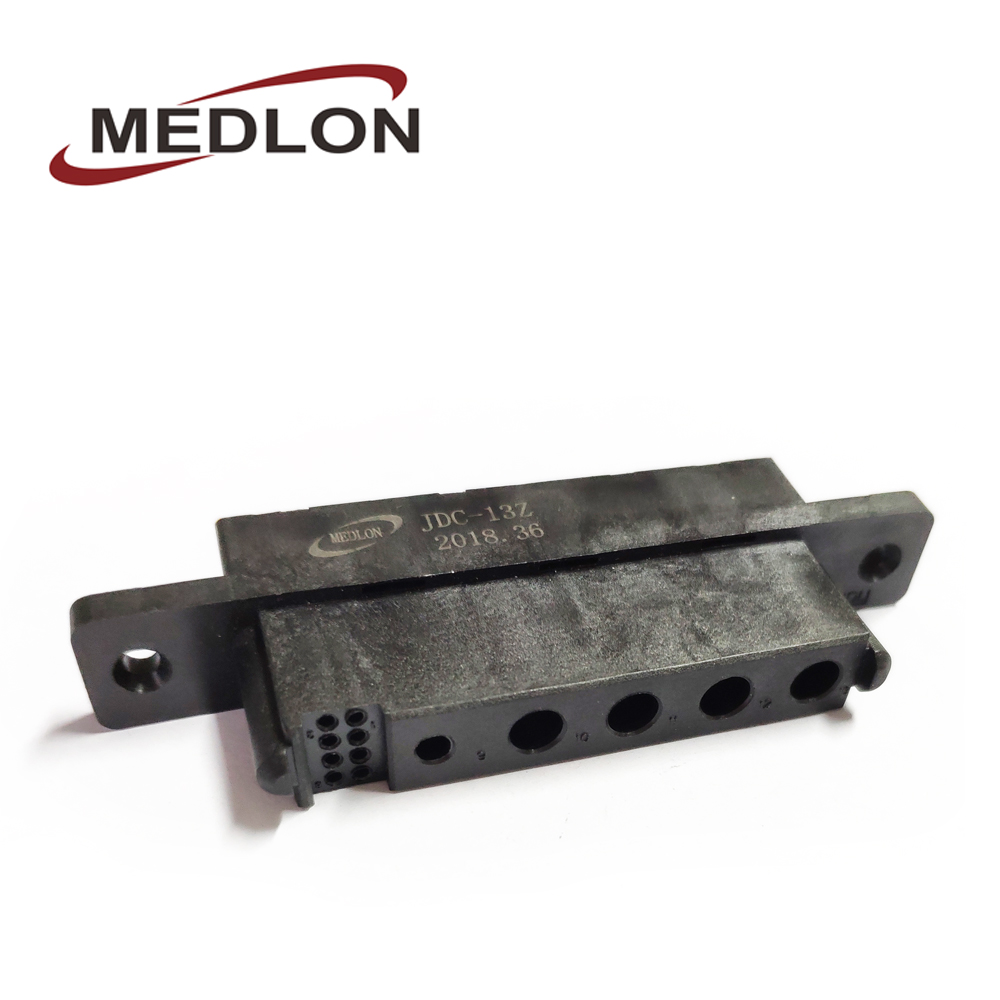

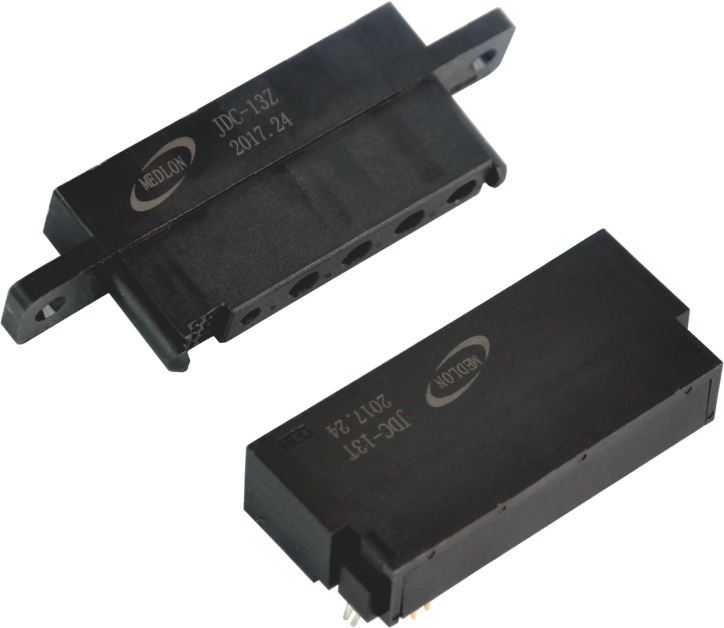

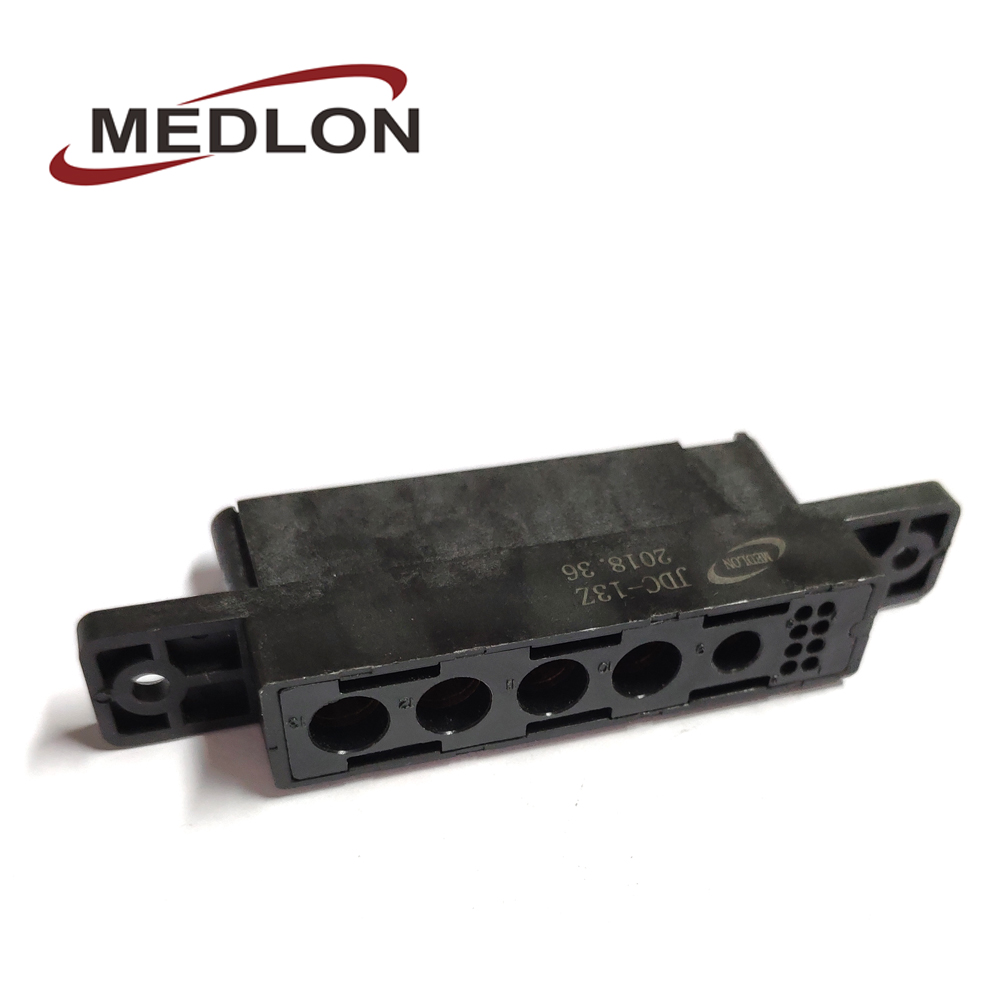

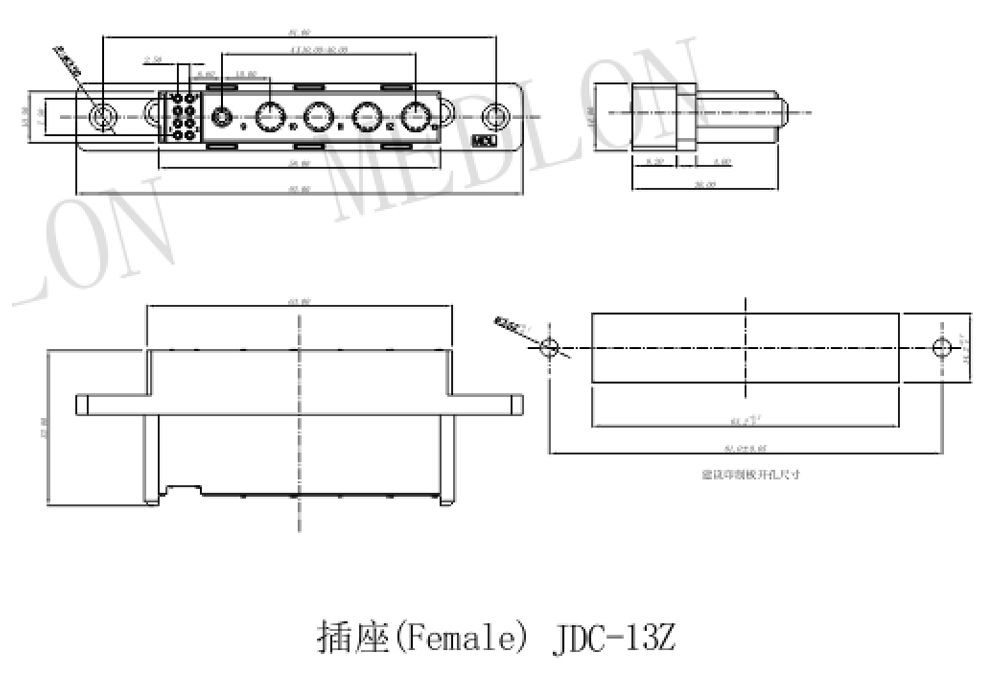

Product model		JDC-13Z & JDC-13T (Female and Male Connector)
Mechanical Life		500 times
Insulation Resisitance		≥3000MΩ (normal temperature) ; ≥100MΩ (damp and hot)
Housing Material		PET UL94V-0 Black
Contact	Spec	22#	10#	Diameter 5.0
	Contact Quantity	8	1	4
	Rated Current	2A	35A	75A
	Rated Voltage	80V DC	450V DC	600V DC
	Contact Resistance	≤12.0mΩ	≤1.0mΩ	≤0.5mΩ
	Withstand Voltage	1200V AC (normal temperature) 500V AC (damp and hot)
	Surface Finish	Gold plated over nickel	Silver plated over nickel
	Terminal Style	Sockets: Crimping (Y); Pins: PCB Solder Cup (H)
	Material	Pin,Jack	Brass or copper alloy
		Crown Spring	Beryllium bronze
Working Temperature		-40℃ ~ +125℃

Product Applications

1. Intelligence high frequency switching power supply, communication power supply, electric power,railway power supply,LED power.
2. UPS systems
3. Contravariant power
4. Drawer low-voltage cabinet etc.

More Products

We are doing the OEM & ODM Connectors based on customers' needs

About us

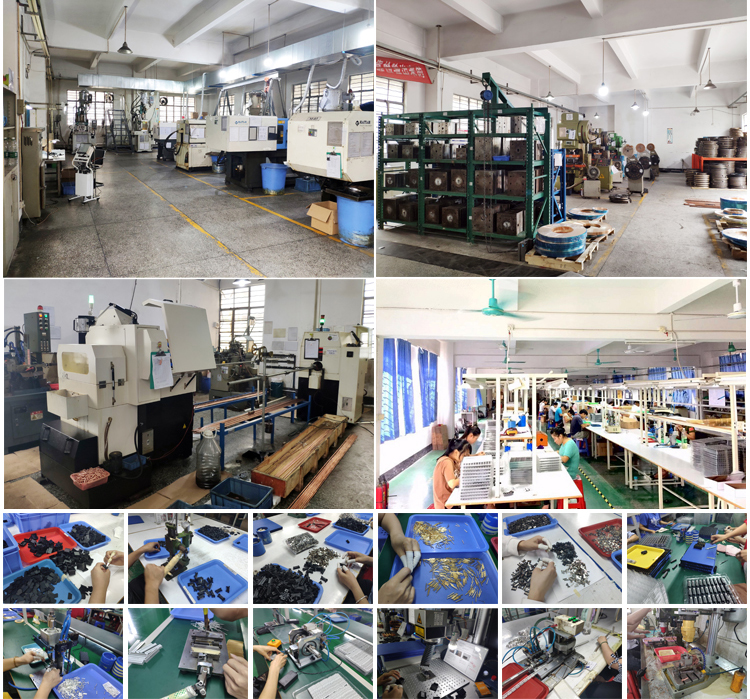

Shenzhen Medlon Hardware Product Co.,Ltd & Dongguan Meixinlong Hardware Products Co.,Ltd was founded in 2006. It is a high-tech private enterprise that focused on desiging,manufacturing and selling connectors, such as EV AC/DC Charger, power module connector, high desity connector, and mobile phone connector. The company’s poducts are widely used in communications power supply, electric power supply , UPS power supply, server, medical , mobile phones and other fileds.
