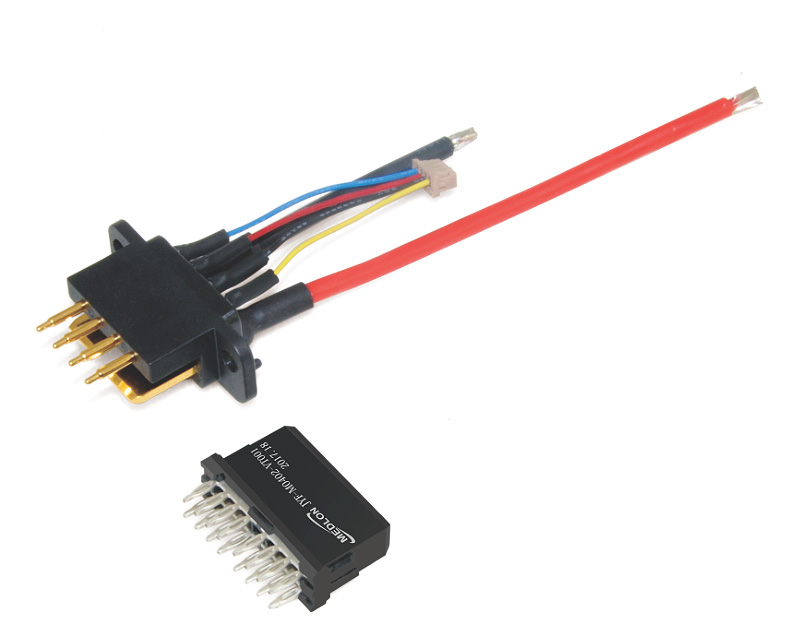

UAV connector JYF-M0402-VT001 MEDLON(MDL)

JYF UAV DRONE Modules Plug MEDLON(MDL)

JYF UAV JYF-M0402-VT001 MEDLON(MDL)  Operating Environment
  Operating Temperature                -40～+105 oC

Operating Environment

Operating Temperature

-40～+105^oC

Mechanical Life		5000
Housing Material		Thermo plastic high temperature resistant plastic.UL94-V0,Black.
Contact	Spec	（power contact 2pin）	（signal contact 4pin）
	Voltage rating	450V AC	36V DC
	Rated Current	40A/PIN	3A/PIN
	Contact Resistance	≤2mΩ	≤25mΩ
	Insulation impedance	≥ 5000MΩ	≥ 5000MΩ
	Withstand Voltage	1500V DC	500V DC
	Retention	15N Min/Pin	8N Min/Pin
	Surface Treatment	Surface gilding
	Terminal Style	Welding type
	Material	High performance copper alloy
