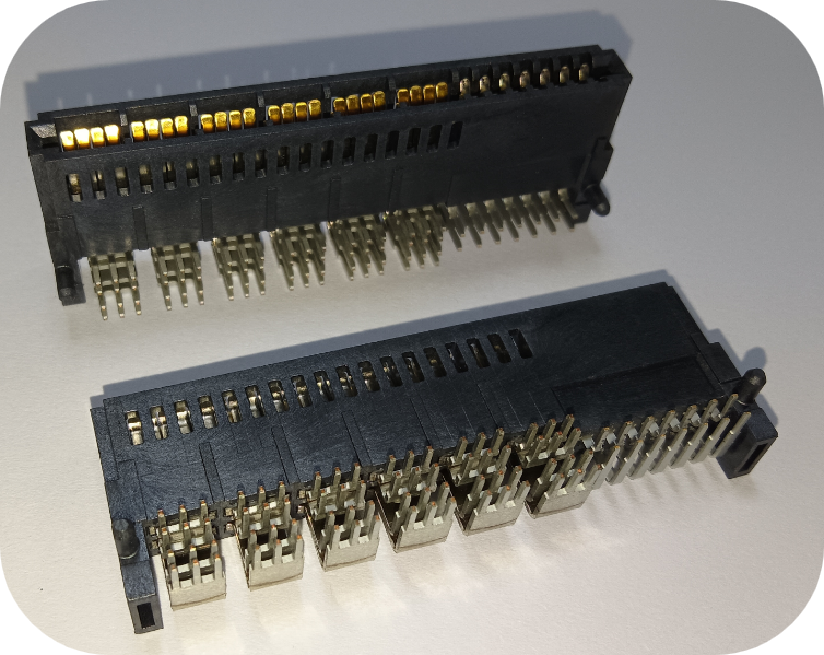

JYF-F1412B-RT301  JYF  P12+S14 card edge connector

Material:

Insulator: High temperature resistant thermoplastic, UL94-V0, black;

Terminal: High performance copper alloy, contact area gold-plated, pins misted with tin;

Fixed feet: High performance copper alloy, surface tin plated;

Material:

Insulator: High temperature resistant thermoplastic, UL94-V0, black;

Terminal: High performance copper alloy, contact area gold-plated, pins misted with tin;

Electrical performance:

Rated current: Power supply Pin 51.5A; Signal Pin 3A;

Voltage withstand: 1000V DC power supply terminal has no breakdown for 1 minute;

500V DC signal terminal has no breakdown for 1 minute;

Contact impedance: Power terminal ≤ 0.6m Ω;

Signal terminal ≤ 25 m Ω;

Insulation resistance: 5000 MEG OHM MIN power terminal;

500 MEG OHM MIN signal terminals;

Working temperature: -55 ℃~105 ℃
