Product Name：Female,R/A,50PIN，Selected by customer 50-pin RT (right angle through) female receptacle, typically used for electrical device connections. With 50 pins, it provides a high-density interface for electronic connections. Its right-angle perforation design facilitates connections in tight spaces. The Mellon (MDL) connector, also known as the 50-pin Mellon connector, is a standard connector type that provides a highly reliable connection to the circuit board. Commonly used in data transmission and communication equipment, this type of connector is suitable for a variety of industrial and commercial applications, providing stability and performance for a reliable connection between equipment.
|
Product Name |
Female,R/A,50PIN |
Selected by customer |
JYF-50XXRT-00N |
|
|

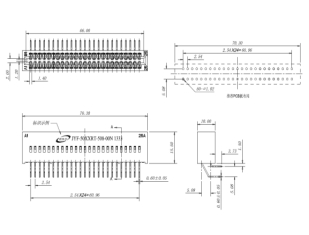

Quantity of Pin hole in the housing is 50,25PIN at A row & B row, Customer could choose the number and the position of contacts,A&B row has 1-25 Pins from left to right, The distance between two rows contact tail is 2.54mm or 5.08mm |
||||
|
Curved socket: pitch 2.54mm |
Curved socket: pitch 5.08mm |
|||
|
|
|
|||
Product Application
Contact Pitch is 2.54mm, contact tail: through hole, mating with 1.60±0.20mm thickness PCB gold finger, used in the PCB connection of communications equipment, precision instrument，computer etc.
Work environment
Operating Temperature ：-55℃~+125℃（Include 40℃ temperature rise）
Relative Humidity ：40℃，90-95%
Air pressure ：40KPa
Shock： Acceleration300m/ s²
Mian Technical Parameters
Rated Current：3A（20℃）
Contact Resistance：≤25mΩ
lnsulation Resistance：≥1000MΩ
Voltage Rating ：300V AC
Withstand Voltage：750V
Mechanical Life：500 times
Insertion Force Per Pin ≤2N withdraw force Per PIN≥1.2N

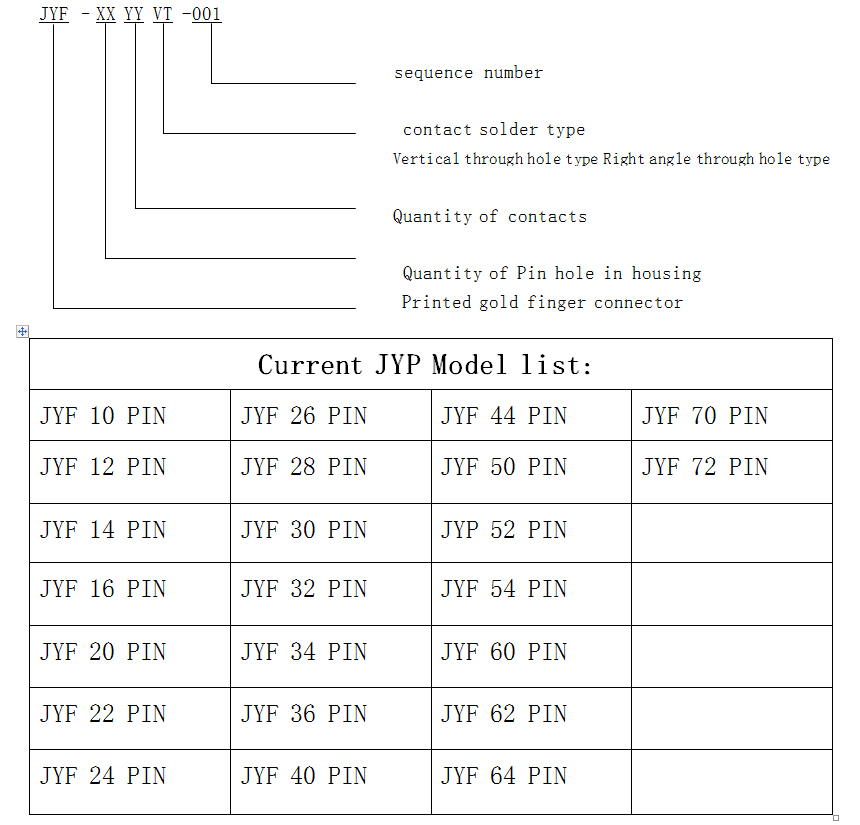

Part Number System
