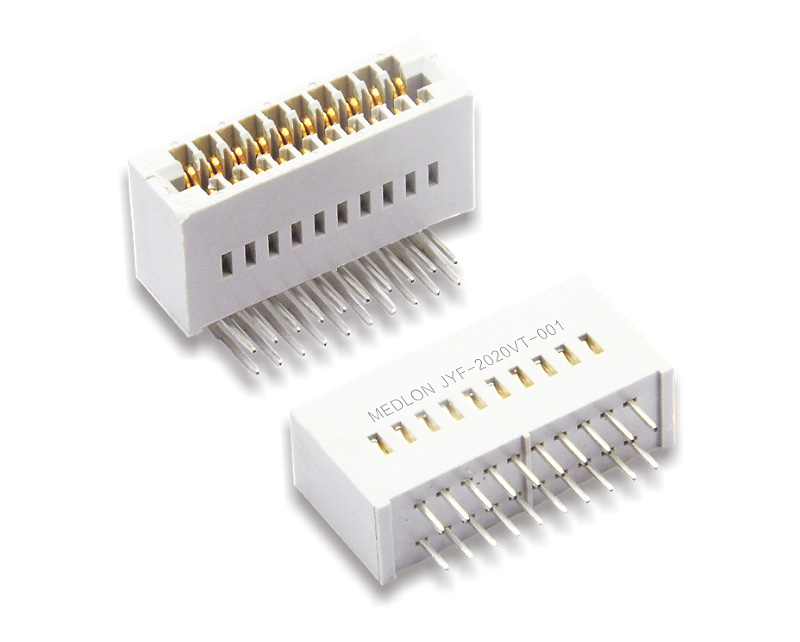

Product Name                                                                                                                                   Female,Vertical,20PIN
Power blade connetor  blade power connector powerblade connector healthy connector mass health connector wire connector ma health connector battery terminal connector

Online Inquiry

Product Name

Female,Vertical,20PIN

Selected by customer

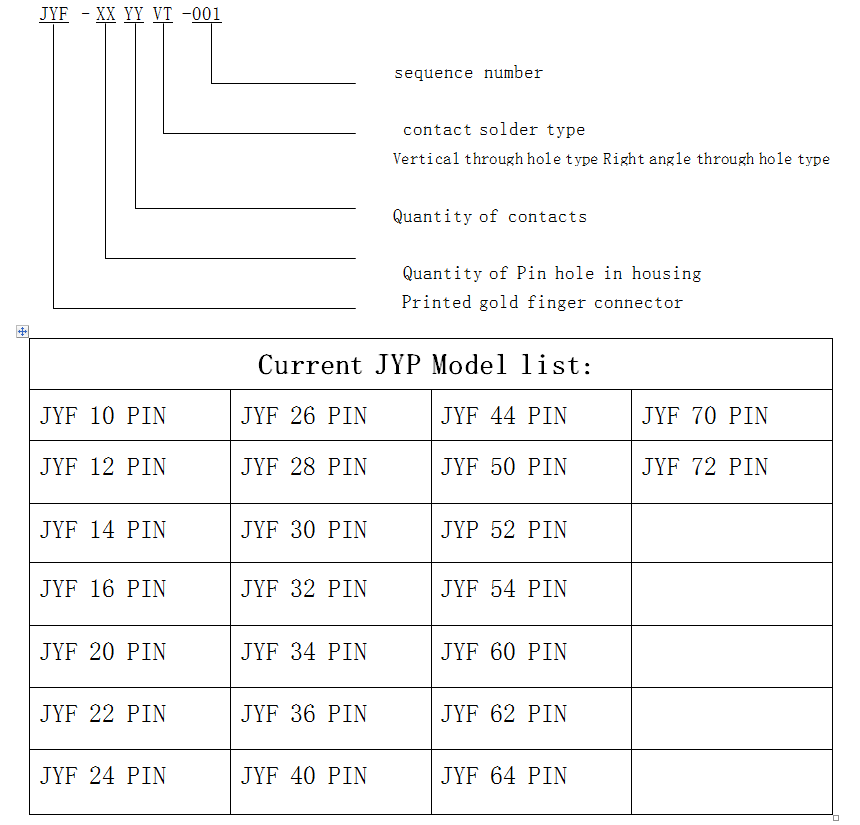

JYF-20XXVT-00N

Quantity of Pin hole in the housing is 20,10PIN at A row & B row, Customer could choose the number and the position of contacts,A&B row has 1-10 Pins from left to right, The distance between two rows contact tail is 5.08mm

Product Application

Contact Pitch is 2.54mm, contact tail: through hole, mating with 1.60±0.20mm thickness PCB gold finger, used in the PCB connection of communications equipment, precision instrument，computer etc.

Work environment

Operating Temperature ：-55℃~+125℃（Include 40℃ temperature rise）

Relative Humidity ：40℃，90-95%

Air pressure ：40KPa

Vibration：10~500Hz， 100m/s²

Shock： Acceleration300m/ s²

Mian Technical Parameters

Rated Current：3A（20℃）

Contact Resistance：≤25mΩ

lnsulation Resistance：≥1000MΩ

Voltage Rating ：300V AC

Withstand Voltage：750V
