1. Materials: Rubber shell: thermoplastic high-temperature resistant plastic, U94-V0, black:

Terminal: copper alloy;

Nut: stainless steel;

2. Electroplating: gold is electroplated in the contact area, tin is electroplated in the welding area, and all nickel bottoms are formed;

3. Electrical performance requirements:

 AC rated current: 30A; DC rated current: 100A; Rated signal current: 1A;

AC terminal rated voltage: 420VAC; DC rated voltage: 72VDC; Signal rated voltage: 72VDC;

Contact resistance of AC terminal: 5mΩMax;

 Contact resistance of DC terminal: 1mΩ Max;

 Contact resistance of signal terminal: 30mΩ Max;

Insulation resistance: 1000mΩ Min;

4. The products meet the latest RoHS standards.

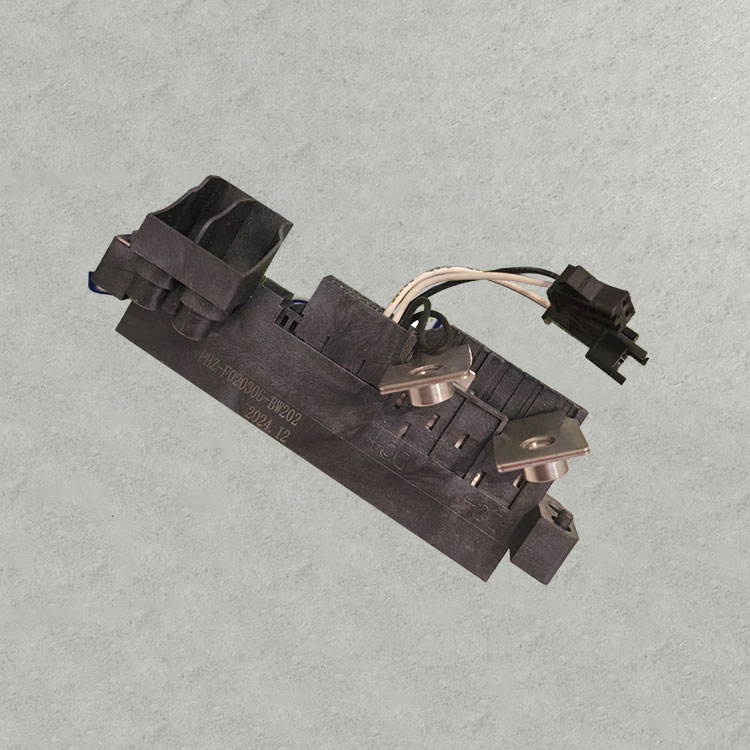

Name: High-power golden finger connector (AC, DC-M4 nut)

Model:PHZ-F020306-BW202
