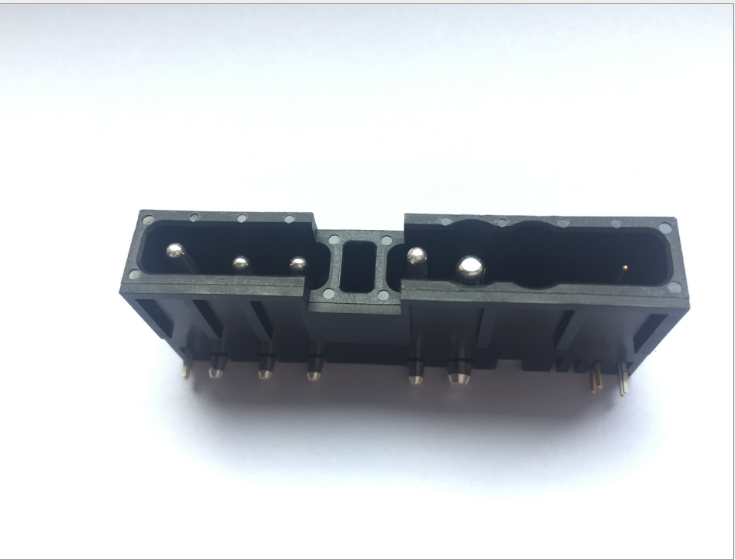

JDC series 12 Pin Connector Power Connector Product Information Product model JDC-12Z-01 Female Connector
JDC series 12 Pin Connector Power Connector

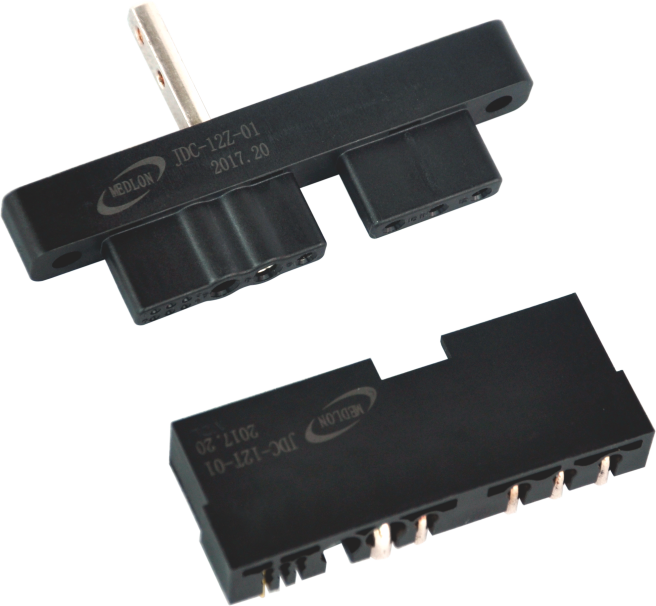

|Product model||JDC-12Z-01 Female Connector|
|Mechanical Life||500 times|
|Insulation Resisitance||≥3000MΩ (normal temperature) ; ≥100MΩ (damp and hot)|
|Housing Material||PET UL94V-0 Black|
|Rated Voltage||480V DC||220V DC||480V DC|
|Withstand Voltage||500V DC||1000V DC|
|Surface Finish||Gold plated over nickel||Silver plated over nickel|
Sockets: Crimping (Y); 8# Socket: Screw thread ;
Pins: PCB Tail(B)
|Material||Pin,Jack||Brass or copper alloy|
|Crown Spring||Beryllium bronze|
|Working Temperature||-40℃ ~ +125℃|
1. Intelligence high frequency switching power supply, communication power supply, electric power,railway power supply,LED power.
2. UPS systems
3. Contravariant power
4. Drawer low-voltage cabinet etc.
