1. Material

A. Terminal: High performance copper alloy

B. Rubber shell: High temperature resistant thermoplastic UL94V-0， black

2. Electroplating:

A. Power terminal: gold-plated in the contact area, tin plated in the soldering area, nickel plated throughout the entire terminal

B. Signal terminals: Gold plated in the contact area, tin plated in the soldering area, and nickel plated throughout the entire terminal;

C. Fixed feet: integral nickel base matte tin;

3. Electrical performance requirements:

Rated voltage: power terminal 250Vac; Signal terminal 50Vac;

Rated current: power terminal 40A; signal terminal 2.5A: withstand voltage: 2500VDC power terminal 1 minute no breakdown: 1000VDC signal terminal 1 minute no breakdown Insulation resistance: 2000MEGOHMMIN power terminal: 2000MEGOHMMIN signal terminal; Contact resistance: power terminal ≤ 2m2; signal terminal ≤ 20m Ω; operating temperature: -40 ℃ TO+125 ℃

4. Mechanical performance requirements:

Plug and unplug lifespan: 250 times;

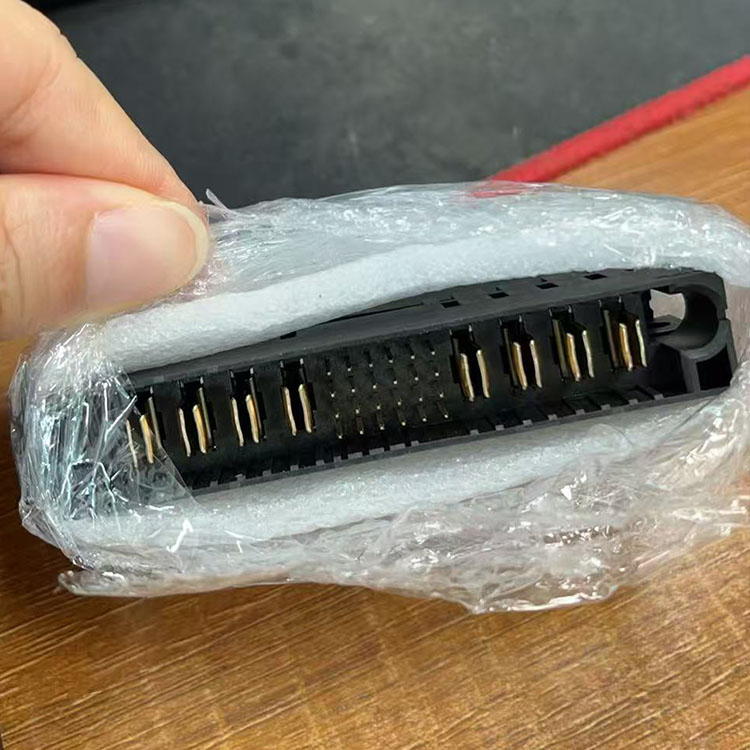

5. Packaging method: vacuum formed box packaging;

6. The product complies with the latest ROHS standard

7. Order part number: JYP-F2408B-RT47R
